Ultra Tugger
®
10 Cable Puller and Pulling Packages
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
25

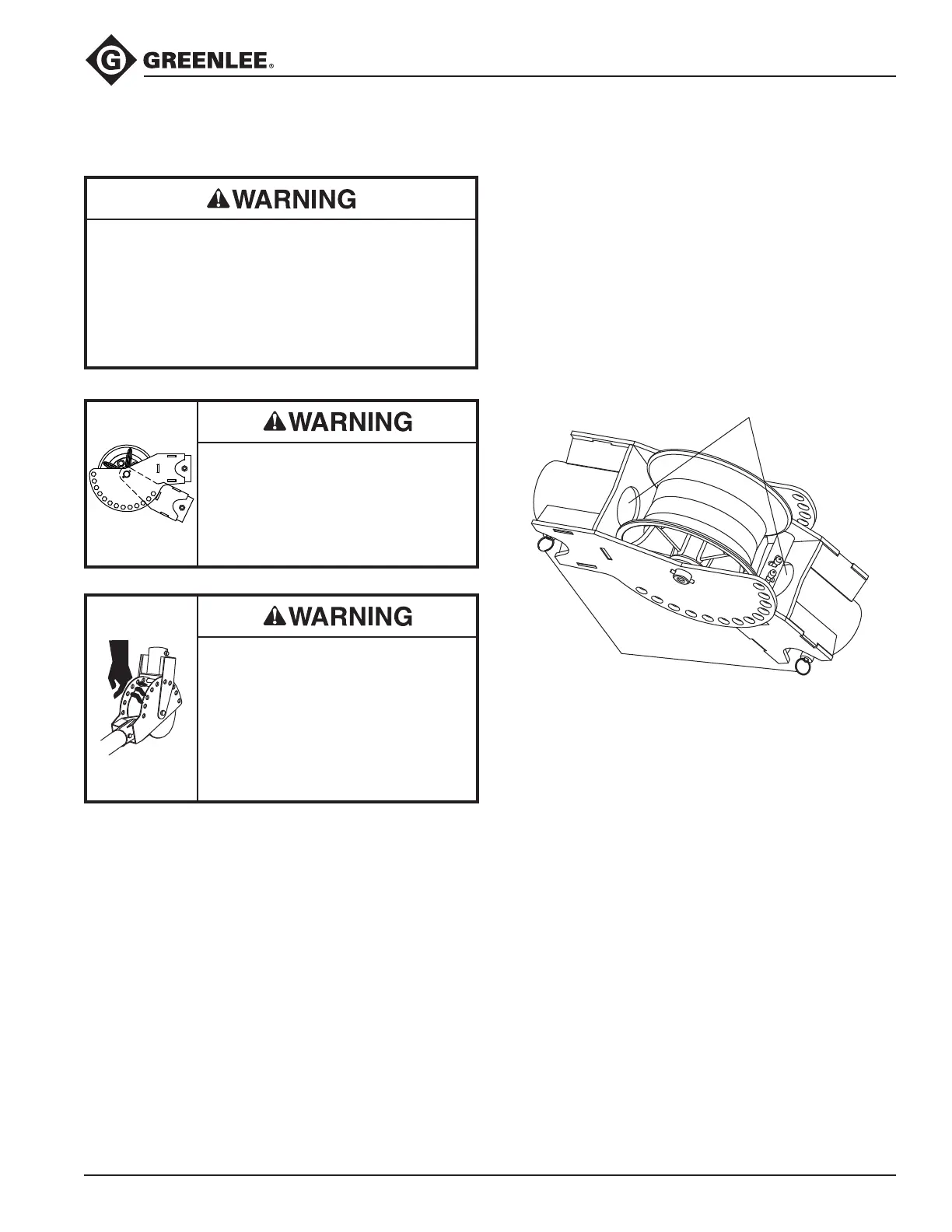

Boom Components
• Use only Greenlee supplied booms or straight 3"
diameter rigid steel conduit or Schedule 40 steel
pipe for the boom tubes.
• Do not use boom tubes longer than 3 meters (10').
Longer booms may bend or break.
Failure to observe this warning could result in severe
injury or death.
If the elbow/nose unit is disas-
sembled, reassemble unit as shown.
Improper setup will cause the elbow
unit to collapse.
Failure to observe this warning could
result in severe injury or death.
Shear point:
Never put ngers through holes
in boom components. Pivoting of
mating arts may cut off ngers.
Always keep elbow unit locked with
pivot pin except while adjusting.
Failure to observe this warning could
result in severe injury or death.
Use these boom tubes only:
• Boom tubes supplied with the UT10
• 3" rigid steel conduit (3 m or 10' maximum)
• 3" Schedule 40 pipe (3 m or 10' maximum)
If using 3" rigid conduit in place of the standard booms:
1. Insert the conduit while pulling out the detent rings.
2. Slide the conduit fully in and verify it is seated
through the sight holes.
3. Use 1/2"-13 screws (not supplied) in the weld nuts
to lock the conduit in place.
Sight Holes
Detent Rings
Boom Setup (cont’d)
To Next Page
