Textron Greenlee UT10 User Manual

Ultra Tugger
®
10 Cable Puller and Pulling Packages
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
22

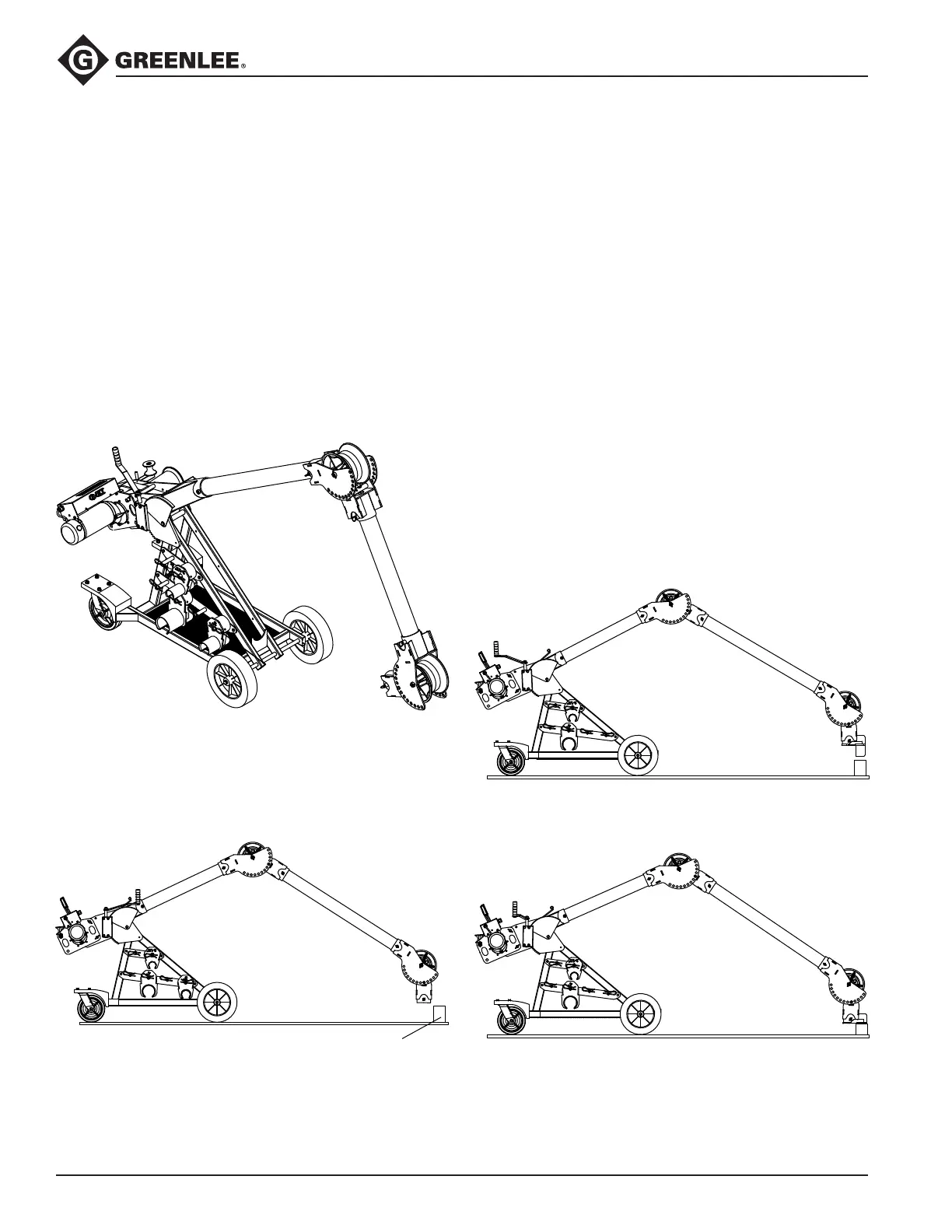

Boom Setup
Up Pull Starting from Teepee Position
1. Set the brakes.
2. Raise the forward boom as described under “Boom
Operation” until it is close to the angle desired for
the pull setup,
or
a. Lock the elbow detent pins in the fully inward
position.
b. Lower the boom (turn crank CW) until the nose
hits the oor.
c. Release the brakes and continue to lower the
boom while walking the carriage backwards
until the elbow is at the desired angle and lock it
in place.
Position Elbow to Desired Angle
3. Raise or lower the boom until the nose is just above
the conduit to be pulled from.
Conduit
Position Nose Higher than Conduit
To use slip-in couplings:
a. Insert the appropriate slip-in conduit adapter
coupling into the nose.
b. Pivot the nose until the coupling is aligned with
the conduit and lock in position.
c. Raise the boom until the bottom of the coupling
clears the conduit.
d. Release the brakes if not already released.
e. Roll the carriage forward until the coupling is
over the conduit and lower it into the conduit.
To use screw-on couplings:
a. Screw the appropriate screw-on adapter cou-
pling fully onto the conduit.
b. Pivot the nose until it is aligned with the cou-
pling and lock in position.
c. Raise the boom until the bottom of the coupling
clears the conduit.
d. Release the brakes if not already released.
e. Roll the carriage forward until the nose is over
the coupling, pull the detent ring, and lower the
nose onto the coupling.
Insert Conduit Adapter and Raise above Conduit
Lower into Conduit
