Boom Setup (cont’d)
Horizontal Pull
Horizontal pulls are essentially the same as an up pull or
a down pull.
• If the conduit is above the puller, follow the up pull
instructions.
• If the conduit is below the puller, follow the down pull
instructions.
The only difference is in the horizontal alignment of the
coupling with the conduit and using the carriage to walk
the coupling into the conduit (or the nose into the cou-
pling for the screw-on adapters).
Horizontal Pull in Underground Vault
Single Boom Pull
All of the previous boom setup instructions assume that
two booms are used. While using two booms can be
useful for working around obstructions, keeping angles
over sheaves to a minimum, and pulling out extra tail,
it is not always necessary. A single 3', 4', or 3" rigid
conduit up to 10' long can be used to keep setups even
simpler.

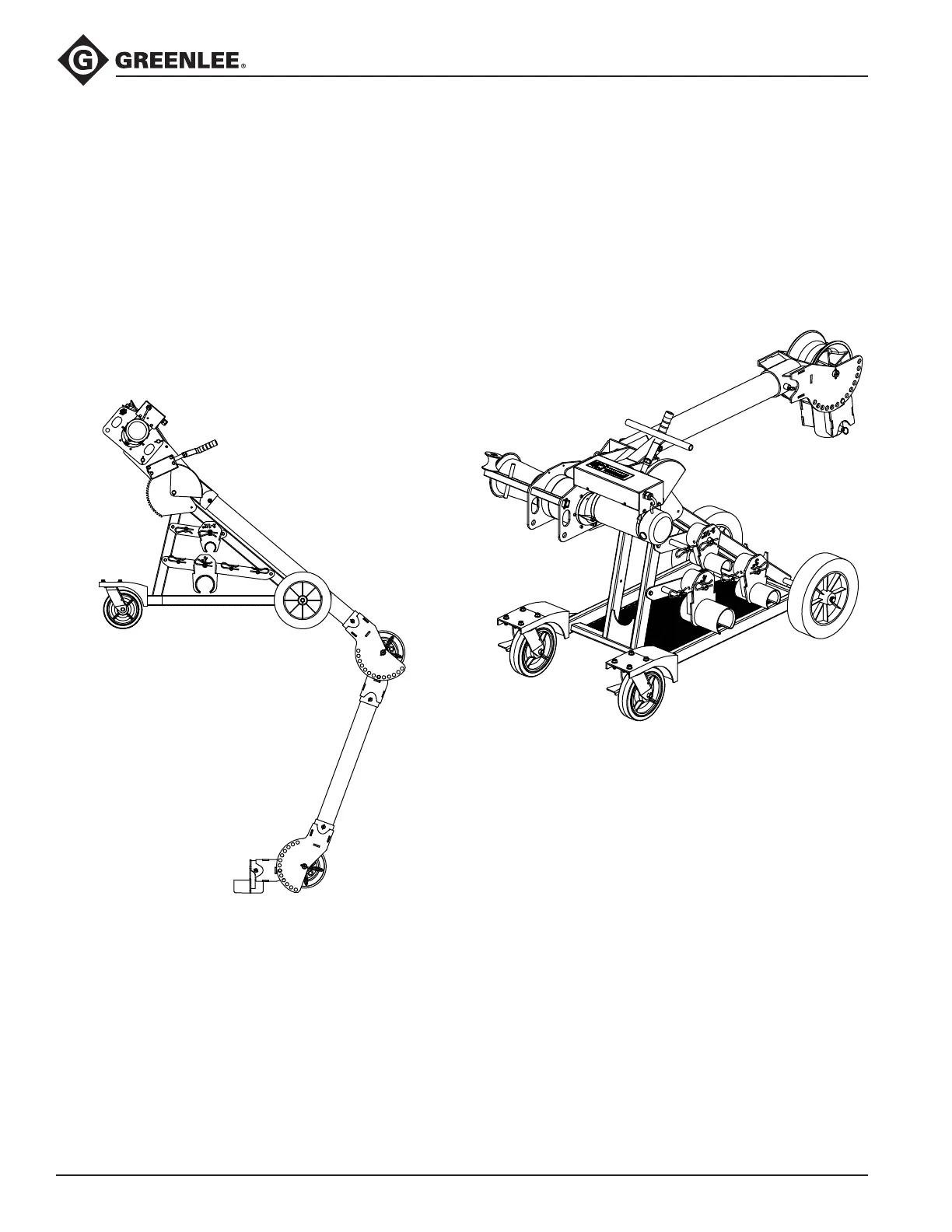

Single Boom Setup
