Textron Jacobsen Pro12 DFS User Manual

33
2
3
10
1
4
6
6
6
6
6
6
6
6
16
7
7
5
5
5
5
8
8
8
8
9
9
12
12
11
17
13
14
18
15

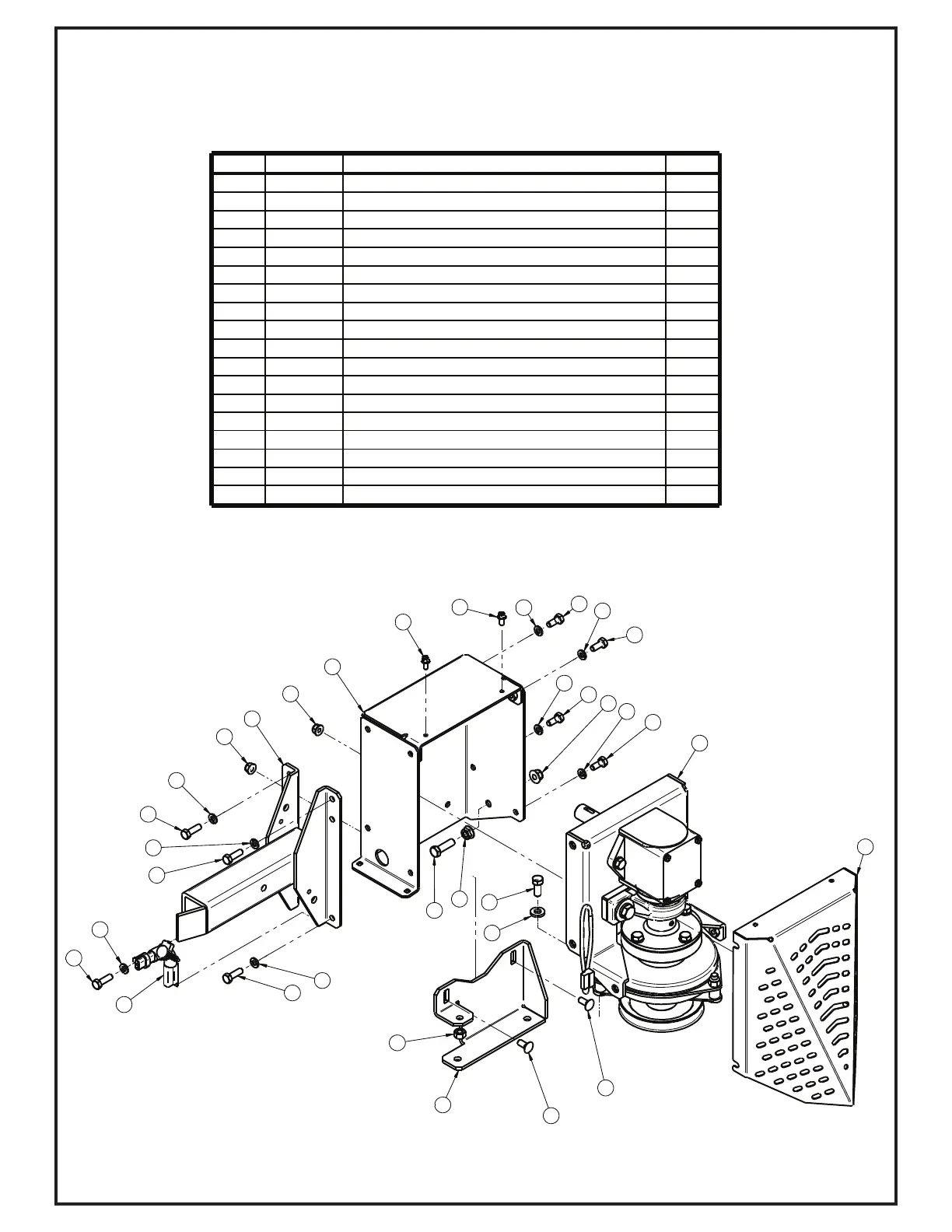

A2039_01 Base Drive Assembly
Item # Part # Desc. Qty.
1 B0938 Drive Guard 1
2 A2032 Drive Arm Assy 1
3 A2035_01 Housing Mnt Assy 1
4 B0942_01 Anti-Rotation Brkt 1
5 K1153 HHCS 5/16"-18 x 3/4" 4
6 K0043 Lock Washer 5/16" 8
7 K0353 HWHTCS 1/4"-20 x 1/2" 2
8 K1154 HHCS 5/16"-18 x 1" 4
9 K2516 Ny-Flange Lock Nut 5/16"-18 2
10 A2060_01 Mounted Drive Assy 1
11 P0271 Quick Connect Wire Harness 1
12 K1142 5/16"-18 x 3/4" Carraige Bolt 2
13 K0509 3/8"-16 x 1-1/4" GR8 HHCS 1
14 K1215 Flange Nut 3/8"-16 1
15 K2038 Ny-Flange Lock Nut 3/8"-16 1
16 K0343 HHCS 3/8"-16 x 1-1/8" GR8 1
17 K1477 Flat Washer / 3/8" / .406 ID x .812 OD x .125 Thk 1
18 K1476 Reverse Lock Nut / 3/8"-16 Grade C 1
