Textron Jacobsen Pro12 DFS User Manual

34

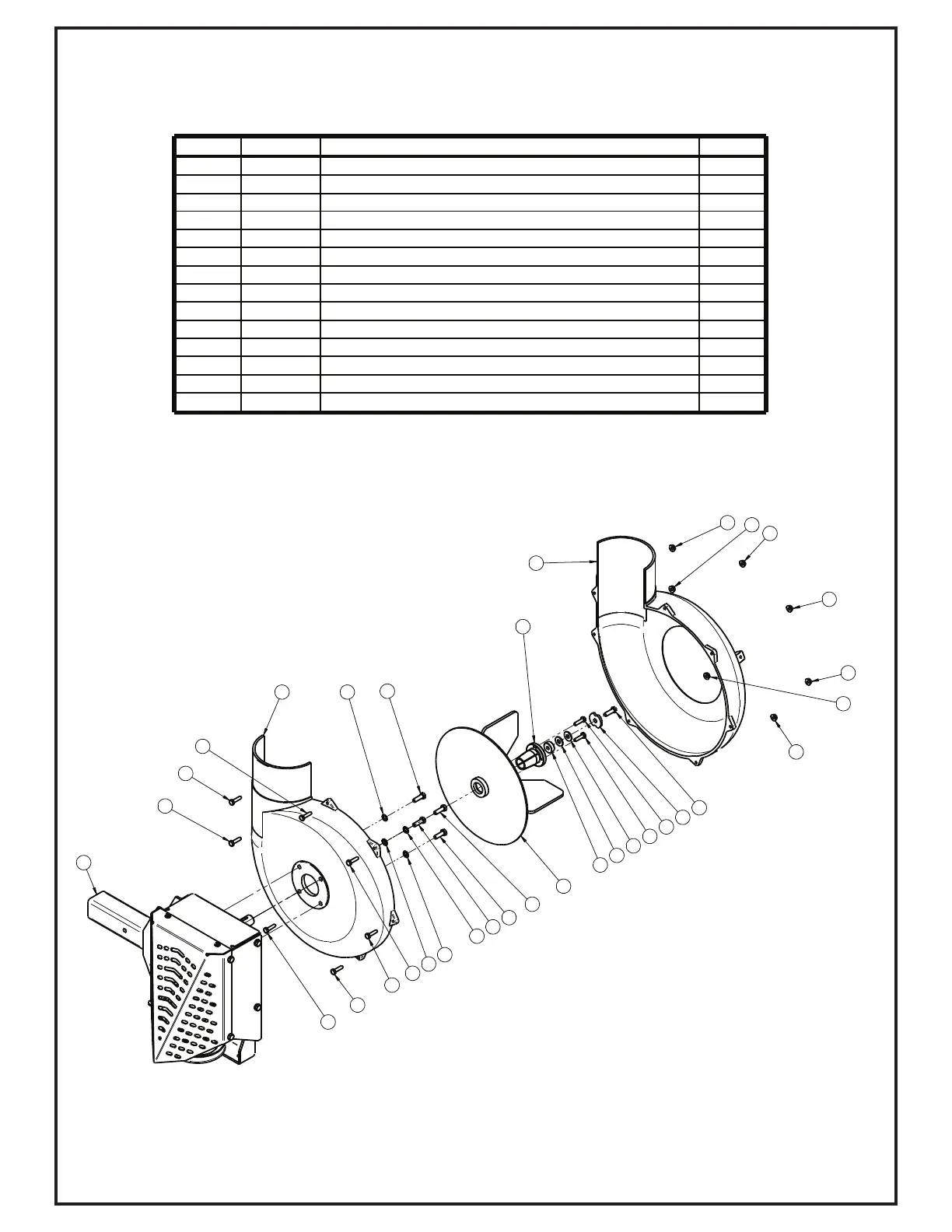

A2061_01 Drive Assembly / 4 Blade Impeller
1
8
12
11
6
6
6
6
2
3
13
13
13
13
13
13
13
14
14
14
14
14
14
14
7
7
7
7
4
4
9
5
10
10
Item # Part # Desc. Qty.
1 A0645 4-Blade Impeller Assy 1
2 K0284 Double Indented Washer 3/8" / 1.375 OD x .380 ID x .179 T 1
3 K1465 HHCS 5/16"-24 x 1-1/2" GR8 1
4 K1225 HHCS 1/4"-20 X 1" GR8 2
5 S0159 Spacer Bushing .938 OD x .325 ID x .375 T 1
6 K0044 I/T Tooth Lock Washer 5/16" 4
7 K1154 HHCS 5/16"-18 x 1" 4
8 A2039_01 Drive Assy / Base 1
9 S0157 Taperlock Bushing 7/8" 1
10 K0042 Flat Washer 5/16" / .875 OD x .380 ID x .075 T 2
11 E4052F Blower Hsg Front 1
12 E4052B Blower Hsg Back 1
13 K1125 HHCS 1/4"-20 X 1" GR2 7
14 K1126 Flange Nut 1/4"-20 7
