Teze TW-EOR48 - Connection and Wiring Guide; Three-Phase Output Connection

To Next Page

To Previous Page

Add: Building A, Xinlida Industrial Park, Junzibu Village,Guanlan Street, Longhua District ,Shenzhen,

Guangdong

TEL :0755-23225527 FAX:0755-23225537

5. Connection

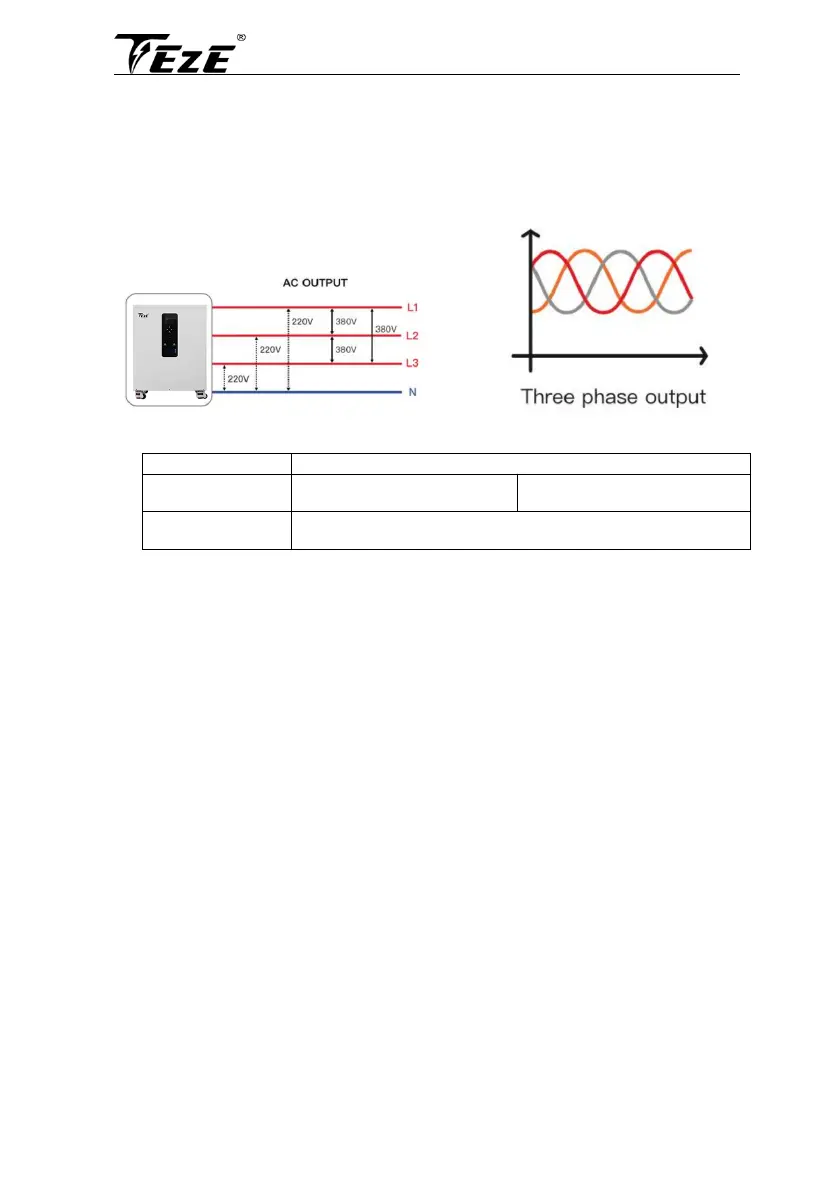

5.1 Three-phase output

Items Description

Applicable Model

TEZE-AO-MB51400-380VAC-

10KW

TEZE-AO-MB51300-380VAC-10KW

Output Voltage

Range (L-N)

200~240Vac, 230Vac defa

Notice：

Users can change the output phase mode and output voltage by setup menu. Please read the chapter

6.1.2 Setting.

The output voltage corresponds to item [38] of the parameter setting, and the output phase voltage

can be set within the range of 200V to 240V.
