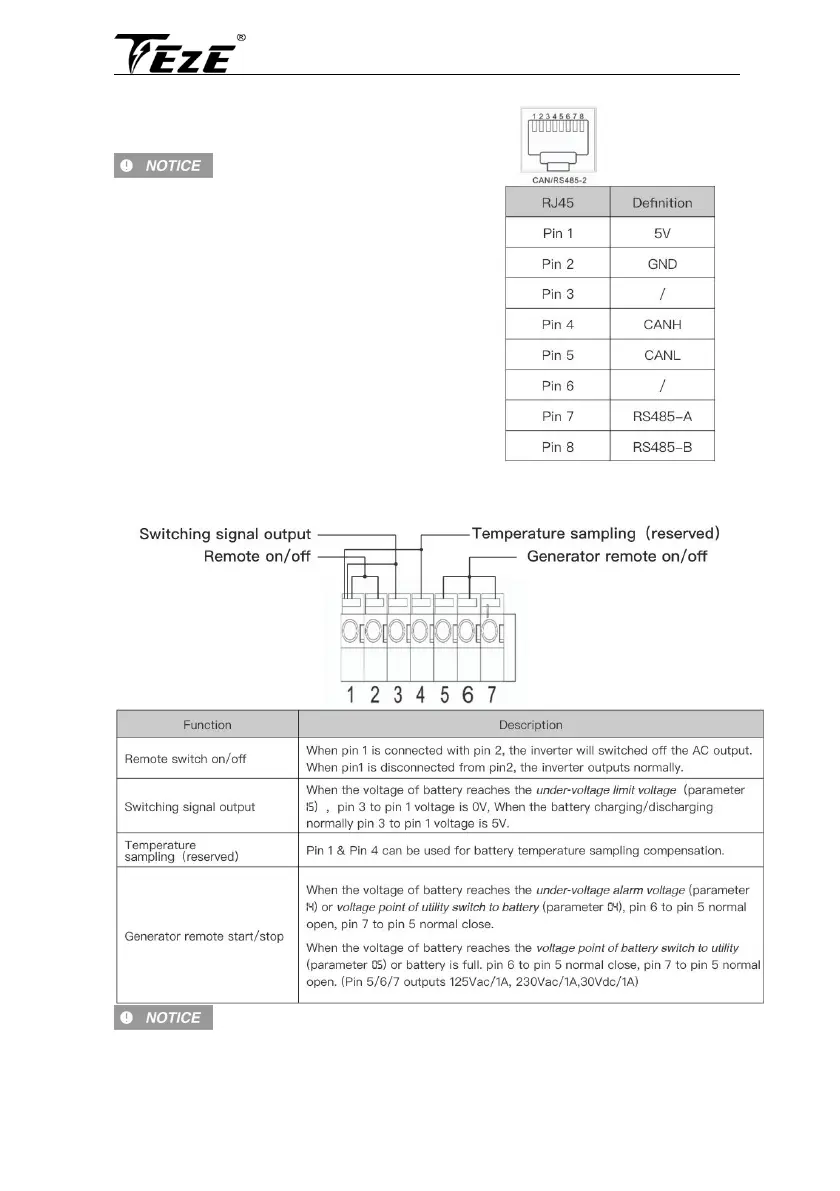

7.2.3 CAN/RS485-2 Port

The RS485-2 port is used to connect to the BMS of Li ion battery.

If you use a normal RJ45 network cable, please check the pin

assignment, pin 1 & pin 2 usually need to be cut off for

normal use.

7.2.4 Dry contact

Dry contact port with 4 functions: 1. Remote switch on/off; 2. Switching signal output; 3. Battery

temperature sampling; 4. Generator remote start/ stop

If you need to use the remote start/stop function of the generator with dry contact, ensure that the

generator has ATS and supports remote start/stop.
