4.6.5.2 RAC Notebook Page ’Data Parameter’
The notebook page ’Data Parameter’ (see Fig. 4−101) of the tool ’Replay Raw Data Send Asterix
Data’ is the same as the corresponding notebook page of the tool ’Replay Raw Data Send Raw Data’
(refer to section 4.6.4.2). The only additional option is the check to enable or disable the decomposi-
tion mode. The meaning of the decomposition mode is explained in section 4.6.5.1.2 .

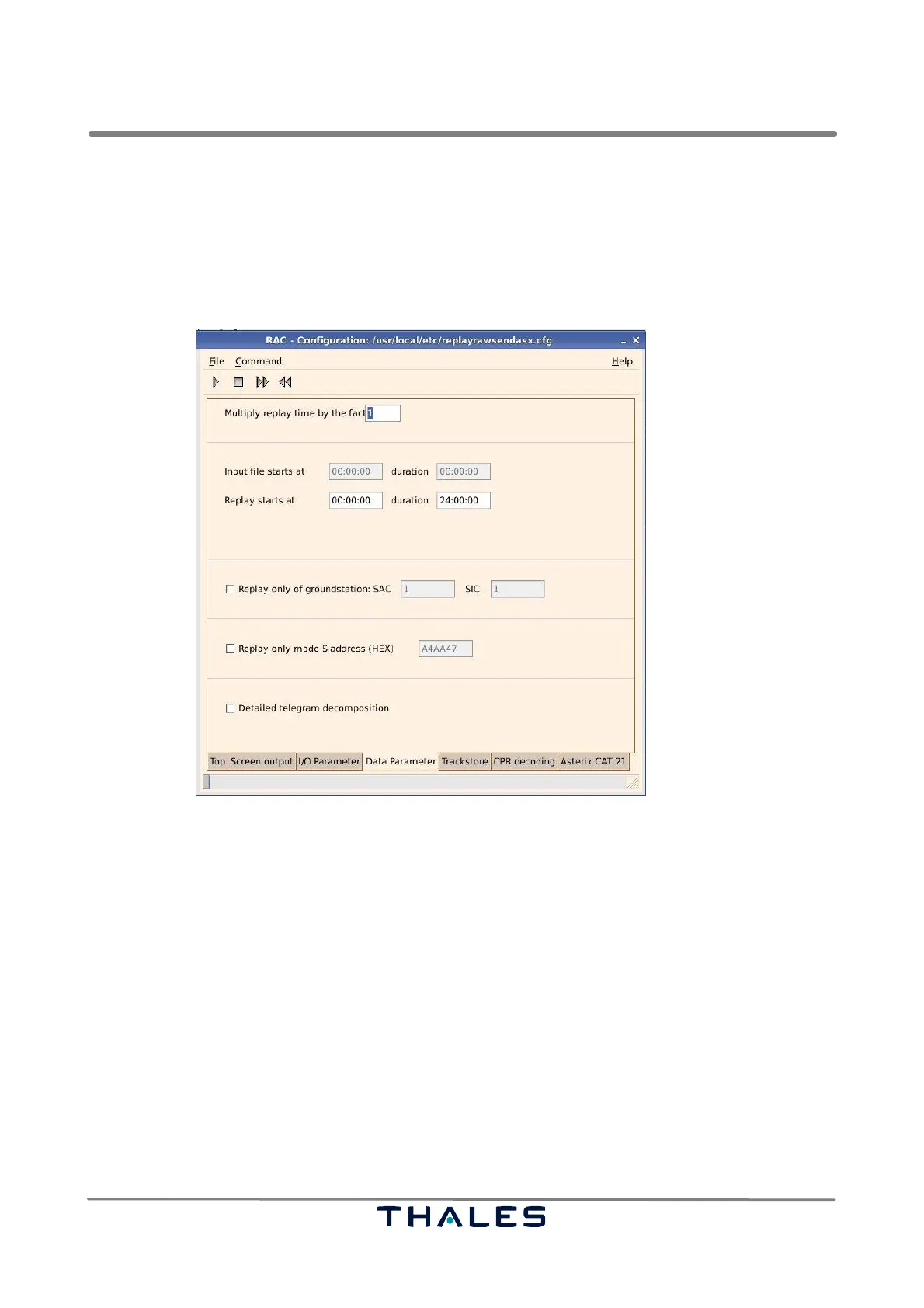

Fig. 4−101 RAC, page ’Data Parameter’ (example)
4.6.5.3 RAC Notebook Page ’Trackstore’
The ’Replay Raw Data Send Asterix Data’ tool needs a trackstore to store the information of target
telegrams. It is necessary to keep e.g. position and velocity information for a target as long as the
corresponding information is considered to be valid or is updated by the input of another telegram.
The following information about trackstore data is configurable in the notebook page ’Trackstore’
(see Fig. 4−102):
S Size of the trackstore: There is a drop down menu to select the size of the trackstore, i.e. the num-
ber of targets, the trackstore must be able to store. The size must always be a prime for tool internal
reasons.
S Maximal age of a target (in seconds) in the trackstore since its last update: If time has passed
this age, then the target is removed from trackstore.
