EX-TRAFIRE
®
45SD
Operator Manual, Revision T-53-22

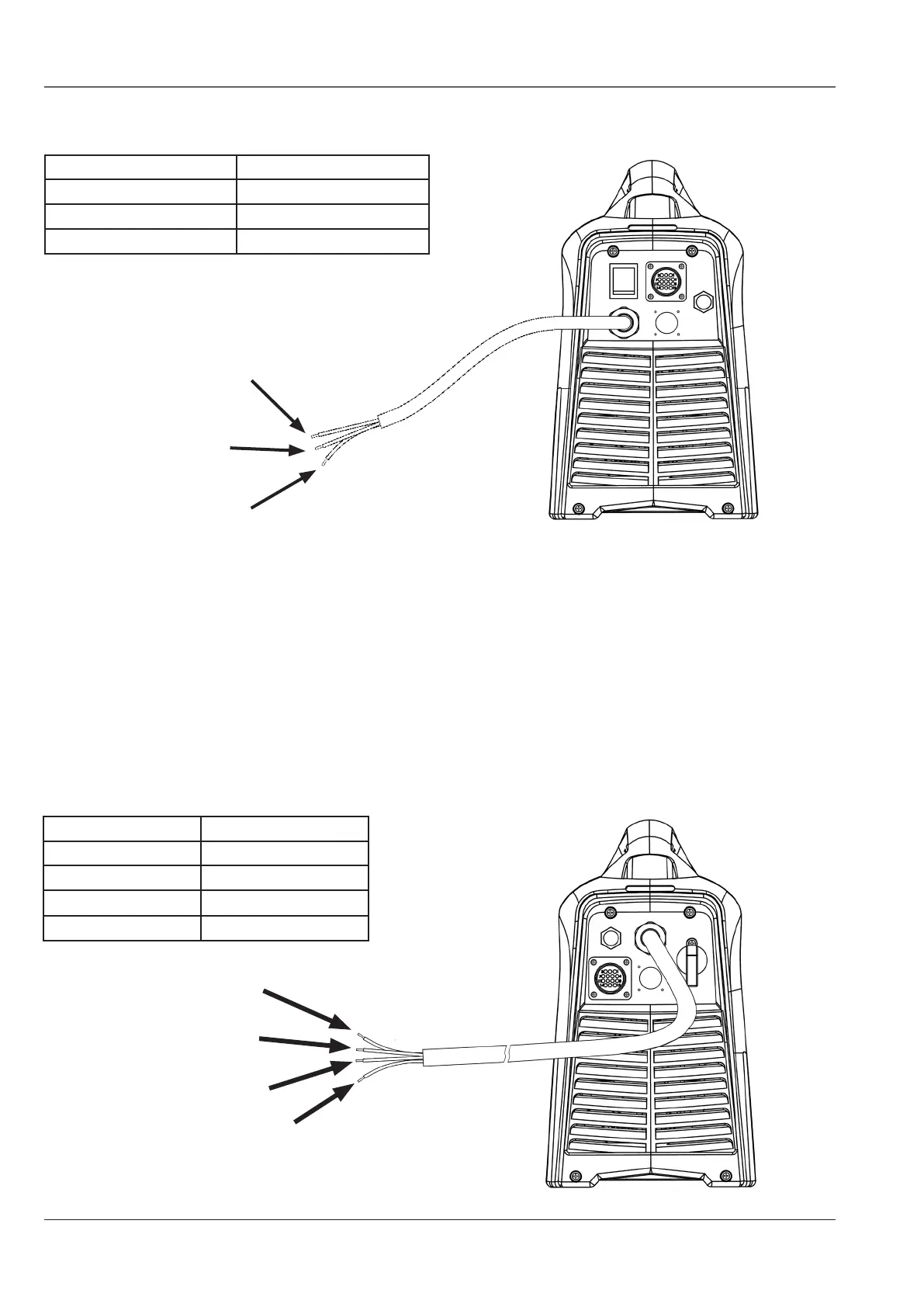

Installation of single-phase mains power lead
Three-phase mains power lead
CE models are fitted with a 4 wire 1�5 mm
2
mains power lead� To operate the EX-TRAFIRE
®
45SD, use
a plug that complies with national and local codes of practice� A certified electrician or competent
person should connect the mains power lead to the plug�
Installation of three-phase mains power lead
Green-Yellow
Black
Grey
Brown
CE units
L1 Black (U)
L2 Brown (V)
L3 Grey (W)
Earth Green-Yellow
Green-Yellow
Black (Brown)
Blue
CE units
L Black (Brown)
N Blue
Earth Green-Yellow
