THERMACUT EX-TRAFIRE 45SD - FHT-EX 45 TTM Machine Torch Components

EX-TRAFIRE
®
45SD
Operator Manual, Revision T-5 6-61
Item Part No� DESCRIPTION
1 EX-2-301-001 Machine Torch Body Assembly FHT-EX
®
45TTM
1a EX-2-301-002 Machine Torch Body FHT-EX
®
45TTM
1b EX-5-304-001 Cap Sensor Replacement Kit with Screws / Machine Torch
1c EX-5-306-002 Torch Mounting Sleeve (incl� 3 screws)
2 EX-2-352-001 FHT-EX
®
45TTM Machine Torch Lead Replacement Kit 5m Lead/TCS13
2 EX-2-354-001 FHT-EX
®
45TTM Machine Torch Lead Replacement 8m Lead/TCS13
2 EX-2-357-001 FHT-EX
®
45TTM Machine Torch Lead Replacement 15m Lead/TCS13
3 EX-5-318-001 TCS Plug Spring Strain Relief
4 EX-0-325-015 TCS Clam Shell Screw Kit (incl� 4 screws)
5 EX-0-325-002 TCS Clam Shell Upper
6 EX-0-325-001 TCS Clam Shell Lower
7 EX-0-325-010 Retaining Ring (Outer circlip ring)
8 EX-0-325-009 O-Ring (fitted in the TCS plug)
9 EX-0-325-005 Male Crimp Pin for TCS Plug
10 EX-0-323-001 TCS13 Plug Body
11 EX-5-317-021 Machine Torch Strain Relief
12 EX-2-306-001 FHT-EX
®
45TTM Standard Mounting Tube w/o Rack
13 EX-5-431-050 O-Ring (fitted on the torch body)
14 EX-5-372-005 Torch Mounting Screws Kit (incl� 3 screws)
15 EX-5-372-010 Cathode Mounting Kit
16 EX-0-321-003 Latch w/Key Assembly
FHT-EX
®

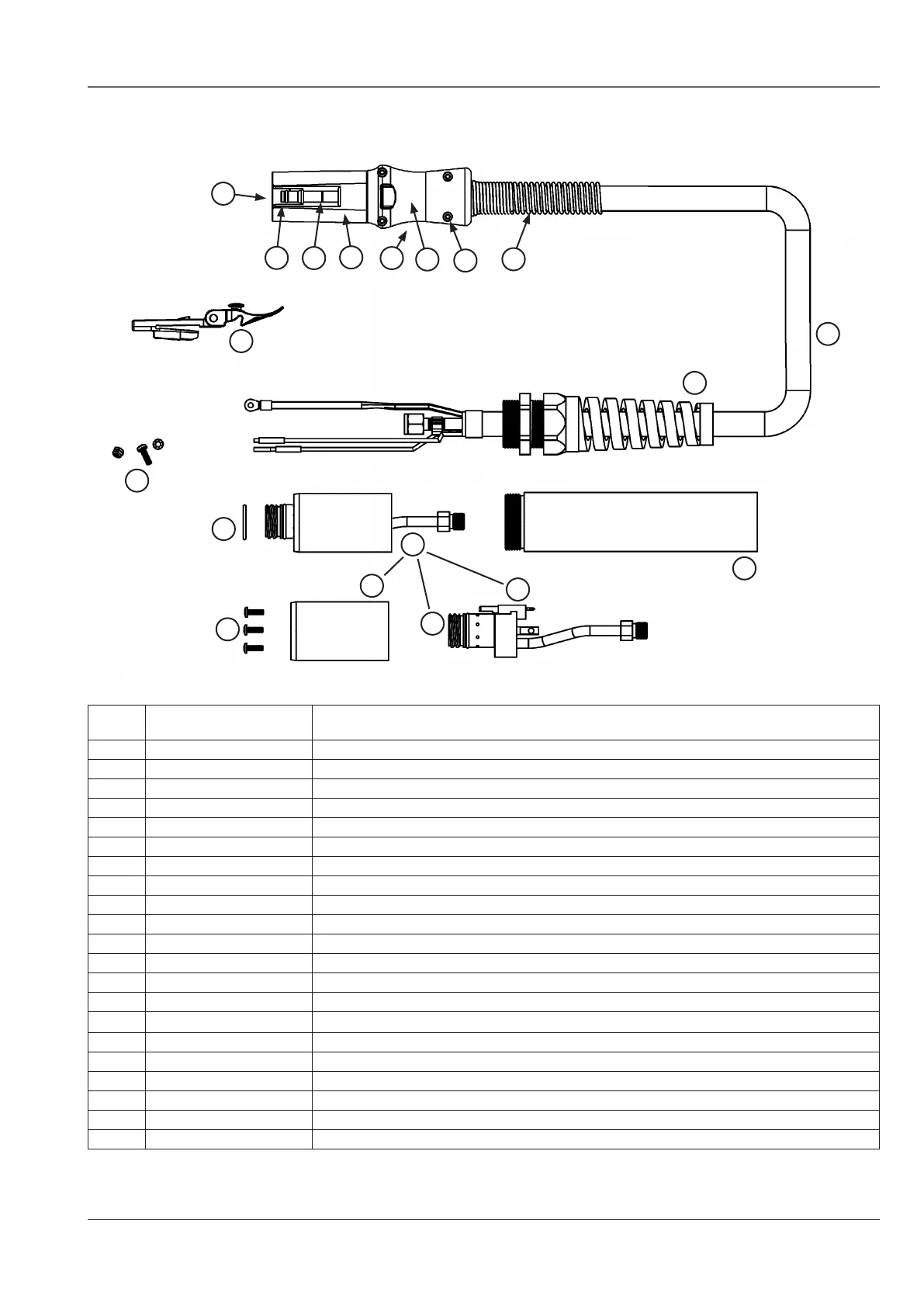

45TTM Machine Torch Components
