EX-TRAFIRE
®
45SD
Operator Manual, Revision T-54-36
OPERATION

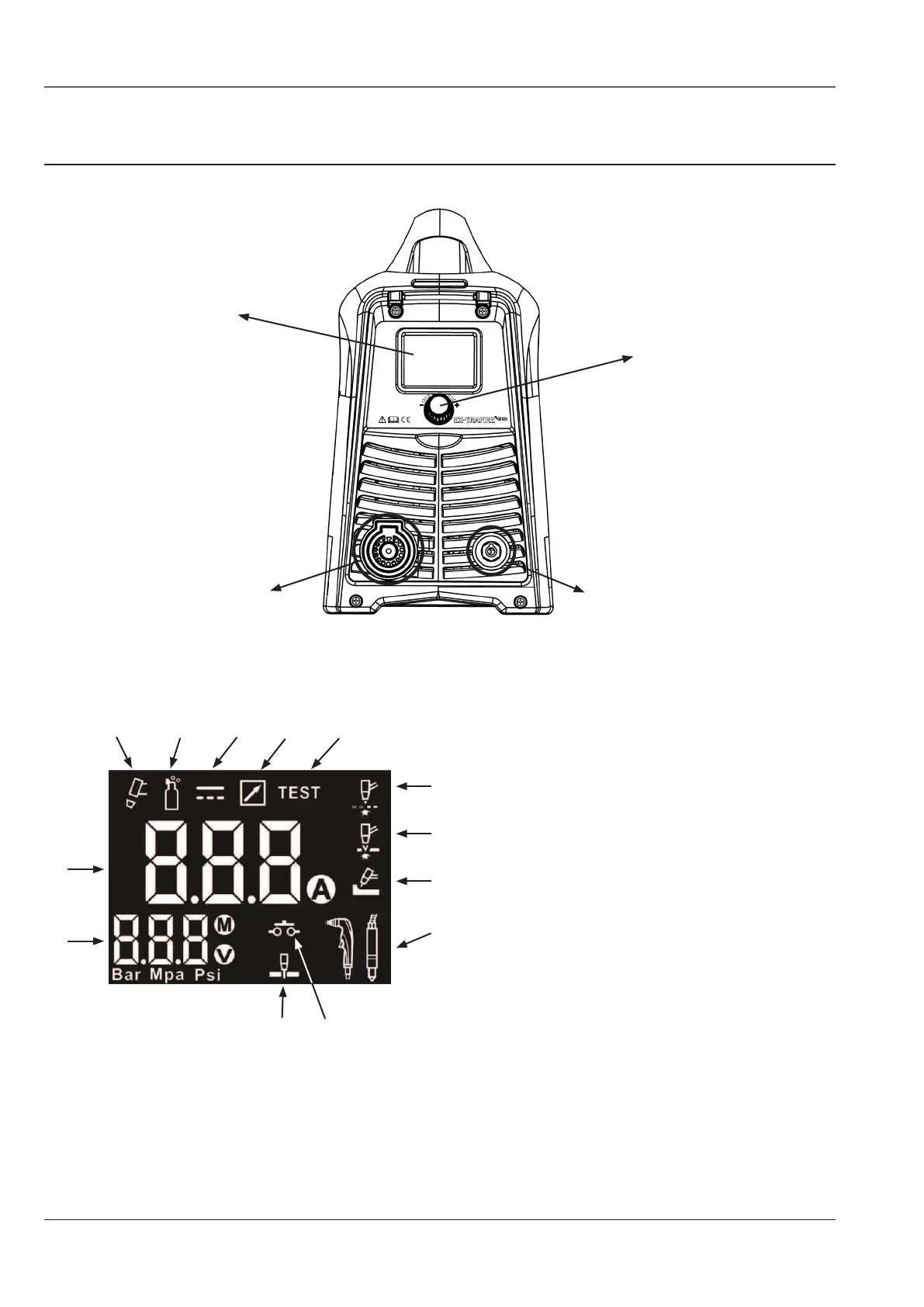

Front view
LCD display details
Work clamp connectorTorch connector
1� Indicates retaining cap is loose or not
tightened�
2� Indicates gas supply
3� The power supply is working�
4� Test mode�
5� Grid cutting mode�
6� Normal cutting mode�
7� Gouging mode�
8� Torch type�
9� Indicates pressing of torch trigger or
connection of pins No� 3, 4 in the CNC
connector�
10� Indicates arc transfer�
11� Cutting parameters�
(air pressure, output voltage, the
detected length of torch)
12� Cutting current� (Amperage)
13� Remote control *
1 2 3
5
6
7
8
10
11
12
Multifunction knob
It is used to cycle through
two menu’s and to set
the cutting parameters�
LCD
It displays machine status
(such as the cutting current, air
pressure, cutting mode, etc)�
9
4
* Note:
Remote control is not available for this power supply�
13
