THERMACUT EX-TRAFIRE 45SD - FHT-EX 45 TTM Machine Torch Consumables

EX-TRAFIRE
®
45SD
Operator Manual, Revision T-56-62
FHT-EX
®
45TTM Machine Torch Consumables

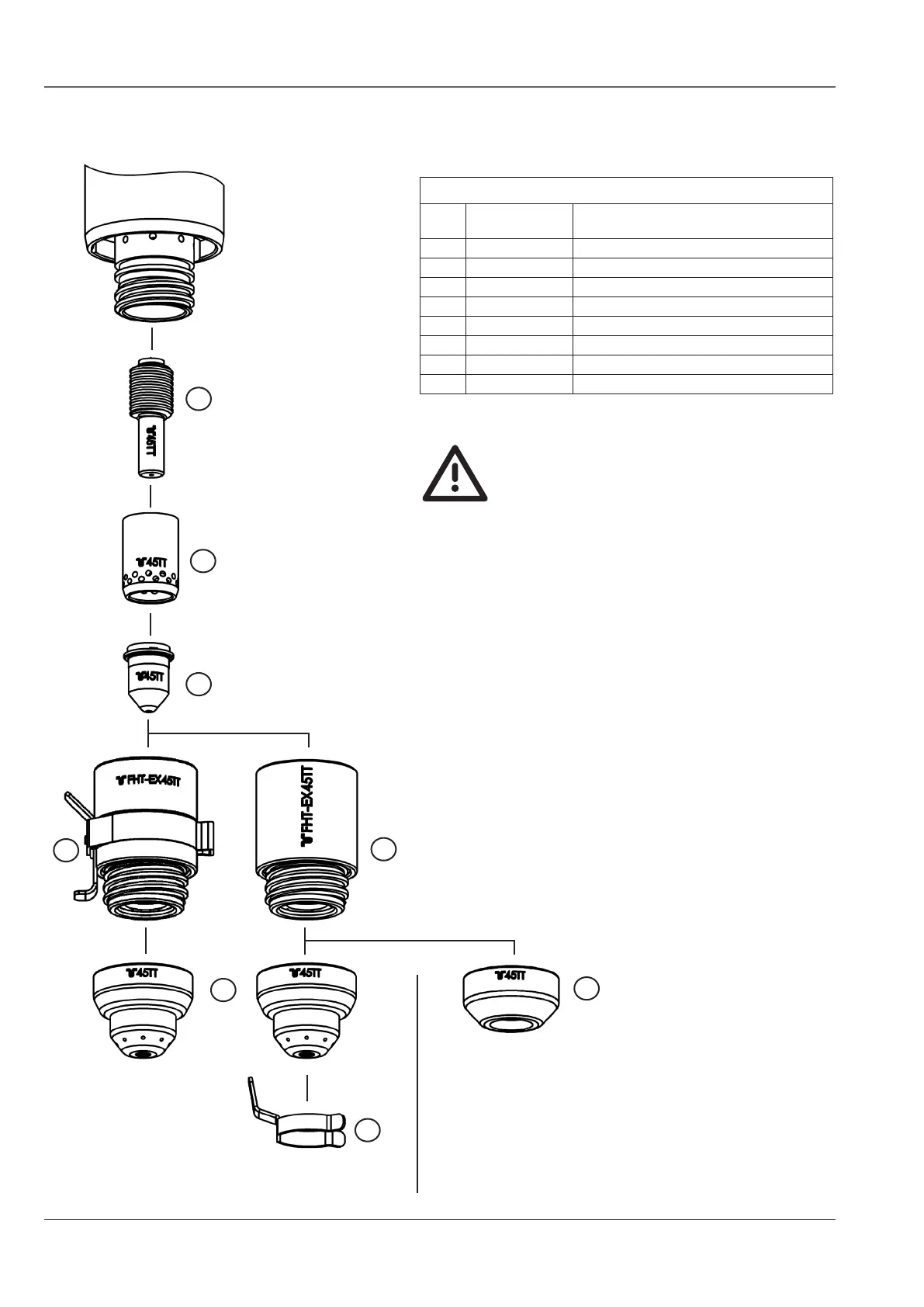

Machine Torch Consumables Configuration 45 A
Item Part No� DESCRIPTION
1 EX-2-401-201 Electrode
2 EX-2-404-201 Swirl Ring
3 EX-2-409-201 Nozzle
4 EX-2-415-202 Retaining Cap w/IHS Tab
5 EX-2-415-201 Retaining Cap
6 EX-2-421-201 Machine Shield
7 EX-2-428-011 IHS Ohmic Clip
8 EX-2-423-211 Deflector
* When a torch height controller is installed
use an IHS (Initial Height Sensing) ohmic
clip or Retaining Cap with IHS Tab�
Shielded
configuration
Unshielded
configuration
7*
1
2
3
4*
6
8
5
