THERMACUT EX-TRAFIRE 45SD - Rear View, Turn on; Rear Panel Detail

EX-TRAFIRE
®
45SD
Operator Manual, Revision T-5 4-39

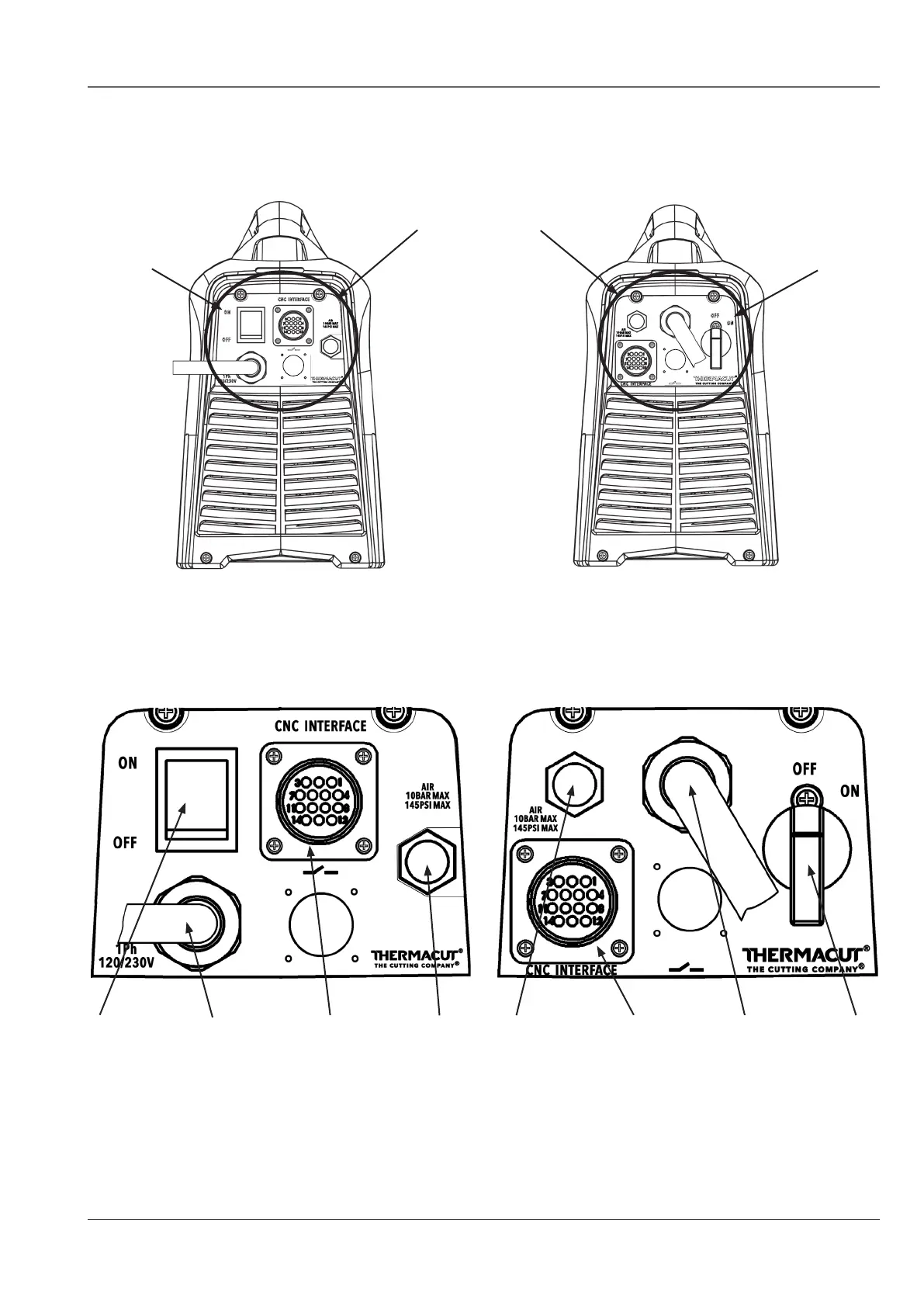

Rear panel detail
Rear view, Turn ON
45SD - Single phase 45SD - Three phase
Rear panel
Switch ON
Switch ON
45SD - Single phase 45SD - Three phase
1� Power supply switch
2� Mains power lead
3� CNC interface connector
4� Gas supply input fitting G1/4” Female
1 2
3
4 34 2
1
