EX-TRAFIRE
®
45SD
Operator Manual, Revision T-5 3-31

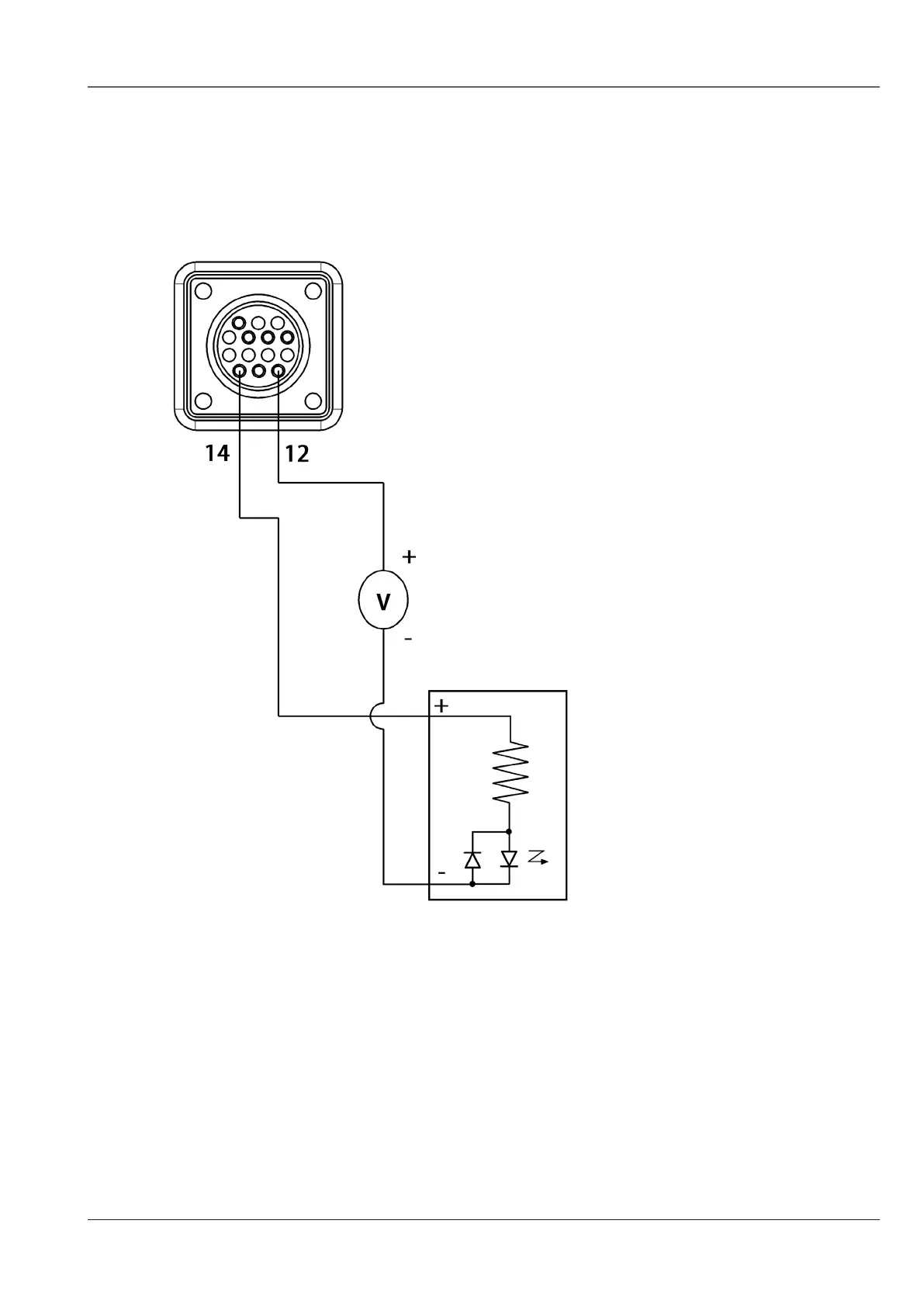

Activating an industrial isolated module
with an external power supply
Notes:
1� Isolated input module,
provided by the user�
2� 24 VDC power supply to be
provided by the user�
ISOLATED INPUT
MODULE�
Installation of the machine interface cable must be performed by a certified electrician or
competent person�
To install a machine interface cable:
1� Turn OFF the power and disconnect the power cord�
2� Remove the machine interface receptacle’s cover from the rear of the power supply�
3� Connect the interfece cable to the power supply�
