THERMACUT EX-TRAFIRE 45SD - FHT-EX 45 TTH Hand Torch Consumables

EX-TRAFIRE
®
45SD
Operator Manual, Revision T-5 6-59
FHT-EX
®
45TTH Hand Torch Consumables

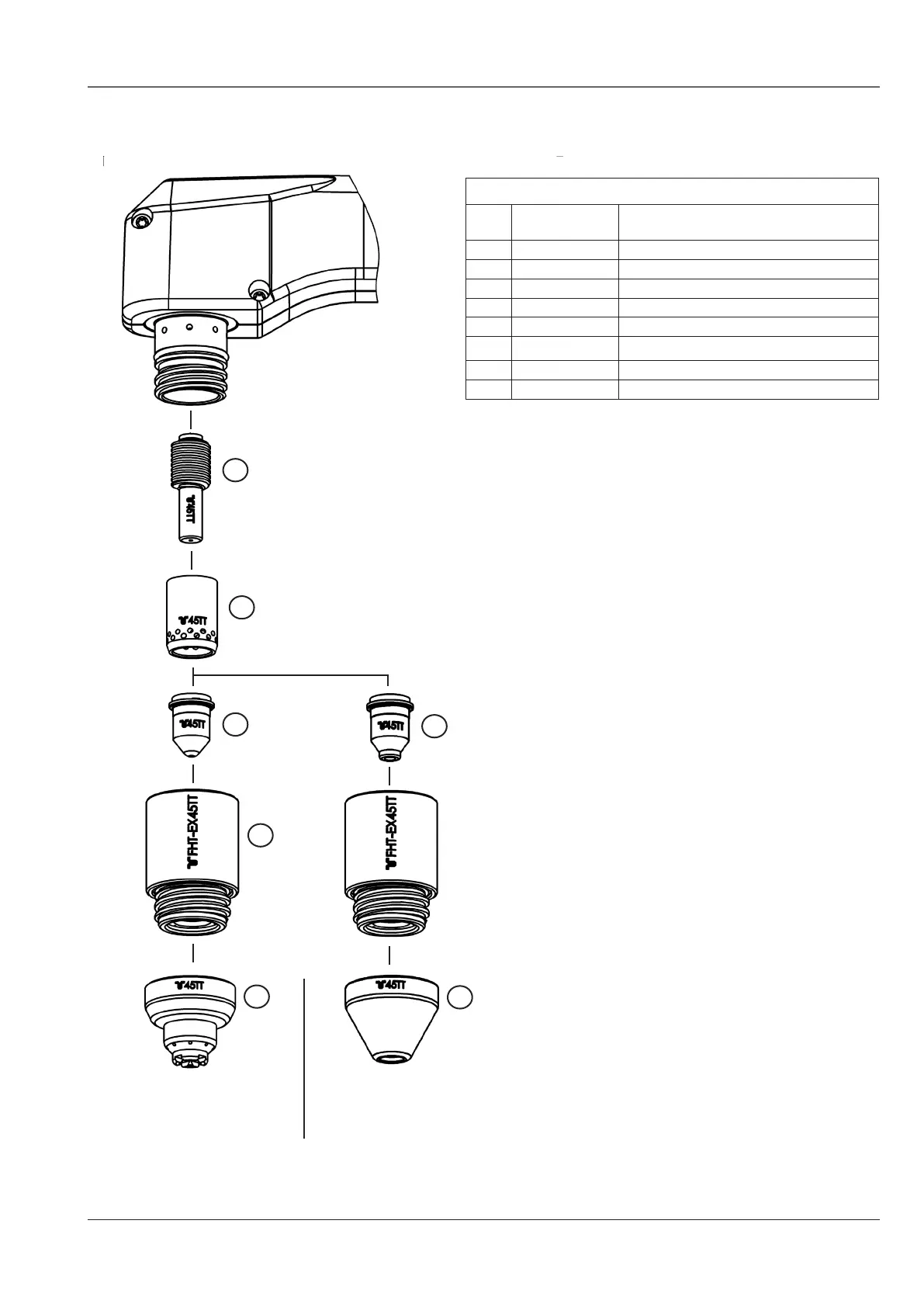

Hand Torch Consumables Configuration 45 A
Item Part No� DESCRIPTION
1 EX-2-401-201 Electrode
2 EX-2-404-201 Swirl Ring
3 EX-2-409-201 Nozzle
4 EX-2-415-201 Retaining Cap
5 EX-2-419-201 Hand (contact) Shield
6 EX-2-409-202 Gouging Nozzle
7 EX-2-419-202 Gouging Shield
Shielded
configuration
Gouging
configuration
1
2
3
7
4
5
6
