EX-TRAFIRE
®
45SD
Operator Manual, Revision T-5 3-33

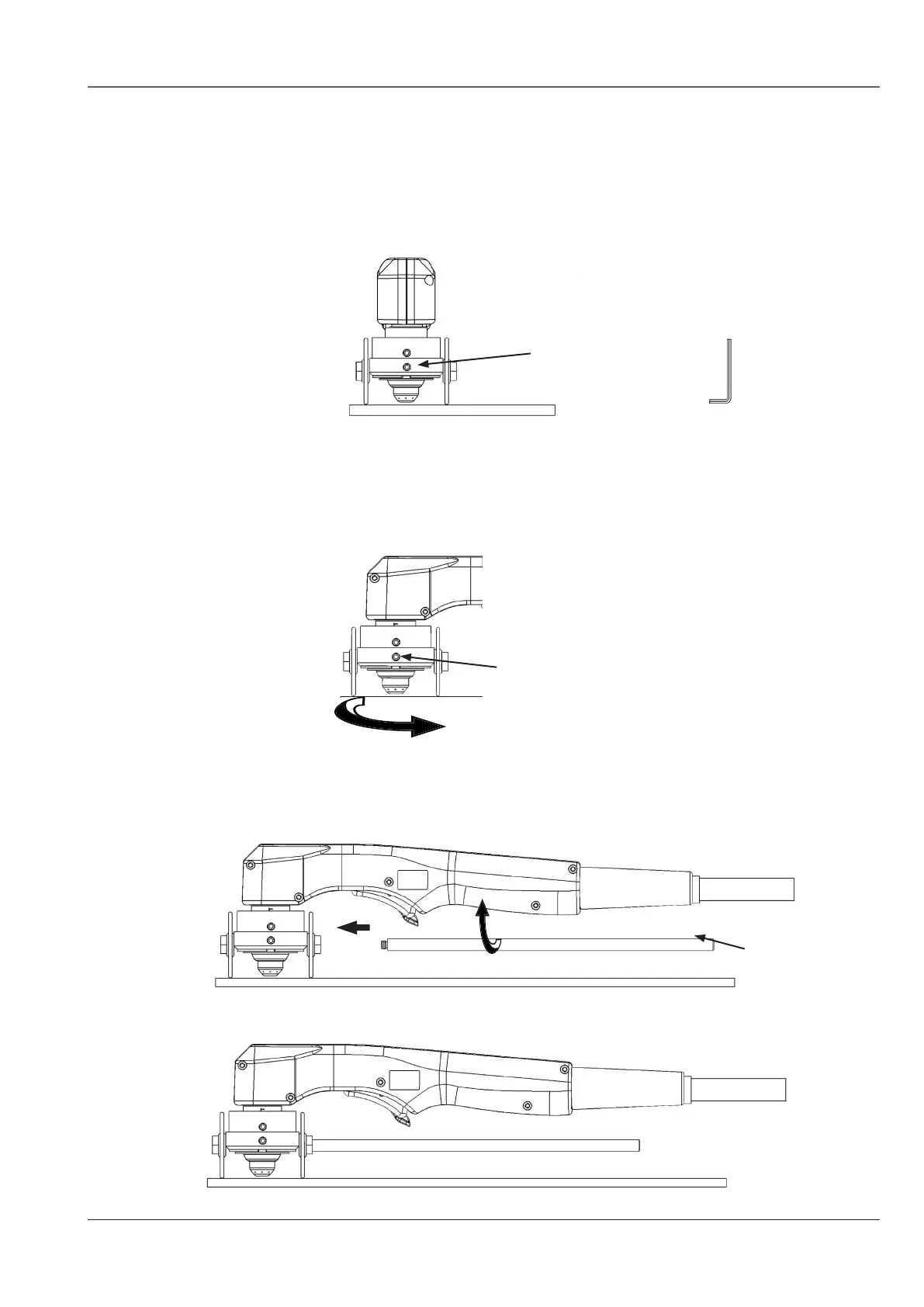

5� The hand torch clamped in the cutting guide can be used alone or with a radius bar�
If you don’t want use the radius bar, lock the cutting guide in a fixed position by using of the
screw with hexagonal head so that the wheels of the cutting guide point in the same direction
as the torch handle - see picture below�
Now the torch with the cutting guide is ready to cut�
Radius bar
7� Screw in the radius bar * into the threaded hole in the cutting guide�
* Lengths of bars are 250 mm or 400 mm�
Tighten the screw with
hexagonal head with
the hexagonal wrench�
6� If you want use the radius bar, make sure the screw with hexagonal head isn’t tightened so
that the cutting guide can rotate freely�
Screw with
hexagonal head
