Thermal Dynamics 152 CUTMASTER User Manual

CUTMASTER 152
INTRODUCTION 2-2 Manual 0-4987

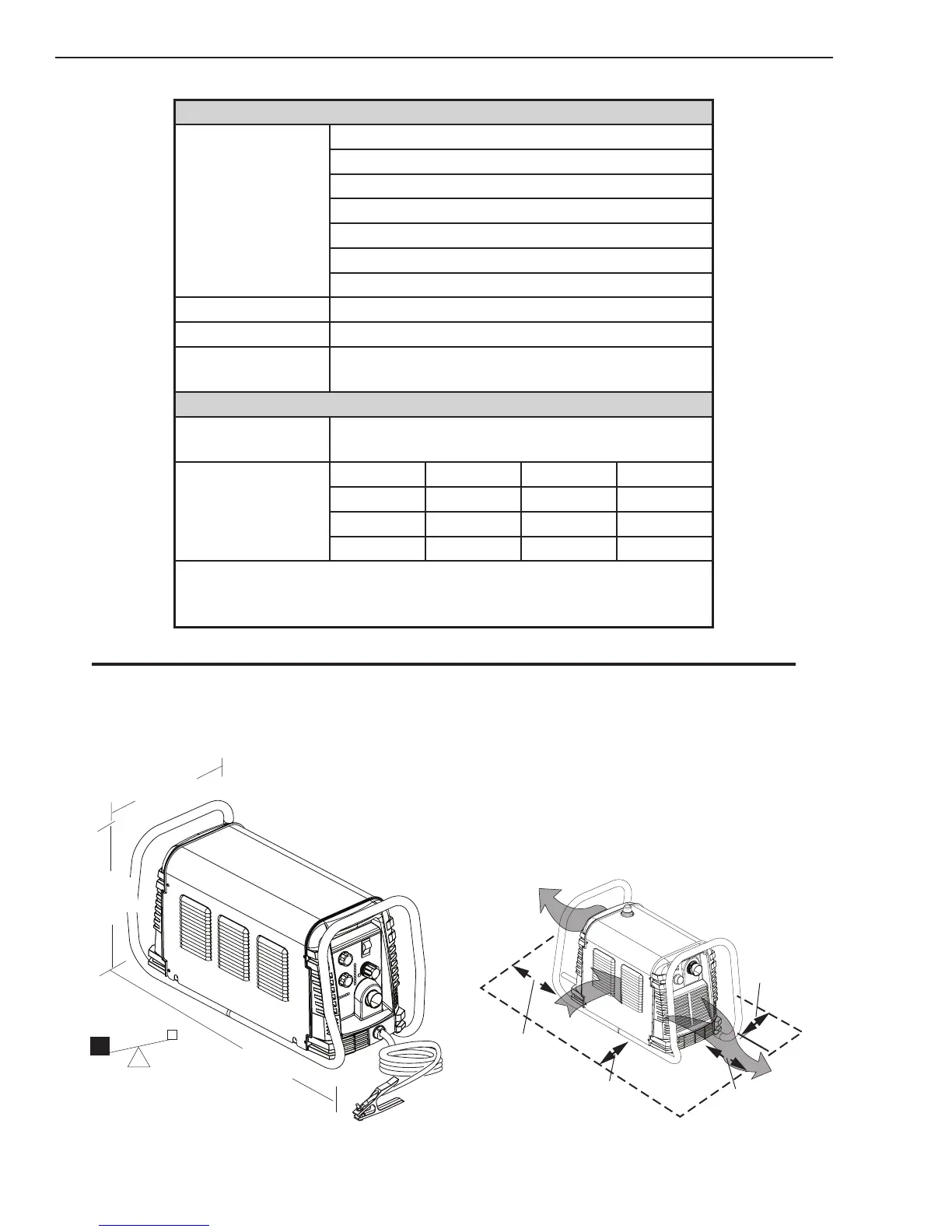

2.04 Power Supply Specifications
CutMaster 152 Power Supply Specifications
Input Power 208/230VAC(187-253VAC),SinglePhase,60Hz
230VAC(187-253VAC),ThreePhase,50/60Hz
380VAC(360-440VAC),ThreePhase,50/60Hz
400VAC(360-440VAC),ThreePhase,50Hz
460VAC(414-506VAC),SinglePhase,60Hz
460VAC(414-506VAC),ThreePhase,60Hz
600VAC(540-630),ThreePhase,60Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 120 Amps, Continuously Adjustable
Power Supply Gas
FilteringAbility
Particulates to 5 Microns
CutMaster 152 Power Supply Duty Cycle *
Ambient Tempera-
ture
DutyCycleRatings@40°C(104°F)
Operating Range 0° - 50° C
AllUnits Duty Cycle **60% 80% 100%
Current 120 120 100
IEC IEC IEC
DC Voltage 128 128 120
* NOTE:Thedutycyclewillbereducediftheprimaryinputpower(AC)islow
ortheoutputvoltage(DC)ishigherthanshowninthischart.
**60% at 208/230V 1 Phase input ONLY
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These specifications
include calculating an output voltage based upon power supply rated current. To facilitate comparison between
power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
30.5"
774.7 m
63 lb / 28.6 kg
10.75"
273 mm
16.375"
416 mm
Art # A-08358
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
