Thermal Dynamics 152 CUTMASTER User Manual

CUTMASTER 152
PARTS LIST 6-2 Manual 0-4987
6.04 Replacement Power Supply Parts
Qty Description Catalog #
1 Regulator 9-0115
1 Filter Assembly Replacement Element 9-0116
1 Input Power Cord for 208 / 230 V Power Supply 9-0191
1 460/600V Power Supply 9-0209
6.05 Options and Accessories
Qty Description Catalog #
1 Single - Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Two - Stage Filter Kit (includes Hose & Mounting Screws 9-9387
Bracket, Filter Mounting (not shown) 9-9386
1 Two - Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 Extended Work Cable (50 ft / 15.2 m) with Clamp 9-8529
1 Automation Interface Kit 9-8311
1 Automation Harness 9-9385
1 25' / 7.6 m CNC Cable for Automation Interface Kit 9-1008
1 35' / 10.7 m CNC Cable for Automation Interface Kit 9-1010
1 50' /15.2 m CNC Cable for Automation Interface Kit 9-1011

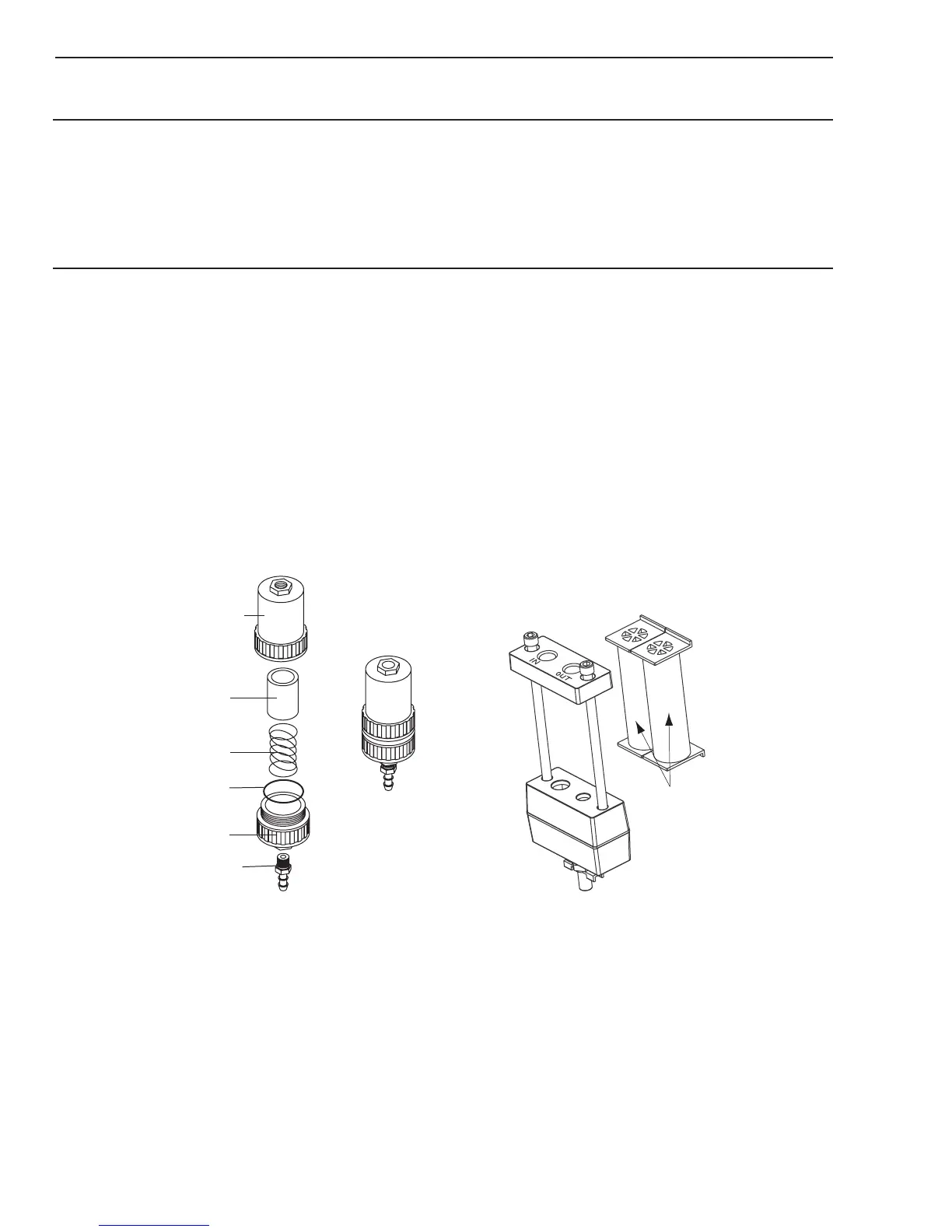

Art # A-02476
Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)
First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Optional Single - Stage Filter Kit Optional Two - Stage Filter Kit
