CUTMASTER 152
Manual 0-4987 3-1 INSTALLATION
SECTION 3 SYSTEM:
INSTALLATION
3.01 Unpacking
1. Use the packing lists to identify and ac-
count for each item.
2. Inspect each item for possible shipping
damage. If damage is evident, contact
your distributor and / or shipping company
before proceeding with the installation.
3. Record Power Supply and Torch model
and serial numbers, purchase date and ven-
dor name, in the information block at the
front of this manual.
3.02 Lifting Options
The Power Supply includes a handle for hand
lifting only. Be sure unit is lifted and transported
safely and securely.
!
WARNING
Do not touch live electrical parts.
Disconnect input power cord before moving unit.
FALLING EQUIPMENT can cause serious personal
injury and can damage equipment.
HANDLE is not for mechanical lifting.
• Only persons of adequate physical strength
should lift the unit.
• Lift unit by the handles, using two hands.
Do not use straps for lifting.
• Use optional cart or similar device of ad-
equate capacity to move unit.
• Place unit on a proper skid and secure in
place before transporting with a fork lift or
other vehicle.
3.03 Primary Input Power
Connections
CAUTION
Check your power source for correct voltage
before plugging in or connecting the unit. Check
the Voltage Selector at the rear of the unit for
correct setting before plugging in or connecting
the unit. The primary power source, fuse, and
any extension cords used must conform to local
electrical code and the recommended circuit
protection and wiring requirements as specified
in Section 2.

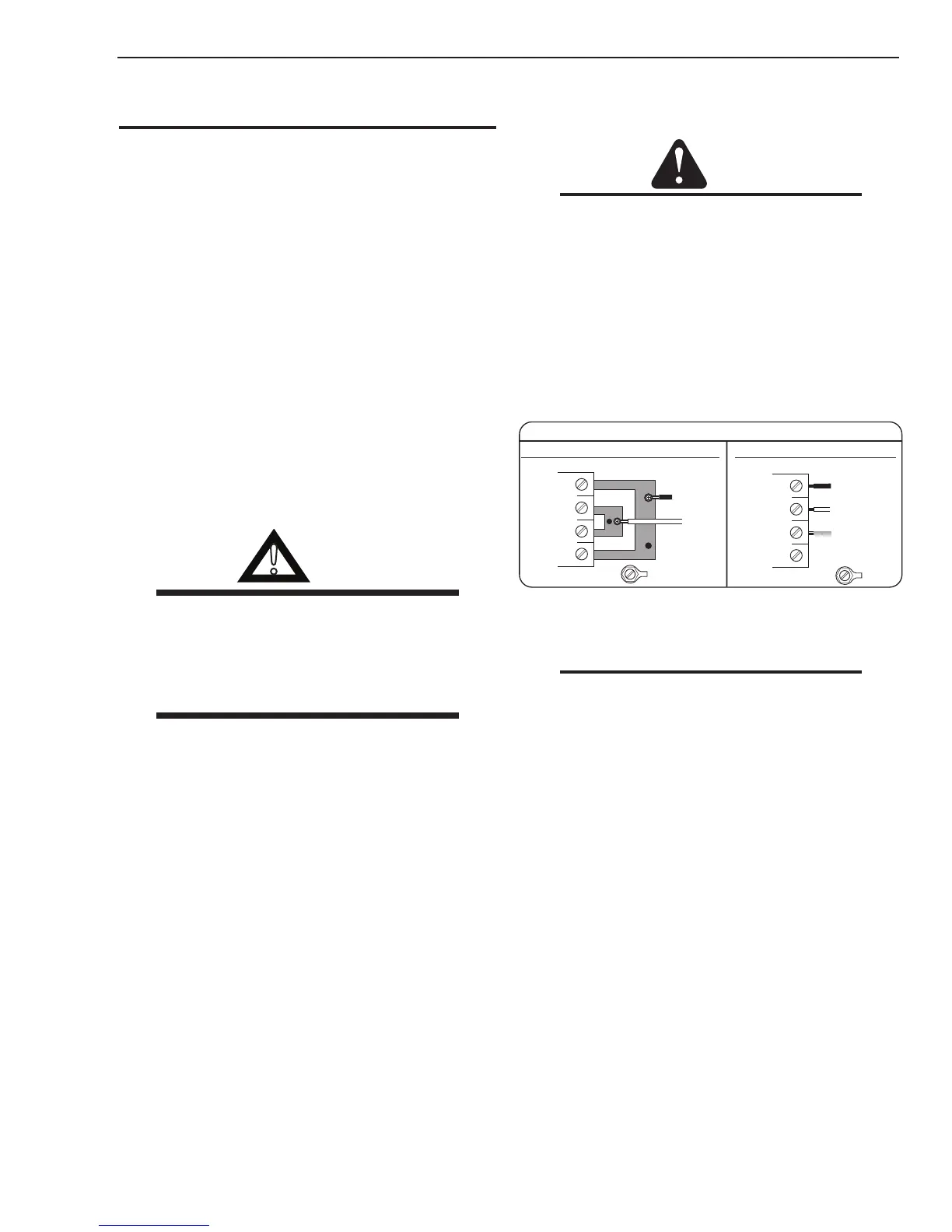

The following illustration and directions are for
changing phase of the power supply.
Art # A-08493
Input Power Cable Connections
Three-Phase (3ø)
Store copper jumpers on base plate
Single-Phase (1ø) and Jumper Settings
GND
L1
L2
L3
L4
GND
L1
L2
L3
L4
Single and Three Phase Input Power Wiring
NOTE
There are two jumpers used for the single phase
230V setting and none for three phase.
To Next Page
