Thermal Dynamics 42 CUTMASTER User Manual

CUTMASTER 42
INTRODUCTION 2-2 Manual 0-5141
Art# A-09333_AC
26lb / 11.8kg
7" (177mm)
18.5" (469.9mm)
9" (228.6mm)
CUTMASTER
®
42
120V 15A
120V 20A
230V 20A
A
24
40
20
20
30
27

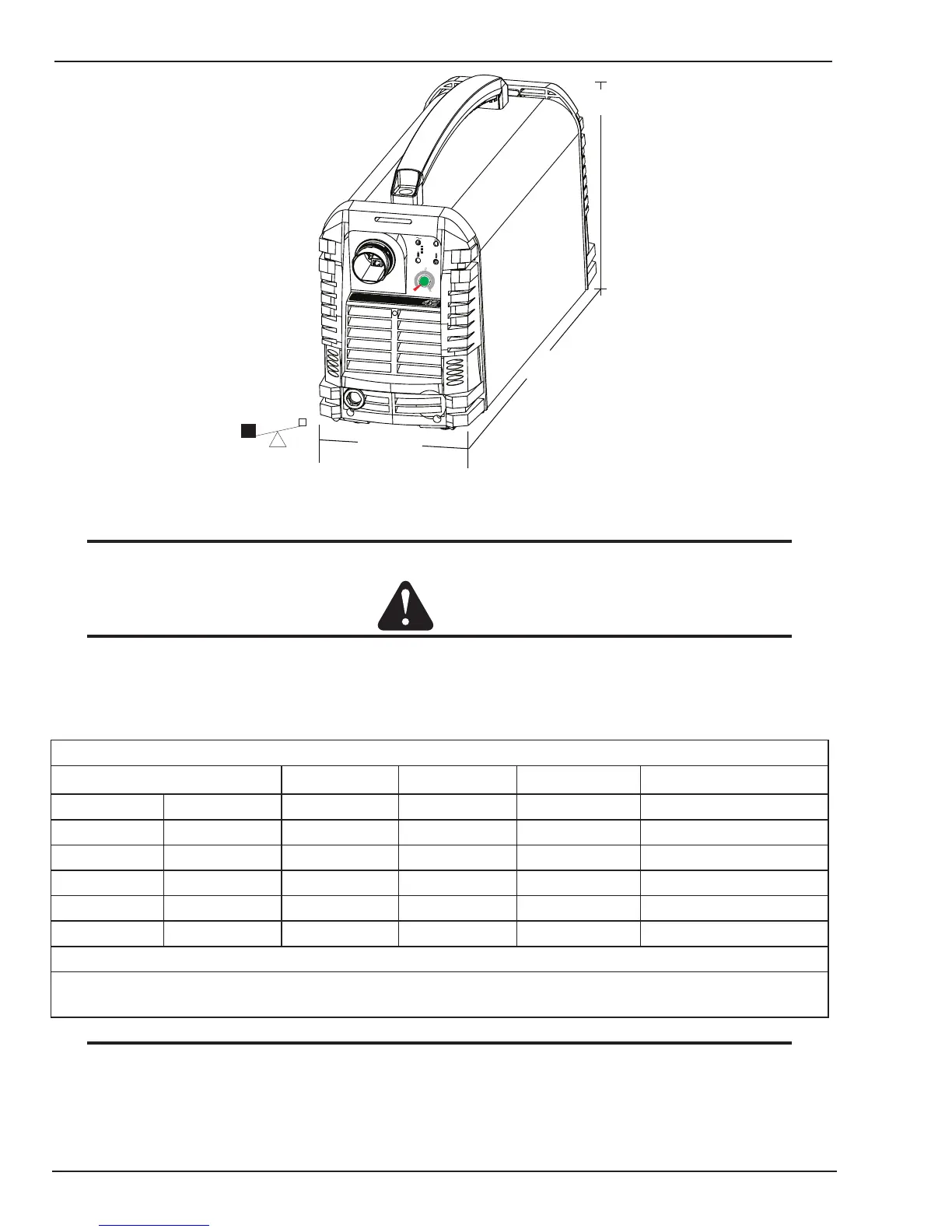

Figure 2-1 Power Supply Dimensions & Weight
NOTE
Weight includes torch & leads, input power cord, and work cable with clamp.
CAUTION
Provideclearanceforproperairowthroughthepowersupply.Operationwithoutproperairowwill
inhibit proper cooling and reduce duty cycle.
2.03 Input Wiring Specifications
CUTMASTER 42 Input Power Requirements
Input Power Input Current Input Current Input Suggested Sizes (See Note)
Voltage Freq. (kVA) Max (Amps) Ieff (Amps) Fuse (Amps)
(Volts-AC) (Hz) 1-Ph 1-Ph 1-Ph 1-Ph
120 50/60 3.3 27.5 15 25
208 50/60 5.0 24 15.4 23
230 50/60 5.0 21.4 13.5 20
240 50/60 5.0 20.8 13 20
Line Voltages with Suggested Circuit Protection
Motor start fuses or thermal circuit breakers are recommended for this application. Check local requirements for your situation
in this regard.
NOTE
Refer to Local and National Codes or local authority having jurisdiction for proper wiring requirements.
Cable size is de-rated based on the Duty Cycle of the equipment.
Thesuggestedsizesarebasedonexiblepowercablewithpowerpluginstallations.
Cable conductor temperature used is 167° F (75° C).
