Thermal Dynamics 42 CUTMASTER User Manual

2.05 Torch Specifications

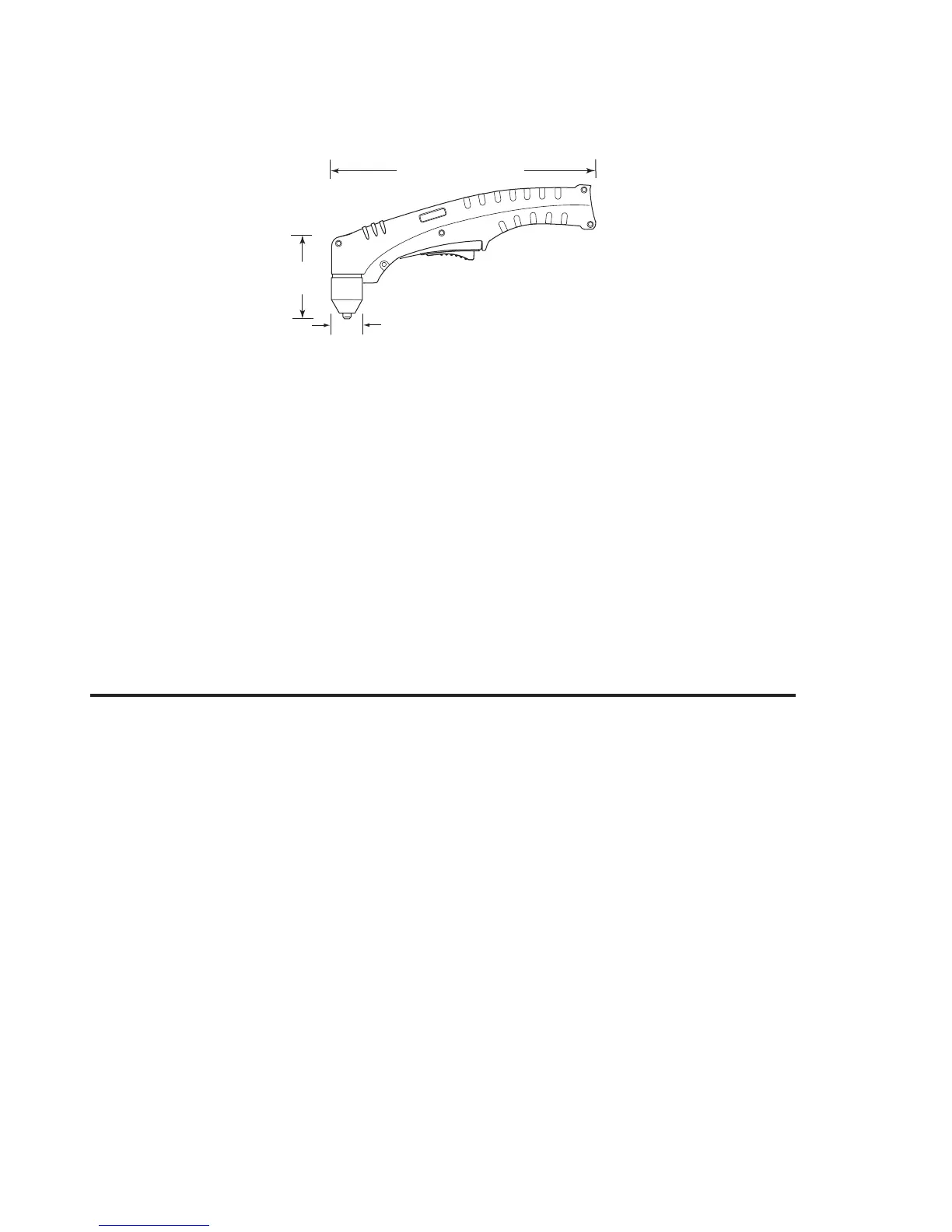

A. Torch Configuration and Dimensions
The torch head is at 75° to the torch handle. The torch includes a torch handle and torch trigger assembly.
10.125" (257 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322_AB
Torch Configuration and Dimensions
B. Torch Leads Lengths
Leads are available in 10 ft (3 m) lengths.
C. Parts-In-Place (PIP)
Torch has built-in switch.
12 vdc circuit rating
D. Type of Cooling
Combination of ambient air and gas stream through torch.
E. SL60 Torch Ratings (Refer to Note)
NOTE
Ratings shown apply to the SL60 Torch only. Refer to the Specifications chart on page 2T-1 for CutSkill
35A data.
F. Plasma Power Supply Used With
• Thermal Dynamics CutSkill 35A

Thermal Dynamics 42 CUTMASTER Specifications

General

Brand	Thermal Dynamics
Model	42 CUTMASTER
Category	Welding System
Language	English
