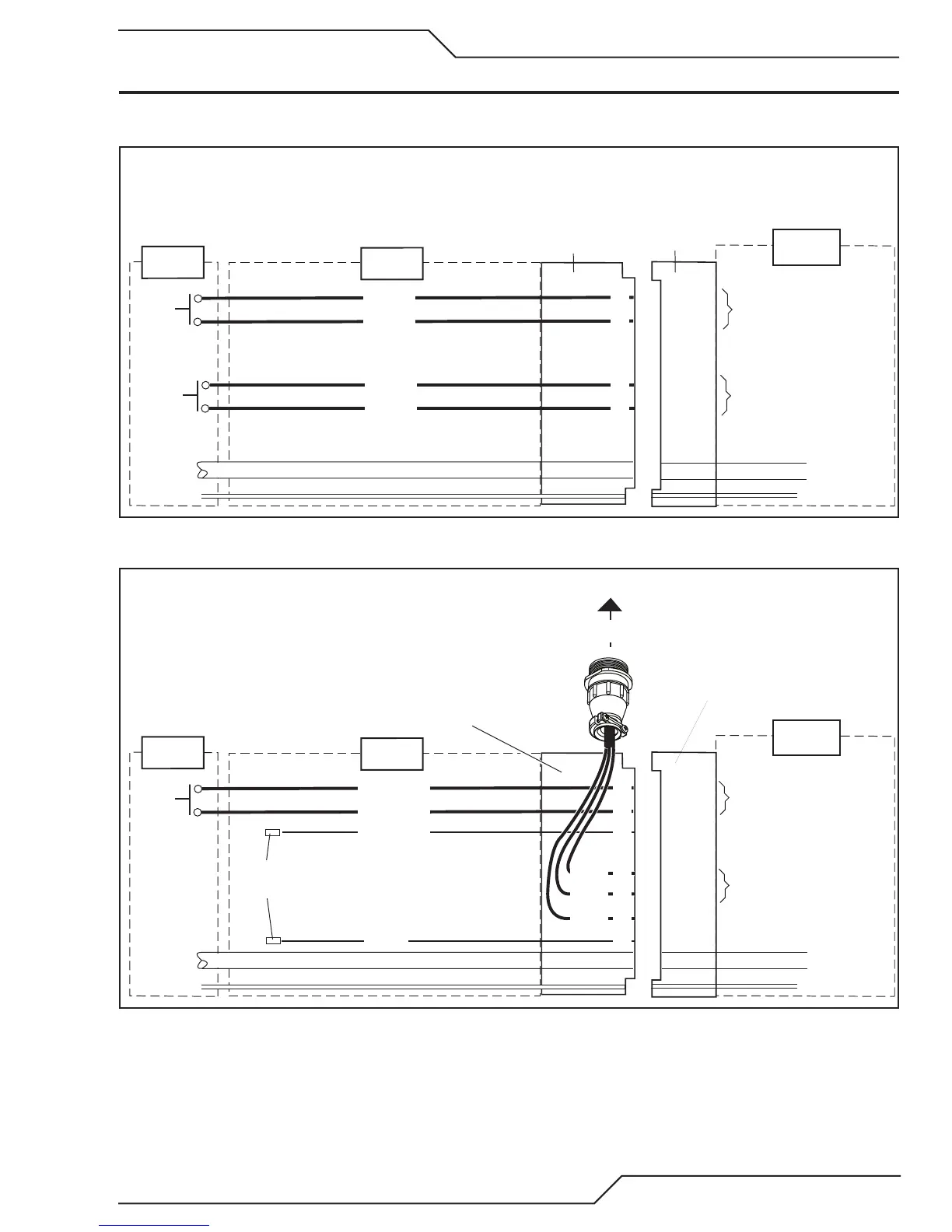

APPENDIX 3: TORCH CONNECTION DIAGRAMS
A. Hand Torch Connection Diagram
Torch: SL60QD / SL60 / SL100 Hand Torch
Leads: Torch Leads with ATC Connector
Power Supply: 60i
Pilot
Negative / Plasma
Power
Supply
PIP
Switch
Male
ATC Leads
Connector
ATC Female
Receptacle
Pilot
Negative / Plasma
Black
Orange
Torch
Leads
Torch
Head
To Power Supply
Circuitry
Art # A-13334
1
2
5
6
4
3
8
7
1
2
5
6
4
3
8
7
Torch
Switch
Green
White
To Power Supply
Circuitry
B. Mechanized Torch Connection Diagram
Torch: Unshielded Mechanized SL100 Machine Torch
Leads: Leads with ATC Connector and
Remote Pendant Connector
Power Supply: with ATC Female Receptacle
Pilot
Negative / Plasma
Power
Supply
To Remote Control
Remote
Pendant
Connector
PIP
Switch
Not
Used
Male
ATC Leads
Connector
ATC Female
Receptacle
Pilot Lead
Negative / Plasma Lead
Torch
Leads
Torch
Head
Art # A-13335
1
2
5
6
4
3
8
7
To Power Supply
Circuitry
Green
To Power Supply
Circuitry
1
2
5
6
4
3
8
7
Black
White
Green
Black
Orange
White
