INSTALLATION 3-4 Manual 0-4980
3.04 Gas Connections
Connecting Gas Supply to Unit
The connection is the same for compressed air or high pressure cylinders. Refer to the following two
subsections if an optional air line lter is to be installed.
1. Connect the air line to the inlet port. The illustration shows typical ttings as an example.
NOTE
For a secure seal, apply thread sealant to the fitting threads, according to manufacturer's instructions. Do not
use Teflon tape as a thread sealer, as small particles of the tape may break off and block the small air passages in
the torch.

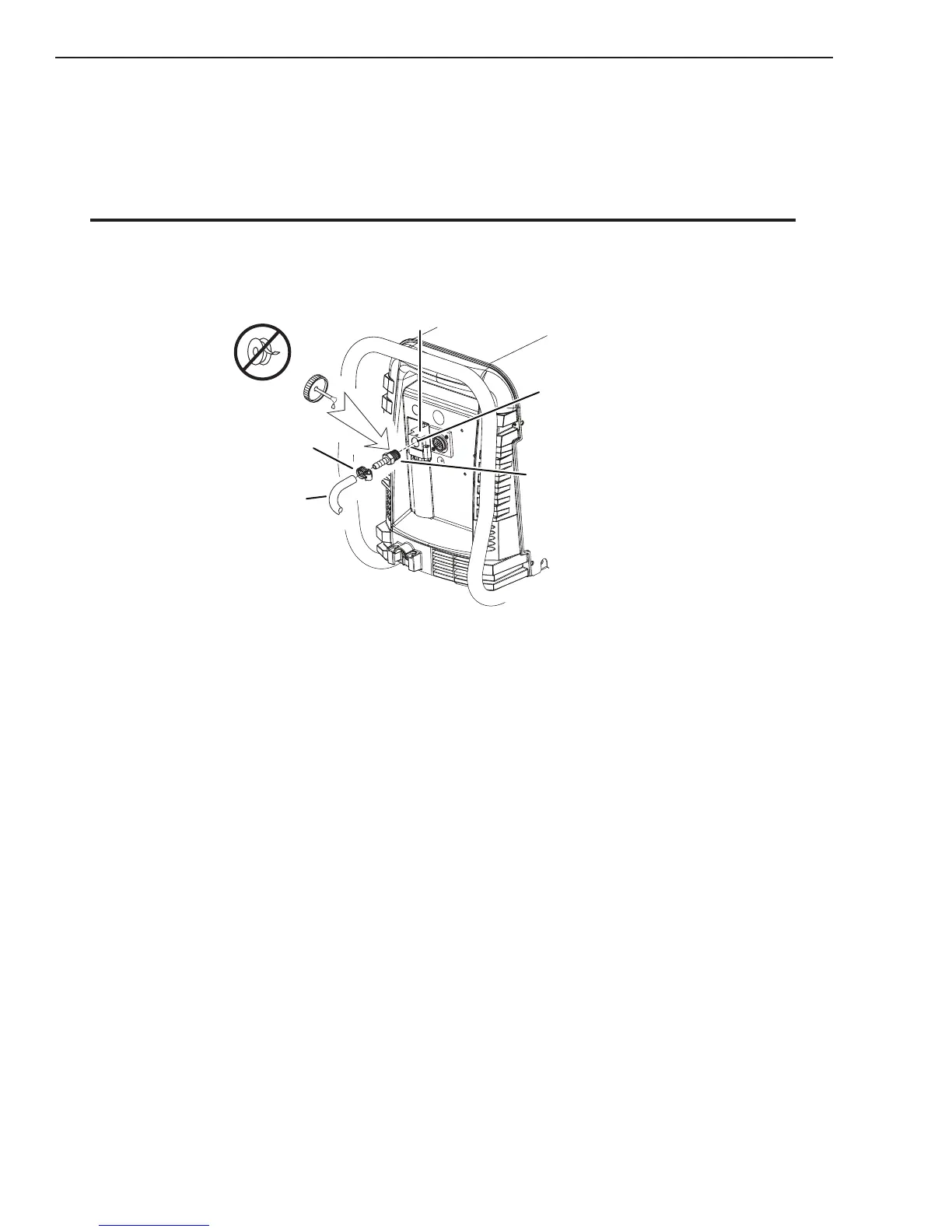

Art # A-07943
Hose Clamp
Regulator/Filter
Assembly
Inlet Port
Gas Supply
Hose
1/4 NPT or ISO-R
to 1/4” (6mm) Fitting
Air Connection to Inlet Port
