Manual 0-2815 6-5 PARTS LISTS
6.05 Complete Assembly Replacement
Description Catalog #
Machine Torches with Shielded Leads (Fiberglass Mounting Tube w/Rack & Phenolic Pinch Block Assembly):
PCM-102 RPT Machine Torch, 25 ft (7.6 m) Leads 7-7538-SL
PCM-102 RPT Machine Torch, 50 ft (15.2 m) Leads 7-7539-SL
6.06 Options & Accessories
Item # Qty Description Catalog #
1 Computer Control (CNC) Cable
25 Ft (7.6 m) 8-5557
50 Ft (15.2 m) 8-5558
Kevlar Sleeving:
1 25 ft. (7.6 m) 9-7905
1 50 ft. (15.2 m) 9-7906
1 1-3/8" Metal Positioning Tube w/Rack & Pinion Assembly Kit 7-7745
1 Pinion Assembly Only 7-2827
1 1 Torch Holder Sleeve 7-2896
2 1 Pinion Gear-Short 8-6074
3 1 Handwheel (Torch Holder) 9-4514
4 1 Low Profile Torch Holder (1 3/8 Dia) w/o Hardware 9-4515
5 1 Calibrated Torch Holder Bushing 9-4366
6 1 5/32 Dia x 5/8 Lg Slotted Spring Pin See Note
7 1 3/8-24 x 3/8 Soc Hd Set Screw, Cup Point See Note
8 2 1/4-20 x 5/8 Hex Socket Head Screw See Note
9 1 #10-24 x 3/8 Hex Socket Set Screw, Cup Point See Note
NOTE: Item can be purchased locally.

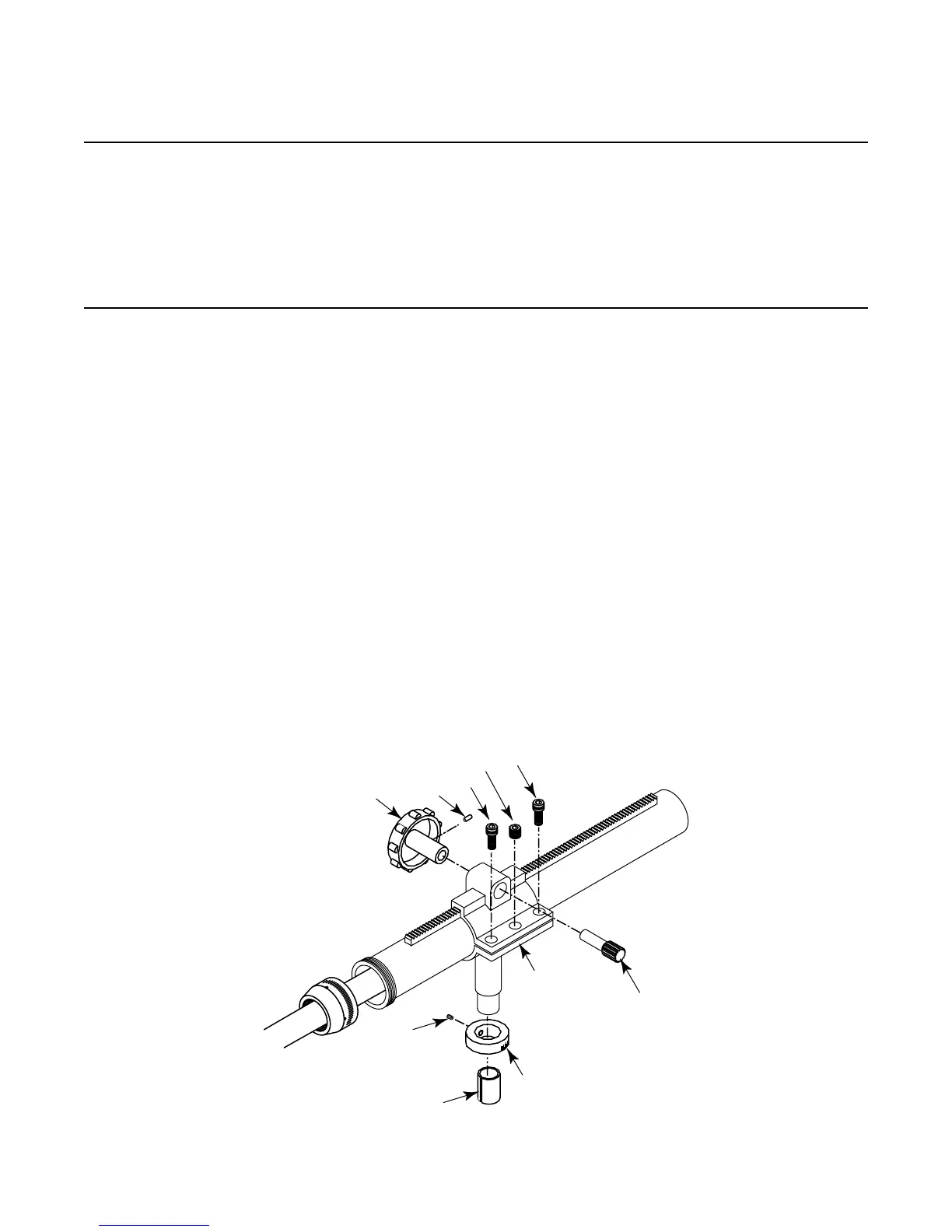

1
2
3
4
5
6
7
8
8
9
A-02737
