APPENDIX A-4 Manual 0-2815
APPENDIX 4: PAK MASTER 75XL PLUS AUTOMATED
SYSTEM DATA
Torch Specifications
Cutting Range
Material Mild Steel
Up to 3/4 inch (19 mm)
Speed 10 ipm (0.25 mpm)
Pierce Rating
Material Carbon Steel
Thickness 3/8 inch (9.5 mm)
Transfer Distance
3/8 inch (9.5 mm)
Gouging
Width 1/8 inch (3.2 mm)
Depth 1/8 inch (3.2 mm)
Number Passes Single
Speed 20 ipm (0.5 mpm)
Bevel Cut Capability
Degrees 0° to 45°
Material Thickness 1/4 inch (6.3 mm)
Gas Requirement
Type Gas Air or Nitrogen (N2)
Operating Pressure See Speed Charts
Max Input Pressure 125 psi (8.6 bar)
Cutting & Gouging
Total Flow
See Speed Charts
Torch Specifications For
Pak Master 75XL Plus Power Supply
Cut Quality on Various Materials and Thicknesses
The following table defines the cut quality on various
materials and thicknesses:
Table 4-A Cut Quality on Various Materials
Material Type of Type of Cut
Thickness Material Gas Characteristics
Carbon Steel Air Good - Excellent
Gage
Nitrogen Good
to
Stainless Air Good - Excellent
3/4 inch
Nitrogen Good
Aluminum Air Good - Excellent
Nitrogen Good
Description of Cut Characteristics:
Excellent - Minimum bevel (0 - 4°), minimum kerf (2 x
tip orifice diameter), little or no dross, smooth
cut surface.
Good - Slight bevel (0 - 10°), slightly wider kerf (2-1/2 x
tip orifice diameter), some dross (easily removed),
medium-smooth cut surface, slight top edge

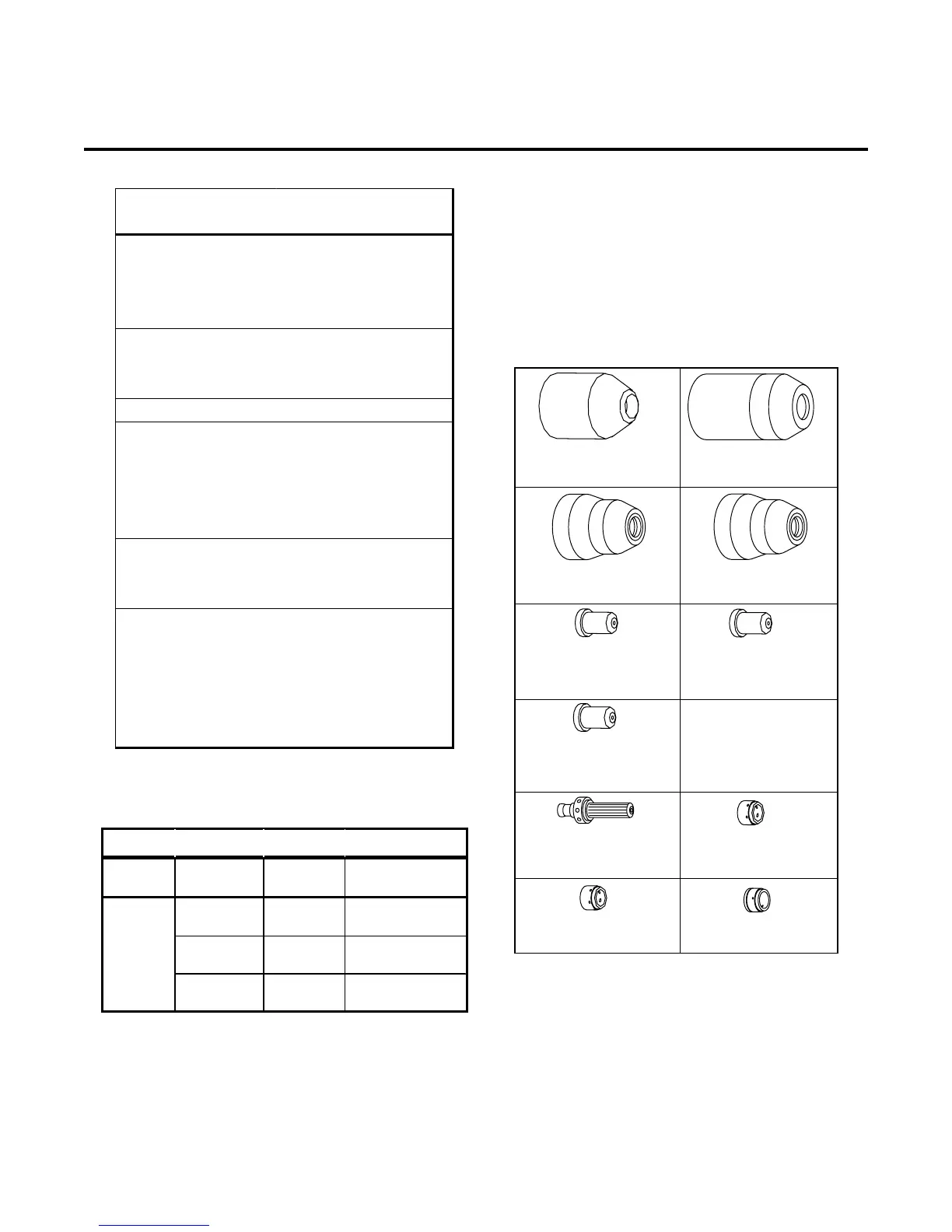

rounding.Torch Parts Selection
Torch Consumables
Cutting Tip, Air/N2
60 Amp (0.049 in)
Catalog No. 9-7726
Standard Shield Cup
Catalog No. 8-7500
Gouging Gas Distributor
Catalog No. 8-7508
A-02834
Gouging Tip, Air
(0.073 in Orifice)
Catalog No. 8-7506
Gas Distributor
Catalog No. 8-7501
Copper Shield Cup
Catalog No. 8-7496
Electrode (SureLok)
MaximumLife™
Catalog No. 9-8407
Cutting/Drag Tip, Air/N2
40 Amp (0.031 in)
Catalog No. 9-8411
Gas Distributor
40 Amp
Catalog No. 9-8401
40 Amp Shield Cup (Gray)
Catalog No. 9-8400
Hi-Vis Shield Cup (Black)
Catalog No. 8-7525
To Next Page
