Thermal Dynamics SureLok PCM-102 User Manual

Manual 0-2815 A-5 APPENDIX

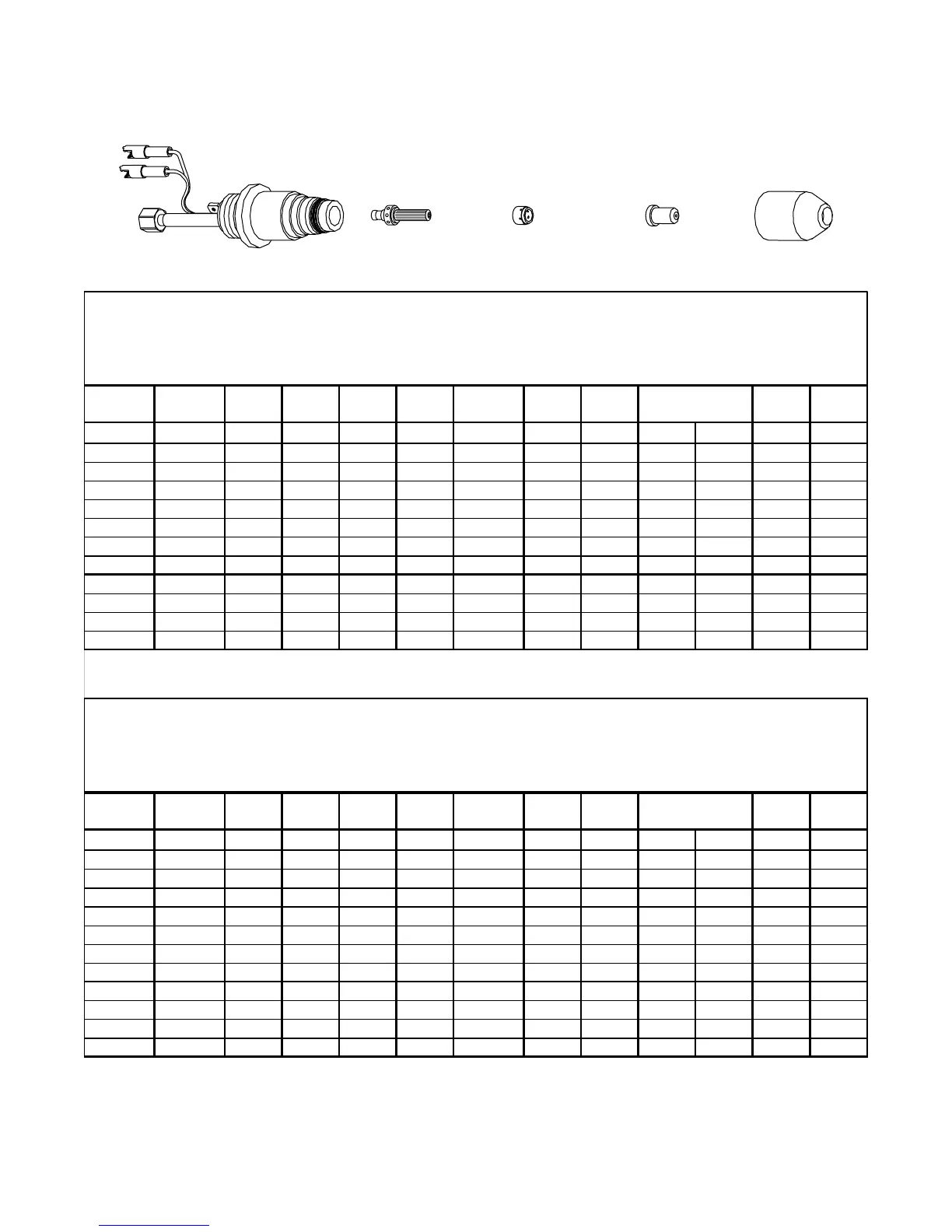

Cutting Speed Charts
Torch Head
9-8403
Electrode
9-8407
Gas Distributor
(See Chart)
Tip
(See Chart)
Shield Cup
(See Chart)
A-02889
US Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With Automated Pak Master 75XL Plus
Aluminum
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (SCFH)
Pierce
Delay
Pierce
Height
inches Cat. No. Cat. No. Cat. No. amps vdc inches/min inches psi Plasma Total seconds
inches
20 ga 9-8401 9-8411 9-8400 40 93 350 0.187 65 50 180 0.00 0.187
16 ga 9-8401 9-8411 9-8400 40 95 275 0.187 65 50 180 0.00 0.187
10 ga 9-8401 9-8411 9-8400 40 95 100 0.187 65 50 180 0.00 0.187
7 ga 9-8401 9-8411 9-8400 40 100 70 0.187 65 50 180 0.00 0.187
1/4 9-8401 9-8411 9-8400 40 107 30 0.187 65 50 180 0.50 0.187
3/8 9-8401 9-8411 9-8400 40 110 18 0.187 65 50 180 0.50 0.187
1/2 9-8401 9-8411 9-8400 40 115 10 0.187 65 50 180 1.00 0.187
16 ga 8-7501 9-7726 8-7500 60 100 375 0.188 60 50 275 0.10 0.25
10 ga 8-7501 9-7726 8-7500 60 100 225 0.188 60 50 275 0.10 0.25
1/4 8-7501 9-7726 8-7500 60 100 90 0.188 60 50 275 0.15 0.25
1/2 8-7501 9-7726 8-7500 60 100 30 0.188 60 50 275 NR NR
Metric Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With Automated Pak Master 75XL Plus
Aluminum
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (lpm)
Pierce
Delay
Pierce
Height
mm Cat. No. Cat. No. Cat. No. amps vdc m / min mm bar Plasma Total seconds
mm
0.8 9-8401 9-8411 9-8400 40 93 8.89 4.7 4.5 24 85 0.00 4.7
1.3 9-8401 9-8411 9-8400 40 95 6.99 4.7 4.5 24 85 0.00 4.7
2.6 9-8401 9-8411 9-8400 40 95 2.54 4.7 4.5 24 85 0.00 4.7
3.7 9-8401 9-8411 9-8400 40 100 1.78 4.7 4.5 24 85 0.00 4.7
6 9-8401 9-8411 9-8400 40 107 0.76 4.7 4.5 24 85 0.50 4.7
10 9-8401 9-8411 9-8400 40 110 0.46 4.7 4.5 24 85 0.50 4.7
13 9-8401 9-8411 9-8400 40 115 0.25 4.7 4.5 24 85 1.00 4.7
1.3 8-7501 9-7726 8-7500 60 100 9.53 4.8 4.1 24 130 0.10 6.4
2.6 8-7501 9-7726 8-7500 60 100 5.72 4.8 4.1 24 130 0.10 6.4
6 8-7501 9-7726 8-7500 60 100 2.29 4.8 4.1 24 130 0.15 6.4
13 8-7501 9-7726 8-7500 60 100 0.76 4.8 4.1 24 130 NR NR
