Thermal Dynamics SureLok PCM-102 User Manual

APPENDIX A-6 Manual 0-2815
US Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With Automated Pak Master 75XL Plus
Mild Steel
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (SCFH)
Pierce
Delay
Pierce
Height
inches Cat. No. Cat. No. Cat. No. amps vdc inches/min inches psi Plasma Total seconds
inches
20 ga 9-8401 9-8411 9-8400 40 90 300 0.125 65 50 180 0.00 0.188
16 ga 9-8401 9-8411 9-8400 40 90 275 0.125 65 50 180 0.00 0.188
10 ga 9-8401 9-8411 9-8400 40 90 75 0.125 65 50 180 0.00 0.188
7 ga 9-8401 9-8411 9-8400 40 95 40 0.125 65 50 180 0.50 0.188
1/4 9-8401 9-8411 9-8400 40 95 28 0.125 65 50 180 0.50 0.188
3/8 9-8401 9-8411 9-8400 40 100 15 0.187 65 50 180 1.00 0.250
1/2 9-8401 9-8411 9-8400 40 105 10 0.187 65 50 180 1.50 0.250
16 ga 8-7501 9-7726 8-7500 60 100 300 0.188 60 50 275 0.10 0.250
10 ga 8-7501 9-7726 8-7500 60 95 145 0.188 60 50 275 0.25 0.250
1/4 8-7501 9-7726 8-7500 60 105 65 0.188 60 50 275 0.25 0.250
3/8 8-7501 9-7726 8-7500 60 105 45 0.188 60 50 275 0.25 0.250
1/2 8-7501 9-7726 8-7500 60 105 22 0.188 60 50 275 0.50 0.250
3/4 8-7501 9-7726 8-7500 60 115 10 0.188 60 50 275 NR NR
1 8-7501 9-7726 8-7500 60 115 5 0.188 60 50 275 NR NR
Metric Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With Automated Pak Master 75XL Plus
Mild Steel
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (lpm)
Pierce
Delay
Pierce
Height
mm Cat. No. Cat. No. Cat. No. amps vdc m / min mm bar Plasma Total seconds
mm
0.9 9-8401 9-8411 9-8400 40 90 7.62 3.2 4.5 24 85 0.00 4.8
1.5 9-8401 9-8411 9-8400 40 90 6.99 3.2 4.5 24 85 0.00 4.8
3.4 9-8401 9-8411 9-8400 40 90 1.91 3.2 4.5 24 85 0.00 4.8
4.6 9-8401 9-8411 9-8400 40 95 1.02 3.2 4.5 24 85 0.50 4.8
6 9-8401 9-8411 9-8400 40 95 0.71 3.2 4.5 24 85 0.50 4.8
10 9-8401 9-8411 9-8400 40 100 0.38 4.7 4.5 24 85 1.00 6.4
13 9-8401 9-8411 9-8400 40 105 0.25 4.7 4.5 24 85 1.50 6.4
1.5 8-7501 9-7726 8-7500 60 100 7.62 4.8 4.1 24 130 0.10 6.4
3.4 8-7501 9-7726 8-7500 60 95 3.68 4.8 4.1 24 130 0.25 6.4
6 8-7501 9-7726 8-7500 60 105 1.65 4.8 4.1 24 130 0.25 6.4
10 8-7501 9-7726 8-7500 60 105 1.14 4.8 4.1 24 130 0.25 6.4
13 8-7501 9-7726 8-7500 60 105 0.56 4.8 4.1 24 130 0.50 6.4
19 8-7501 9-7726 8-7500 60 115 0.25 4.8 4.1 24 130 NR NR
25 8-7501 9-7726 8-7500 60 115 0.13 4.8 4.1 24 130 NR NR

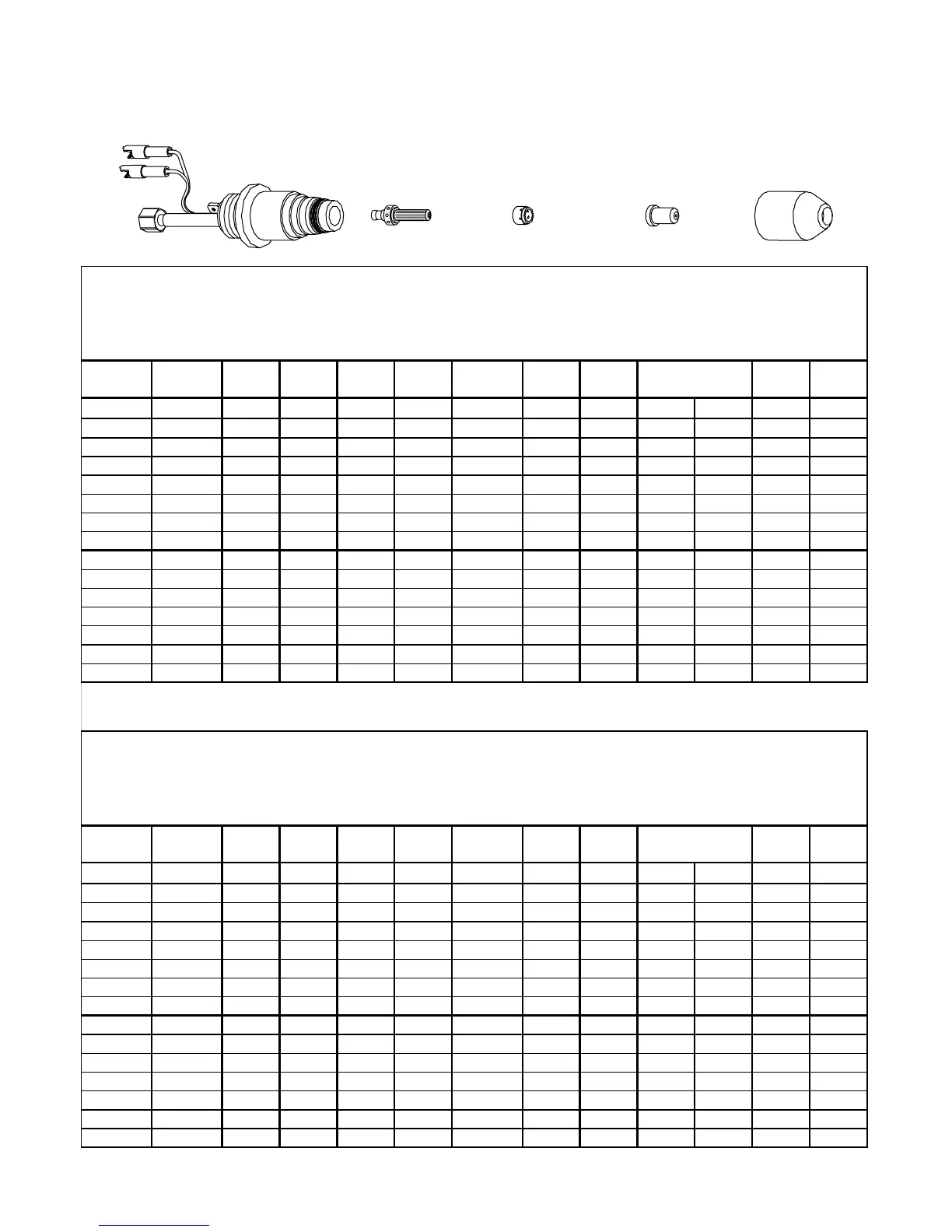

Cutting Speed Charts (continued)
Torch Head
9-8403
Electrode
9-8407
Gas Distributor
(See Chart)
Tip
(See Chart)
Shield Cup
(See Chart)
A-02889
