Thermal Dynamics SureLok PCM-102 User Manual

Manual 0-2815 A-15 APPENDIX

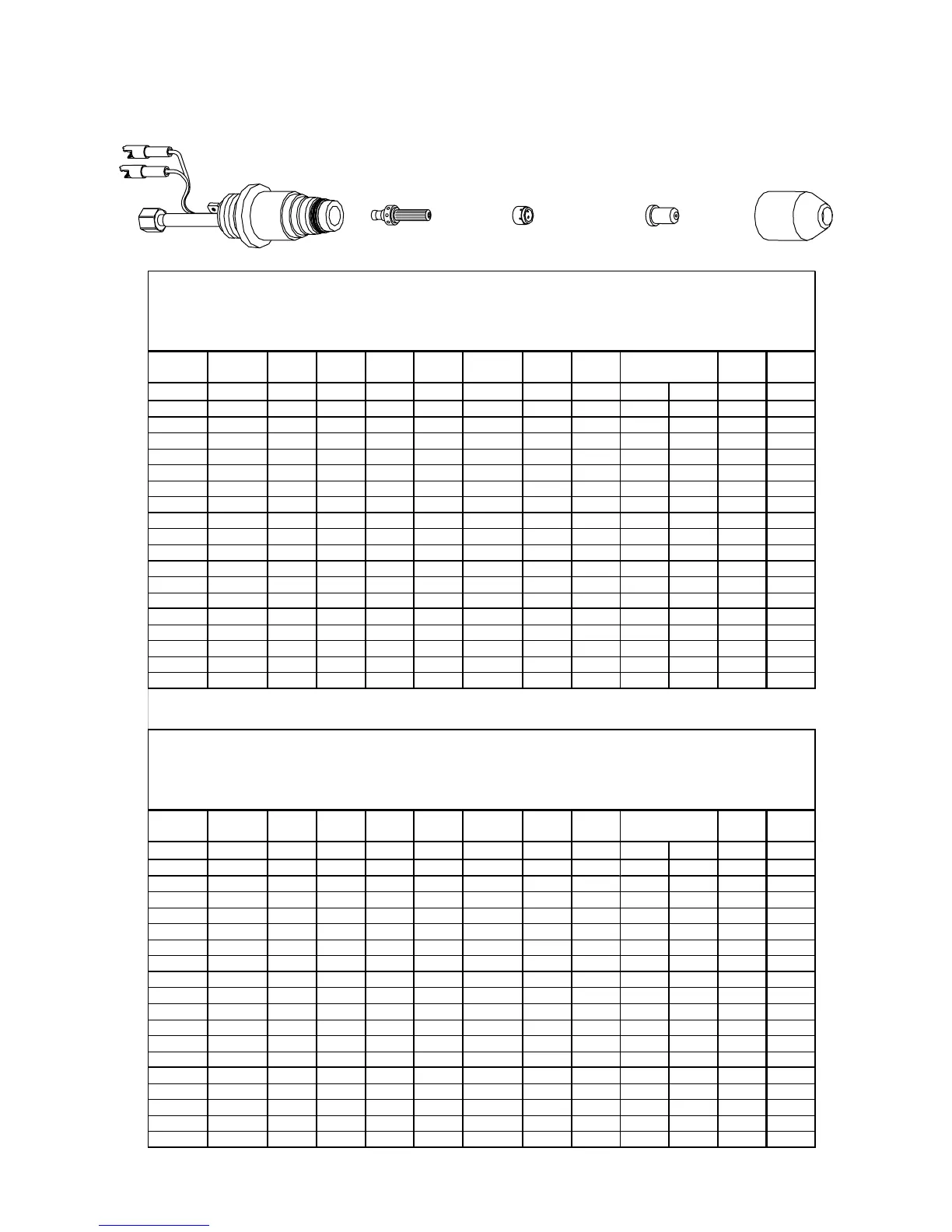

Cutting Speed Charts (continued)
Torch Head
9-8403
Electrode
9-8407
Gas Distributor
(See Chart)
Tip
(See Chart)
Shield Cup
(See Chart)
A-02889
US Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With Automated Pak Master 100XL Plus
Stainless Steel
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (SCFH)
Pierce
Delay
Pierce
Height
inches Cat. No. Cat. No. Cat. No. amps vdc inches/min inches psi Plasma Total seconds
inches
20 ga 9-8401 9-8411 9-8400 40 80 250 0.187 65 50 180 0.00 0.187
16 ga 9-8401 9-8411 9-8400 40 90 150 0.187 65 50 180 0.00 0.187
10 ga 9-8401 9-8411 9-8400 40 92 60 0.187 65 50 180 0.00 0.187
7 ga 9-8401 9-8411 9-8400 40 95 45 0.187 65 50 180 0.00 0.187
1/4 9-8401 9-8411 9-8400 40 95 21 0.187 65 50 180 0.50 0.187
3/8 9-8401 9-8411 9-8400 40 105 12 0.187 65 50 180 1.00 0.187
1/2 9-8401 9-8411 9-8400 40 110 6 0.187 65 50 180 1.50 0.187
16 ga 8-7501 9-7726 8-7500 60 95 130 0.188 60 50 275 0.25 0.200
1/4 8-7501 9-7726 8-7500 60 100 45 0.188 60 50 275 0.50 0.200
3/8 8-7501 9-7726 8-7500 60 100 25 0.188 60 50 275 0.50 0.200
1/2 8-7501 9-7726 8-7500 60 105 16 0.188 60 50 275 NR NR
5/8 8-7501 9-7726 8-7500 60 115 12 0.188 60 50 275 NR NR
3/4 8-7501 9-7726 8-7500 60 115 8 0.188 60 50 275 NR NR
10 ga 8-7501 9-7728 8-7500 80 105 150 0.188 70 85 365 0.10 0.200
1/4 8-7501 9-7728 8-7500 80 105 75 0.188 70 85 365 0.10 0.200
3/8 8-7501 9-7728 8-7500 80 105 40 0.188 70 85 365 0.20 0.200
1/2 8-7501 9-7728 8-7500 80 110 18 0.188 70 85 365 NR NR
3/4 8-7501 9-7728 8-7500 80 125 10 0.188 70 85 365 NR NR
Metric Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With Automated Pak Master 100XL Plus
Stainless Steel
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (lpm)
Pierce
Delay
Pierce
Height
mm Cat. No. Cat. No. Cat. No. amps vdc m / min mm bar Plasma Total seconds
mm
0.9 9-8401 9-8411 9-8400 40 80 6.35 4.7 4.5 24 85 0.00 4.7
1.5 9-8401 9-8411 9-8400 40 90 3.81 4.7 4.5 24 85 0.00 4.7
3.4 9-8401 9-8411 9-8400 40 92 1.52 4.7 4.5 24 85 0.00 4.7
4.6 9-8401 9-8411 9-8400 40 95 1.14 4.7 4.5 24 85 0.00 4.7
6 9-8401 9-8411 9-8400 40 95 0.53 4.7 4.5 24 85 0.50 4.7
10 9-8401 9-8411 9-8400 40 105 0.30 4.7 4.5 24 85 1.00 4.7
13 9-8401 9-8411 9-8400 40 110 0.15 4.7 4.5 24 85 1.50 4.7
1.5 8-7501 9-7726 8-7500 60 95 3.30 4.8 4.1 24 130 0.25 5.1
6 8-7501 9-7726 8-7500 60 100 1.14 4.8 4.1 24 130 0.50 5.1
10 8-7501 9-7726 8-7500 60 100 0.64 4.8 4.1 24 130 0.50 5.1
13 8-7501 9-7726 8-7500 60 105 0.41 4.8 4.1 24 130 NR NR
16 8-7501 9-7726 8-7500 60 115 0.30 4.8 4.1 24 130 NR NR
19 8-7501 9-7726 8-7500 60 115 0.20 4.8 4.1 24 130 NR NR
1.5 8-7501 9-7728 8-7500 80 105 3.81 4.8 4.8 40 172 0.10 5.1
6 8-7501 9-7728 8-7500 80 105 1.91 4.8 4.8 40 172 0.10 5.1
10 8-7501 9-7728 8-7500 80 105 1.02 4.8 4.8 40 172 0.20 5.1
13 8-7501 9-7728 8-7500 80 110 0.46 4.8 4.8 40 172 NR NR
19 8-7501 9-7728 8-7500 80 125 0.25 4.8 4.8 40 172 NR NR
