Thermal Dynamics SureLok PCM-102 User Manual

Manual 0-2815 A-17 APPENDIX

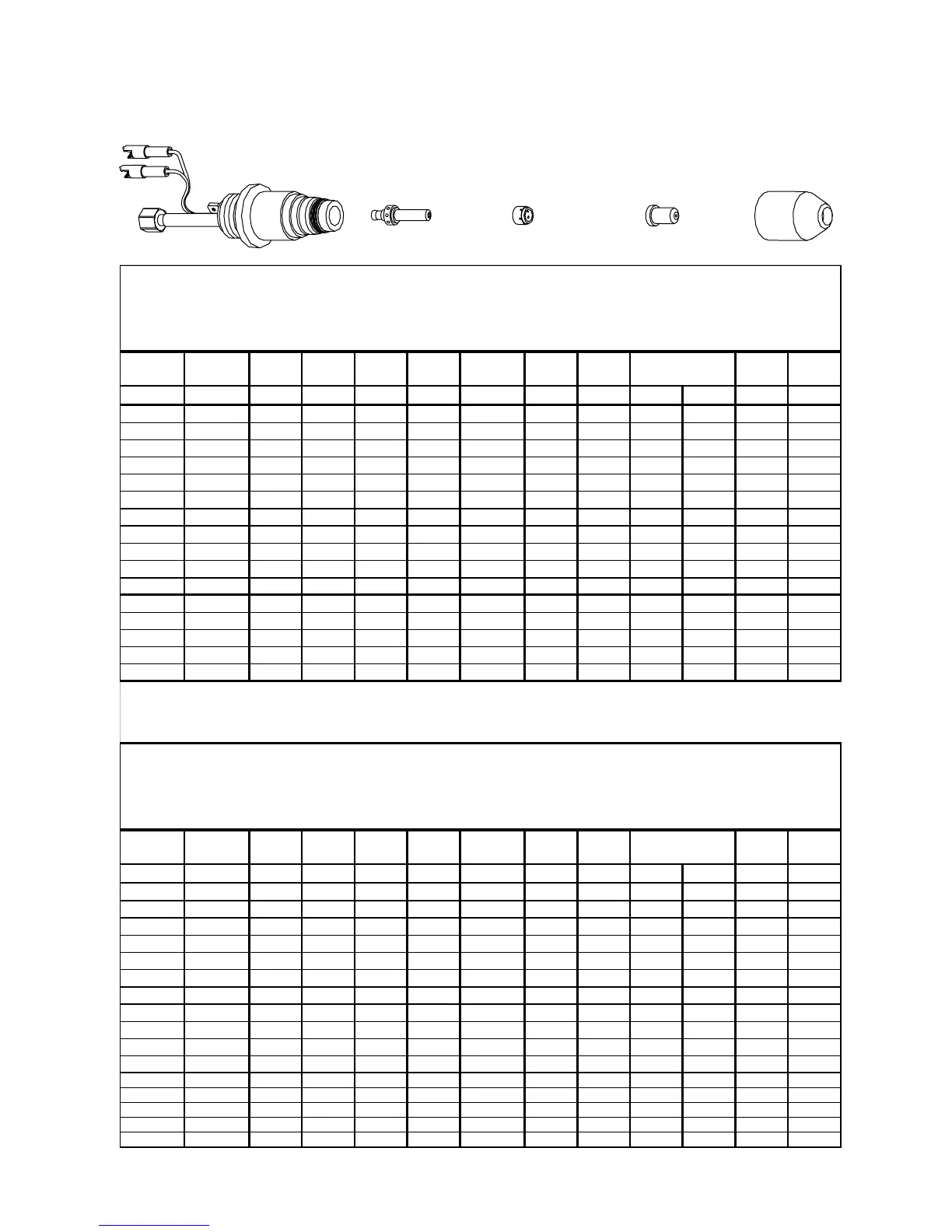

Cutting Speed Charts
Torch Head
9-8403
Electrode
9-8402
Gas Distributor
(See Chart)
Tip
(See Chart)
Shield Cup
(See Chart)
A-02946
US Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With CE Automated Pak Master 100XL Plus
Aluminum
Sin
g
le Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (SCFH)
Pierce
Delay
Pierce
Height
inches Cat. No. Cat. No. Cat. No. amps vdc inches/min inches psi Plasma Total seconds
inches
20 ga 9-8401 9-8411 9-8400 40 93 350 0.187 65 50 180 0.00 0.187
16 ga 9-8401 9-8411 9-8400 40 95 275 0.187 65 50 180 0.00 0.187
10 ga 9-8401 9-8411 9-8400 40 95 100 0.187 65 50 180 0.00 0.187
7 ga 9-8401 9-8411 9-8400 40 100 70 0.187 65 50 180 0.00 0.187
1/4 9-8401 9-8411 9-8400 40 107 30 0.187 65 50 180 0.50 0.187
3/8 9-8401 9-8411 9-8400 40 110 18 0.187 65 50 180 0.50 0.187
1/2 9-8401 9-8411 9-8400 40 115 10 0.187 65 50 180 1.00 0.187
16 ga 8-7501 9-7726 8-7500 60 100 375 0.188 60 50 275 0.10 0.25
10 ga 8-7501 9-7726 8-7500 60 100 225 0.188 60 50 275 0.10 0.25
1/4 8-7501 9-7726 8-7500 60 100 90 0.188 60 50 275 0.15 0.25
1/2 8-7501 9-7726 8-7500 60 100 30 0.188 60 50 275 NR NR
10 ga 8-7501 9-7728 8-7500 80 105 225 0.188 70 85 365 0.00 0.20
1/4 8-7501 9-7728 8-7500 80 105 115 0.188 70 85 365 0.00 0.20
3/8 8-7501 9-7728 8-7500 80 110 60 0.188 70 85 365 0.00 0.20
1/2 8-7501 9-7728 8-7500 80 120 30 0.188 70 85 365 NR NR
3/4 8-7501 9-7728 8-7500 80 125 10 0.188 70 85 365 NR NR
Metric Measurements
Air Plasma Cutting Data Chart
PCM-102 Automated Torch With CE Automated Pak Master 100XL Plus
Aluminum
Single Gas Torch - Air Plasma / Air Secondary
Material
Thickness
Gas
Distributor
Tip
Shield
Cup
Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Flow (lpm)
Pierce
Delay
Pierce
Height
mm Cat. No. Cat. No. Cat. No. amps vdc m / min mm bar Plasma Total seconds
mm
0.8 9-8401 9-8411 9-8400 40 93 8.89 4.7 4.5 24 85 0.00 4.7
1.3 9-8401 9-8411 9-8400 40 95 6.99 4.7 4.5 24 85 0.00 4.7
2.6 9-8401 9-8411 9-8400 40 95 2.54 4.7 4.5 24 85 0.00 4.7
3.7 9-8401 9-8411 9-8400 40 100 1.78 4.7 4.5 24 85 0.00 4.7
6 9-8401 9-8411 9-8400 40 107 0.76 4.7 4.5 24 85 0.50 4.7
10 9-8401 9-8411 9-8400 40 110 0.46 4.7 4.5 24 85 0.50 4.7
13 9-8401 9-8411 9-8400 40 115 0.25 4.7 4.5 24 85 1.00 4.7
1.3 8-7501 9-7726 8-7500 60 100 9.53 4.8 4.1 24 130 0.10 6.4
2.6 8-7501 9-7726 8-7500 60 100 5.72 4.8 4.1 24 130 0.10 6.4
6 8-7501 9-7726 8-7500 60 100 2.29 4.8 4.1 24 130 0.15 6.4
13 8-7501 9-7726 8-7500 60 100 0.76 4.8 4.1 24 130 NR NR
1.3 8-7501 9-7728 8-7500 80 105 5.72 4.8 4.8 40 172 0.00 5.1
2.6 8-7501 9-7728 8-7500 80 105 2.92 4.8 4.8 40 172 0.00 5.1
10 8-7501 9-7728 8-7500 80 110 1.52 4.8 4.8 40 172 0.00 5.1
13 8-7501 9-7728 8-7500 80 120 0.76 4.8 4.8 40 172 NR NR
19 8-7501 9-7728 8-7500 80 125 0.25 4.8 4.8 40 172 NR NR
