Page 144 Thermo Scientific APEX User’s Guide

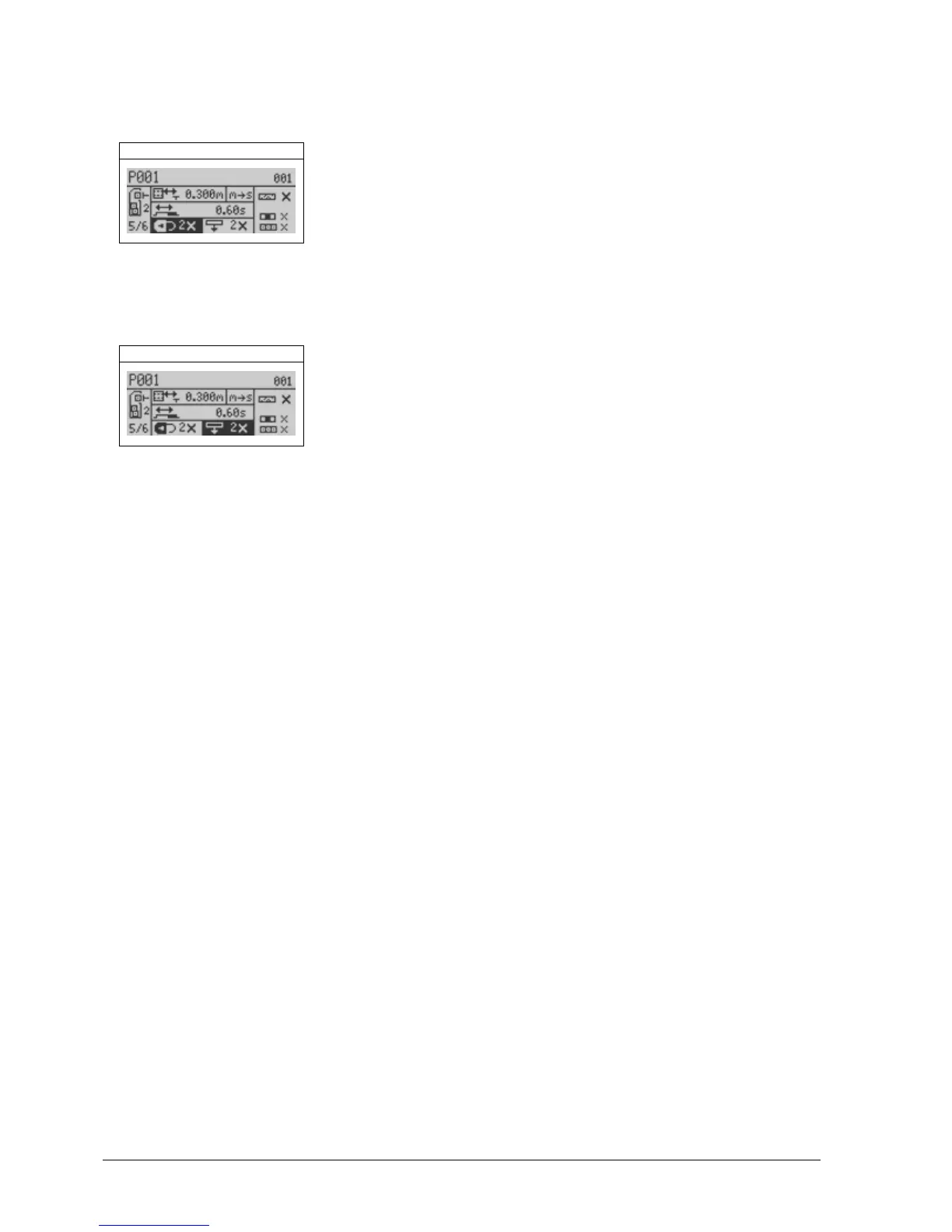

Setting the Latching-Reject Function for Reject 2

This is set up in exactly the same way as the reject-1 device. See page 122.

Latching Reject

Inverting the Reject Function for Reject 2

This is set up in exactly the same way as the reject-1 device. See page 123.

Inverting Reject
