Page 168 Thermo Scientific APEX User’s Guide

System and Tools—Page 1

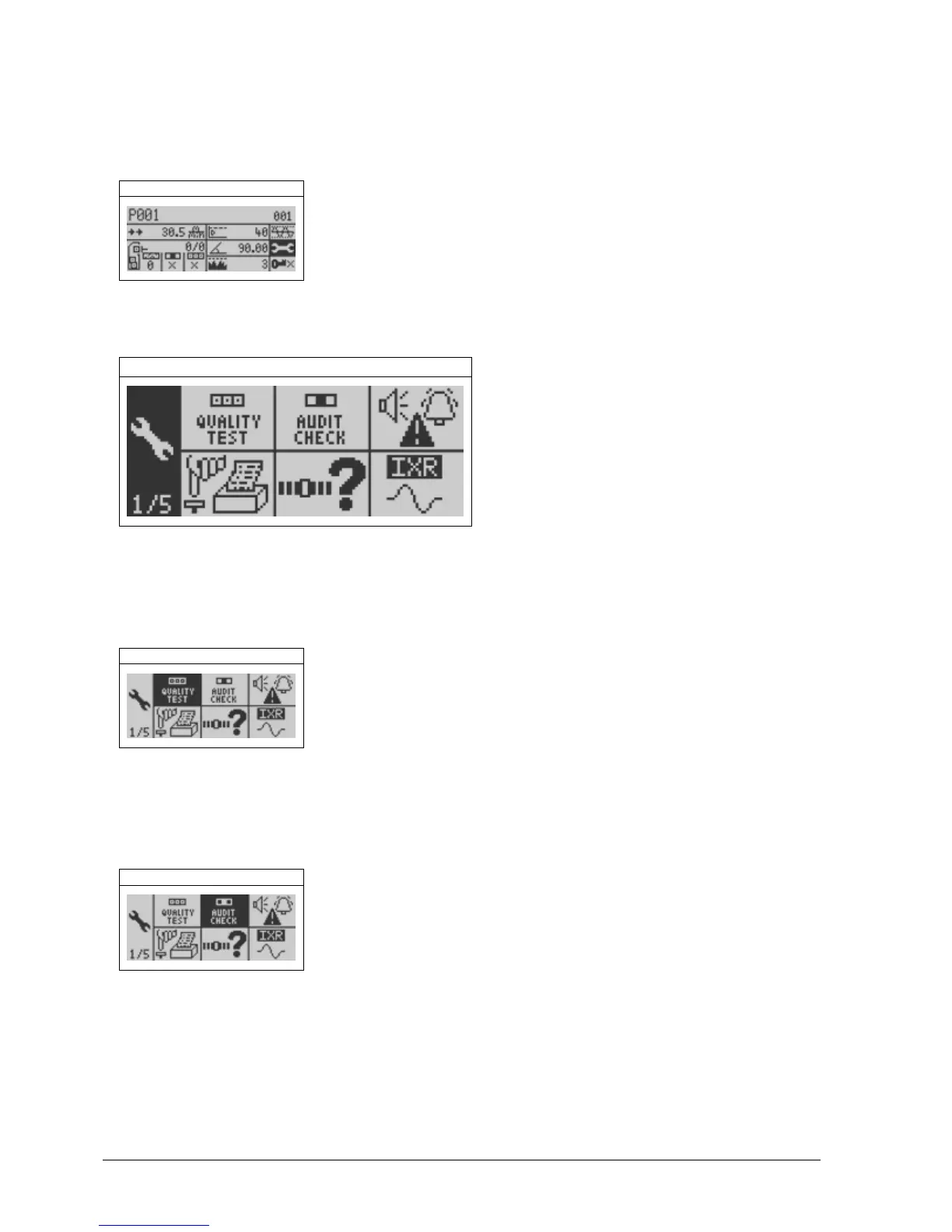

1) From the Main Menu navigate to the system and tools menu.

System and Tools

2) Press the Go button and page 1 of the system and tools menu appears.

System and Tools Page 1

Quality Test

See page 196.

Quality Test

AuditCheck

See page 206.

AuditCheck
