Thermo Scientific TSX Series User Manual

Ultra Low Temperature Freezers Operation | 27

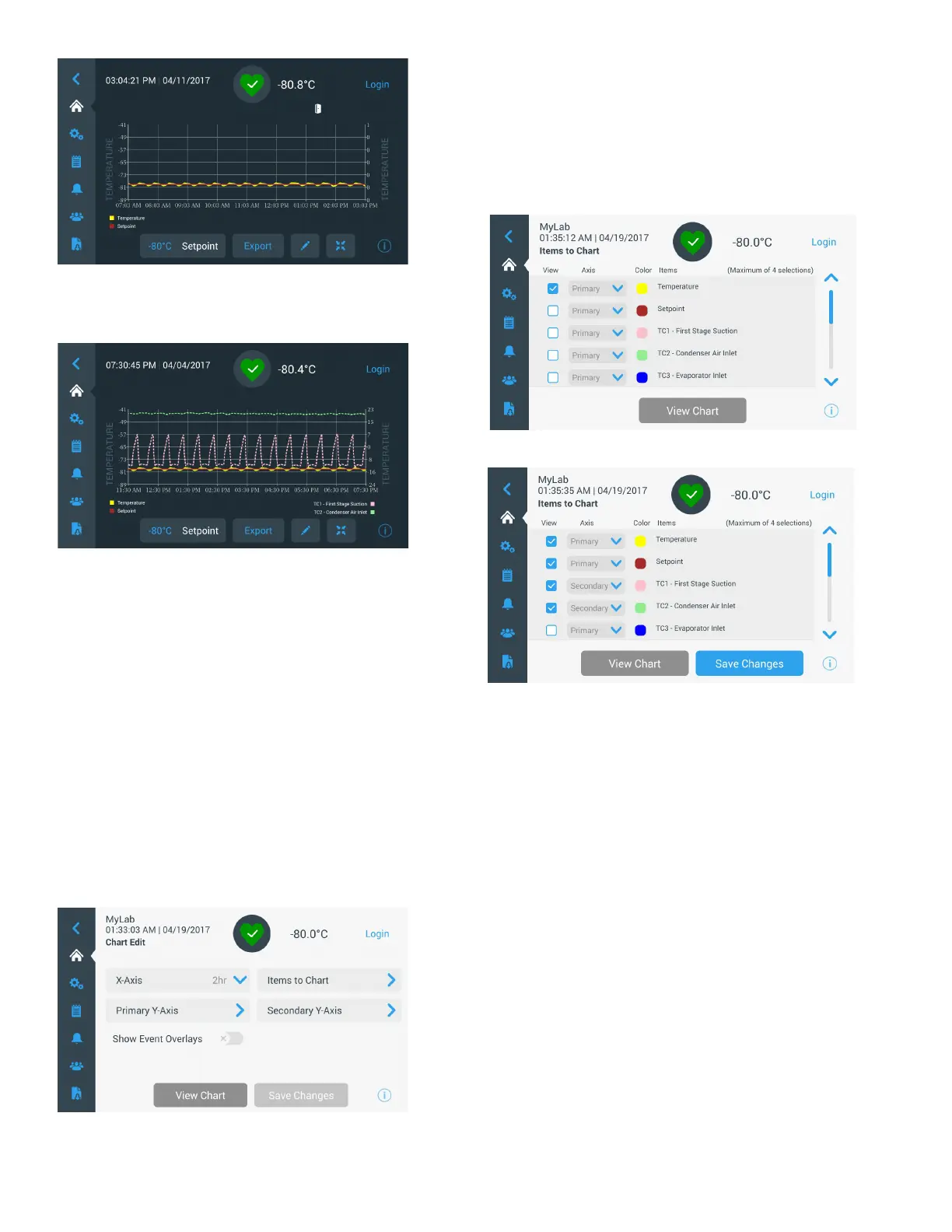

Figure 59. Chart with items on Primary axis
Figure 60. Chart with items on Primary and
Secondary axes
The four buttons on the bottom of the screen are used to:
• Change the setpoint.
• Export the chart.
• Edit the chart, refer Editing the Chart.
• Expand the chart to full screen or return to the default
view.
Editing the Chart
When the Pencil icon is selected, the Chart Edit screen is
displayed:
Figure 61. Chart Edit Screen
• The X-Axis button allows the user to select a time span of
2, 4, 6 or 8 hours.
• The Items to Chart button allows the user to select the
items to be displayed on the chart. A maximum of four
items may be selected.
• Show Event Overlay: Enable quick reference event
icons to be displayed on the top of the chart.
Figure 62. Items to Chart Screen
• The Primary Y-Axis button allows the user to set the
temperature range. If Auto is selected, the temperatures
are automatically set. If Manual is selected, the user must
specify the high and low temperatures.

Thermo Scientific TSX Series Specifications

General

Type	Laboratory Refrigerator
Cooling Type	Forced air cooling
Defrost Type	Automatic
Door Type	Solid or glass door options
Controller Type	Microprocessor
Certifications/Compliance	UL, CE
Energy Consumption	Varies by model; refer to product specification sheet
Voltage	115V
Exterior Dimensions (H x W x D)	Varies by model; refer to product specification sheet
Interior Dimensions (H x W x D)	Varies by model; refer to product specification sheet
Weight	Varies by model; refer to product specification sheet
Shelves	Adjustable shelves
Energy Efficiency	Energy Star certified models available
