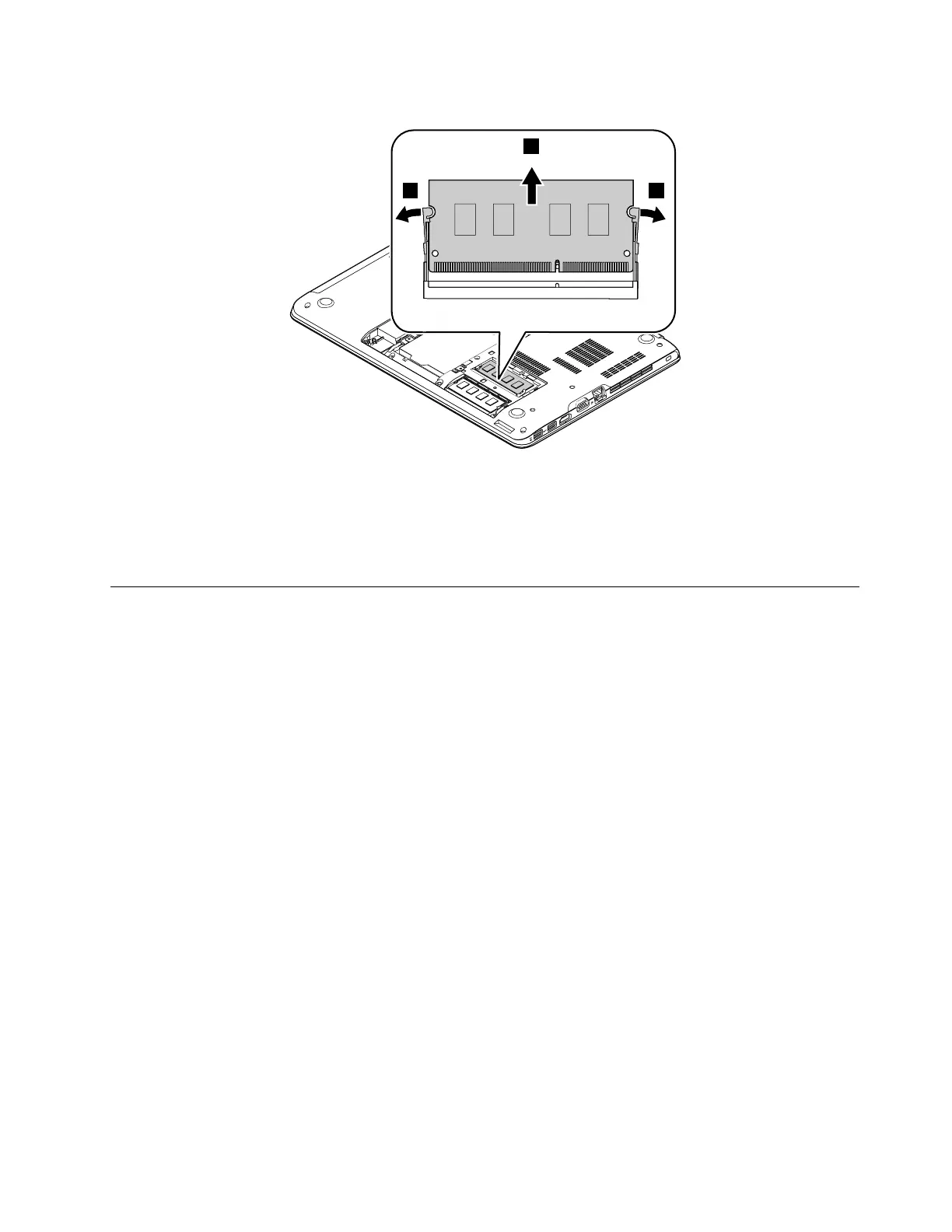

Removalstepsofthememorymodule
11
2
Wheninstalling:
Insertthenotchedendofthememorymoduleintotheslotatanangleofabout20degrees.Pressthe
memorymodulefirmly,andpivotitdownwardsuntilitsnapsintoplace.Ensurethatthememorymoduleis
firmlyinstalledintheslotanddoesnotmoveeasily.
1070Harddiskdriveassemblyorsolid-statedriveassembly
Foraccess,removetheseFRUsinorder:
•“1020Batterypack”onpage72
•“1030Largebottomcover”onpage73
Attention:
•Donotdropthedriveorapplyanyphysicalshocktoit.Thedriveissensitivetophysicalshock.Improper
handlingcancausedamageandpermanentlossofdata.
•Beforeremovingthedrive,havetheusermakeabackupcopyofalltheinformationonitifpossible.
•Neverremovethedrivewhilethecomputerisoperatingorisinsuspendmode.
Chapter9.RemovingorreplacingaFRU77
