ThinkPad E560 - 1180 Base Cover Assembly

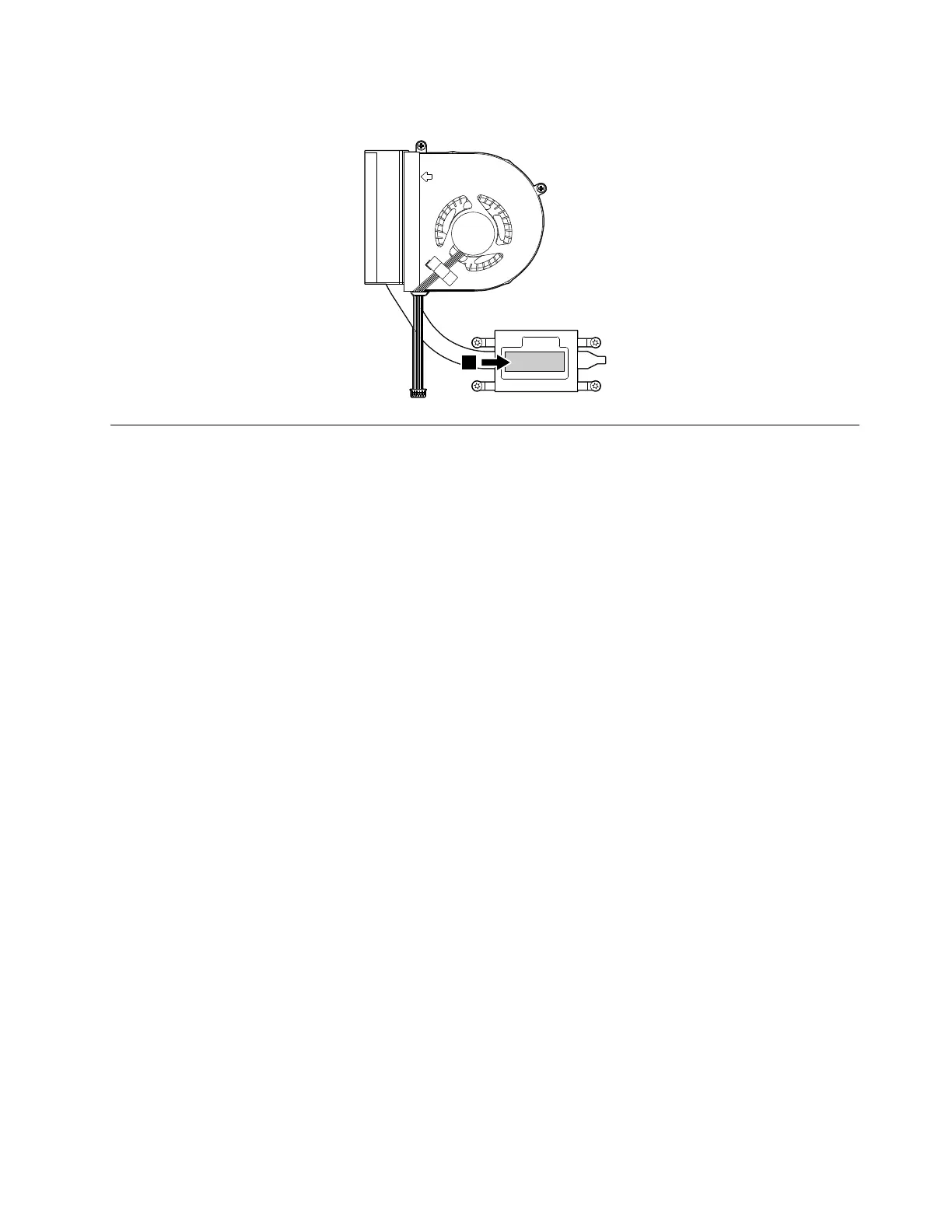

Formodelswithanintegratedthermalpipe
b
1140dc-in/USB-connectorboardwithcable
Foraccess,removetheseFRUsinorder:
•“1020Batterypack”onpage72
•“1030Largebottomcover”onpage73
•“1050Opticaldriveoroptical-drivebaybezel”onpage75
•“1070Harddiskdriveassemblyorsolid-statedriveassembly”onpage77
•“1110Keyboard”onpage81
•“1120Keyboardbezelassembly”onpage83
Removalstepsofthedc-in/USB-connectorboardwithcable
Note:Thesystemboardofthecomputerthatyouareservicingmightbedifferentfromtheoneinthe
followingillustrations.
Chapter9.RemovingorreplacingaFRU91
