Chapter 2 NOMENCLATURE AND FUNCTIONS
6. RM-210F REMOTE MICROPHONE EXTENSION
Each connected RM-210F Extension unit adds 10 Function keys to the base RM-300X.

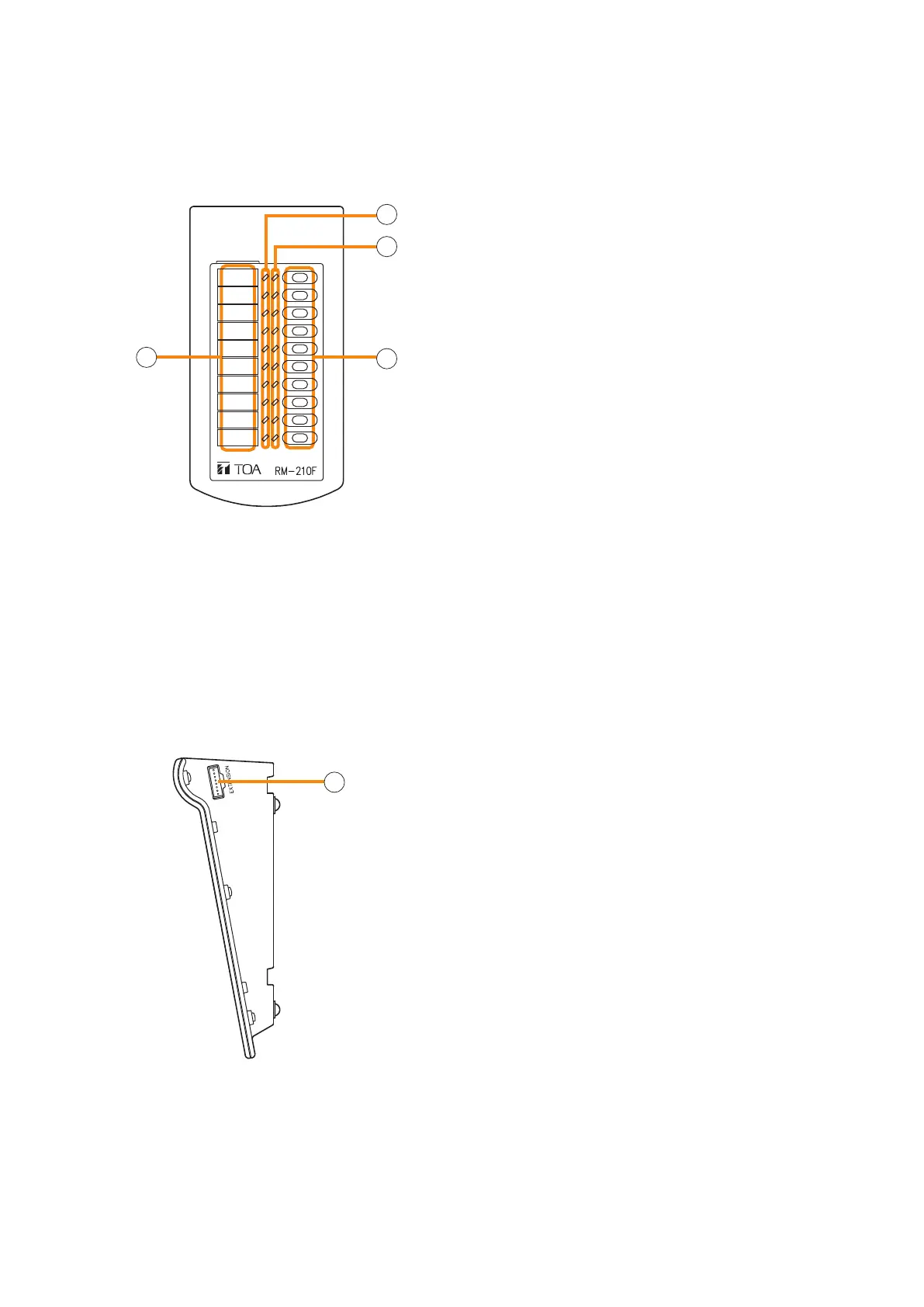

[Top]
1
3
2
4
1. Indication label insert slot
The label can be printed using the VX-3000 Setting
Software. (See the separate Setting Software
Instructions, "PRINTING LABELS FOR REMOTE
MICROPHONES.")
2. Status indicators (Red/Yellow/Green)
Light, ash, or go off depending on the current
operation state of function keys.
3. Selection indicators (Green)
Light or go off depending on the current operation
state of function keys.
4.Functionkeys(1–10)
Positioned in top-down order (1, 2 ... 10).
Pressing a specic function key executes the
function that has been assigned to that key by the
VX-3000 Setting Software.
Assignment of functions to specic keys isdone
using the VX-3000 Setting Software. (See the
separate Setting Software Instructions, "RM Event
Settings.)
5
[Side]
5. RM connection terminal [EXTENSION]
Connect the RM-300X or other RM-210F to this
terminal. (See p. 3-28.)
Note
Another same terminal is on the other side.
