3-56
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
[CONTROL OUT 1]
Use the VX-3000 Setting Software to set applications. (See the separate Setting Software Instructions, "Unit
congurationsetting,""ControlOutputPatternSettings.")
[CONTROL OUT 2]
GENERAL FAULT: [In the case of the VX-3000F set to ID "0"]
Outputs a make contact when any one of the VX-3000Fs within the VX-3000 system
detects abnormality.
Outputs a make contact when set to CPU off state by the remote microphone.
[In the case of the VX-3000F set to ID other than "0"]
Remains open (break contact) irrespective of the system status.
CPU FAULT: Outputs a make contact when set to CPU off state by the remote microphone.
CPU OFF: Outputs a make contact when set to CPU off state by the remote microphone.

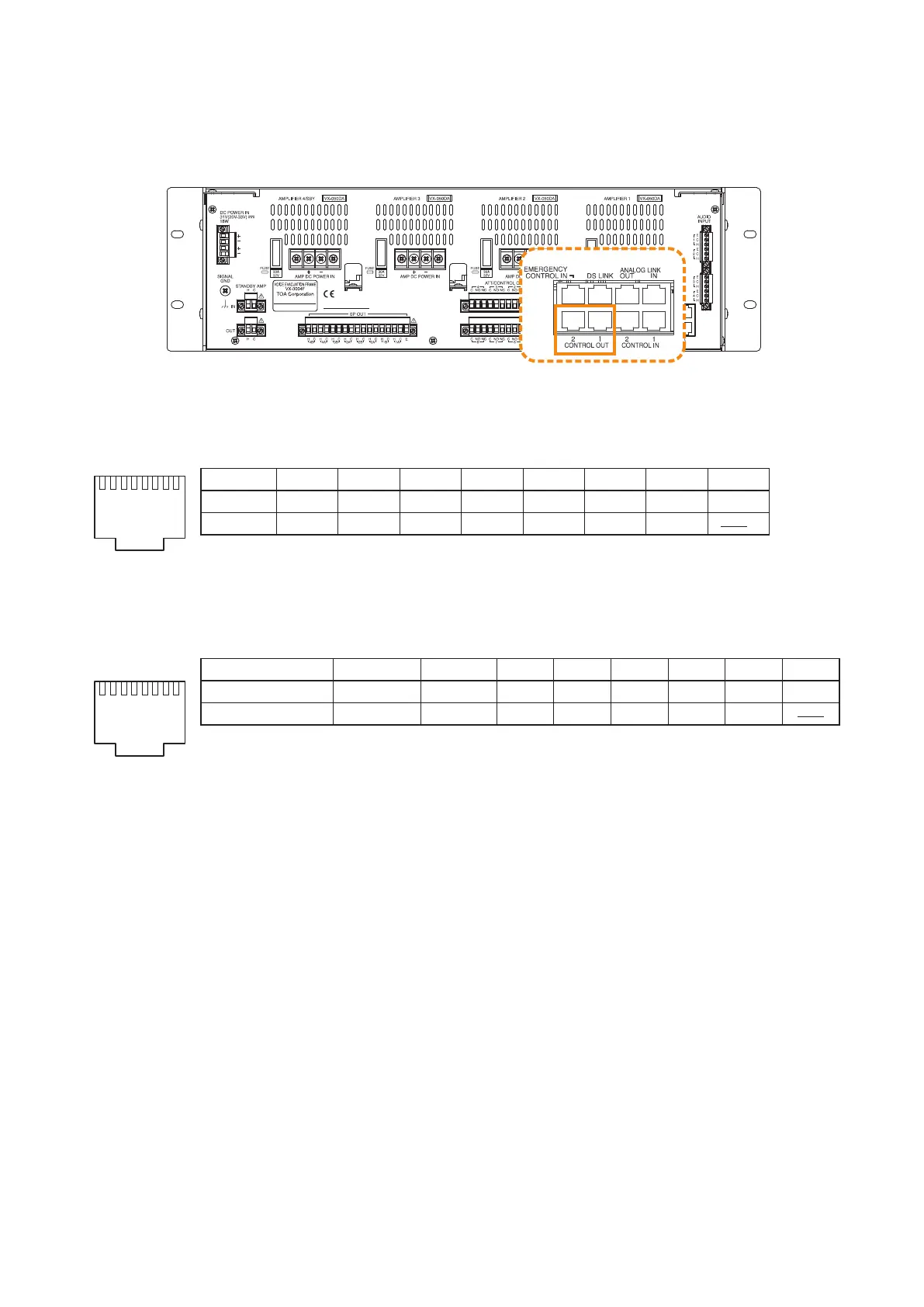

4.4. Control Output Terminal Connections
These terminals provide control outputs of relay contact type.
Control signals (make contact) are output in synchronization with unit operation.
87654321
87654321
The RJ45's pin arrangement and pin functions are shown below.
VX-3000F
Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Shield
CO_1 CO_2 CO_3 CO_4 CO_5 CO_6 CO_7 CO_8 Com
NO NO NO NO NO NO NO NO
Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Shield
GENER AL FAULT CPU FAULT CPU OFF NC NC NC NC NC Com
NO NO NO NO NO NO NO NO
