3-55
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
4.3.4. End of line
Speaker line failure can be detected with greater accuracy when the end of line units are connected.
Use the SX-200EL for the VX-3004F unit and the VM-300SV for the VX-3008F and VX-3016F units.

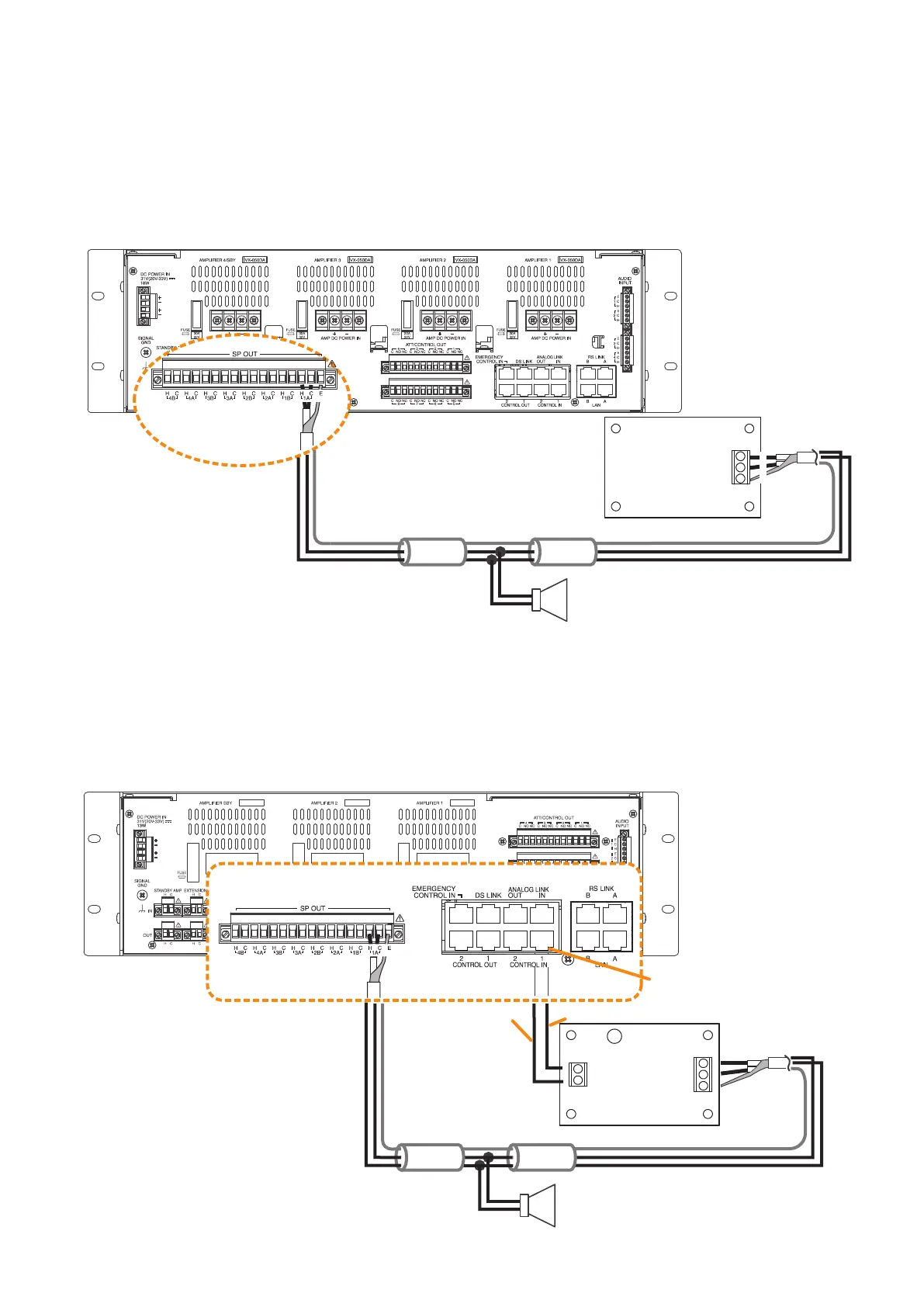

[Example 1]
ThegurebelowshowsaconnectionexampletoconnecttheSX-200ELtothespeakerline.
G
C
CN2
CN1
H
C
E
VM-300SV
Shield Shield
C
CI-1
COM
H
VX-3008F
CONTROL IN 1
H
C
ShieldShield
H
C
H
C
SX-200EL
H
C
E
VX-3004F
[Example 2]
ThegurebelowshowsaconnectionexampletoconnecttheVM-300SVtothespeakerline.
Notes
• ConnecttheVM-300SVbetweeneachspeakerlineendandtheunit'scontrolinputterminal.
• WhileabroadcastisbeingmadethroughthespeakerlinewiththeVM-300SVinstalled,speakerlinefailure
function for that line cannot be performed.
• ExternalattenuatorscannotbeusedinthesystemwiththeVM-300SVinstalled.
