3-67
Chapter 3
INSTALLATION AND SETTING PROCEDURES (HARDWARE)
5.4. Analog Link Terminal Connections
Connecting all VX-3000F units within the system via Analog link connectors permits all-zone emergency
broadcast to be initiated from the RM-300X Remote Microphone or the RM-200SF Fireman's Microphone
through the connected lines if normal broadcasts cannot be made due to equipment failures. (See p. 3-13.)

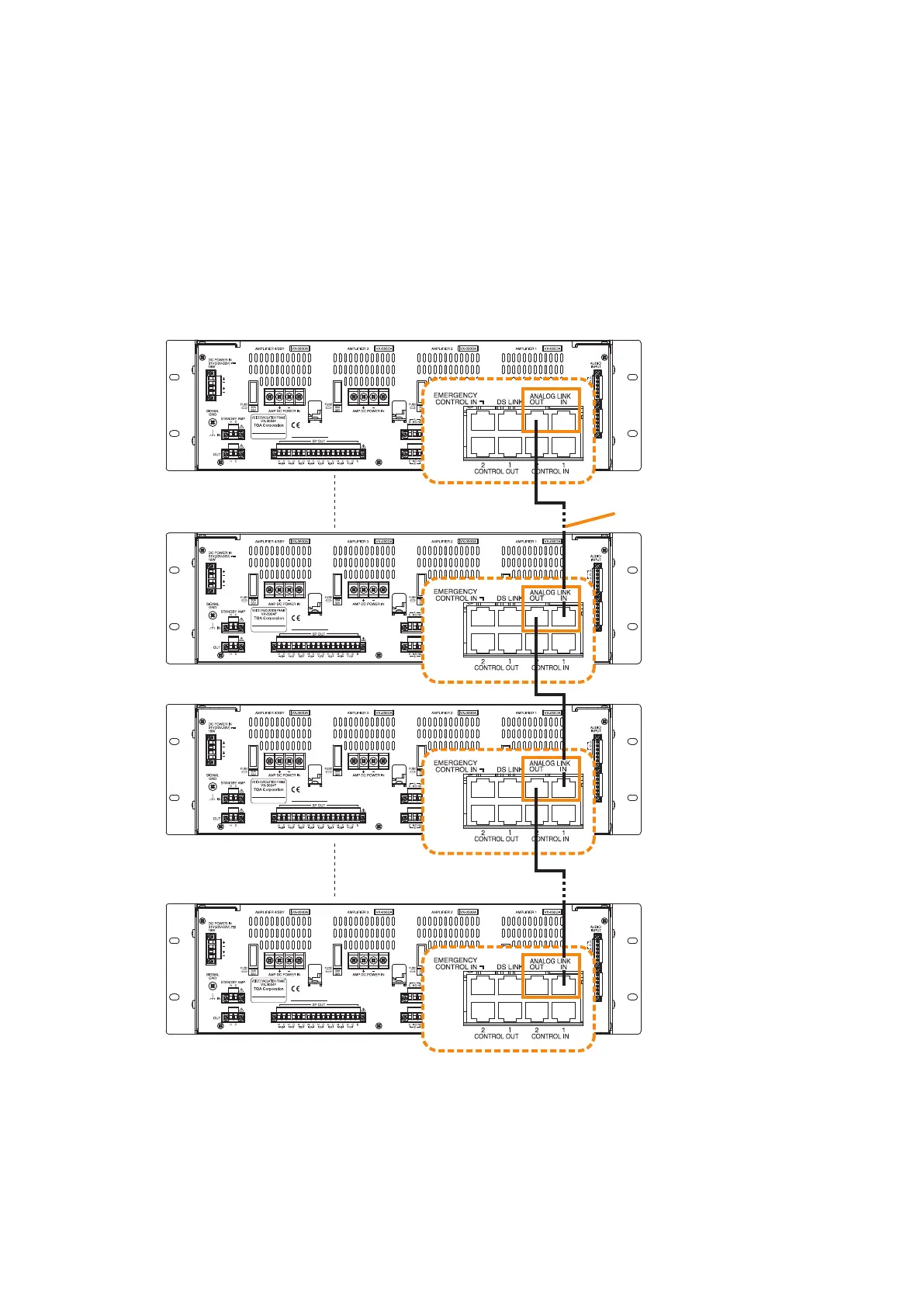

Make connections one of the VX-3000F's Analog link output connector to the Analog link input connector of the
other VX-3000F, and from the Analog link output terminal of the VX-3000F to the Analog link input terminal of
the VX-3000F.
Note
Total cable length connecting analog link terminals within the system must be kept shorter than 800 m.
VX-3000F
VX-3000F
VX-3000F
VX-3000F
STP Category 5 straight cable
(with RJ45 connectors)
To Next Page
