3-65
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
5.2. Sharing Standby Amplifier
Upto8VX-3000Funitscanshareasinglestandbyamplierinstalledinanyoneofthem.
Thestandbyampliermusthavetheratedpoweroutputequaltoorlargerthanthemaximumoutputofthe
poweramplierswhichsharethestandbyamplier.
ConnectthestandbyamplieroutputconnectoroftheVX-3000Fwiththebuilt-instandbyampliertothenext
VX-3000F'sstandbyamplierinputconnector.
Similarly,makestandbyamplieroutput/inputconnectionsforotherunitsoneafteranother.

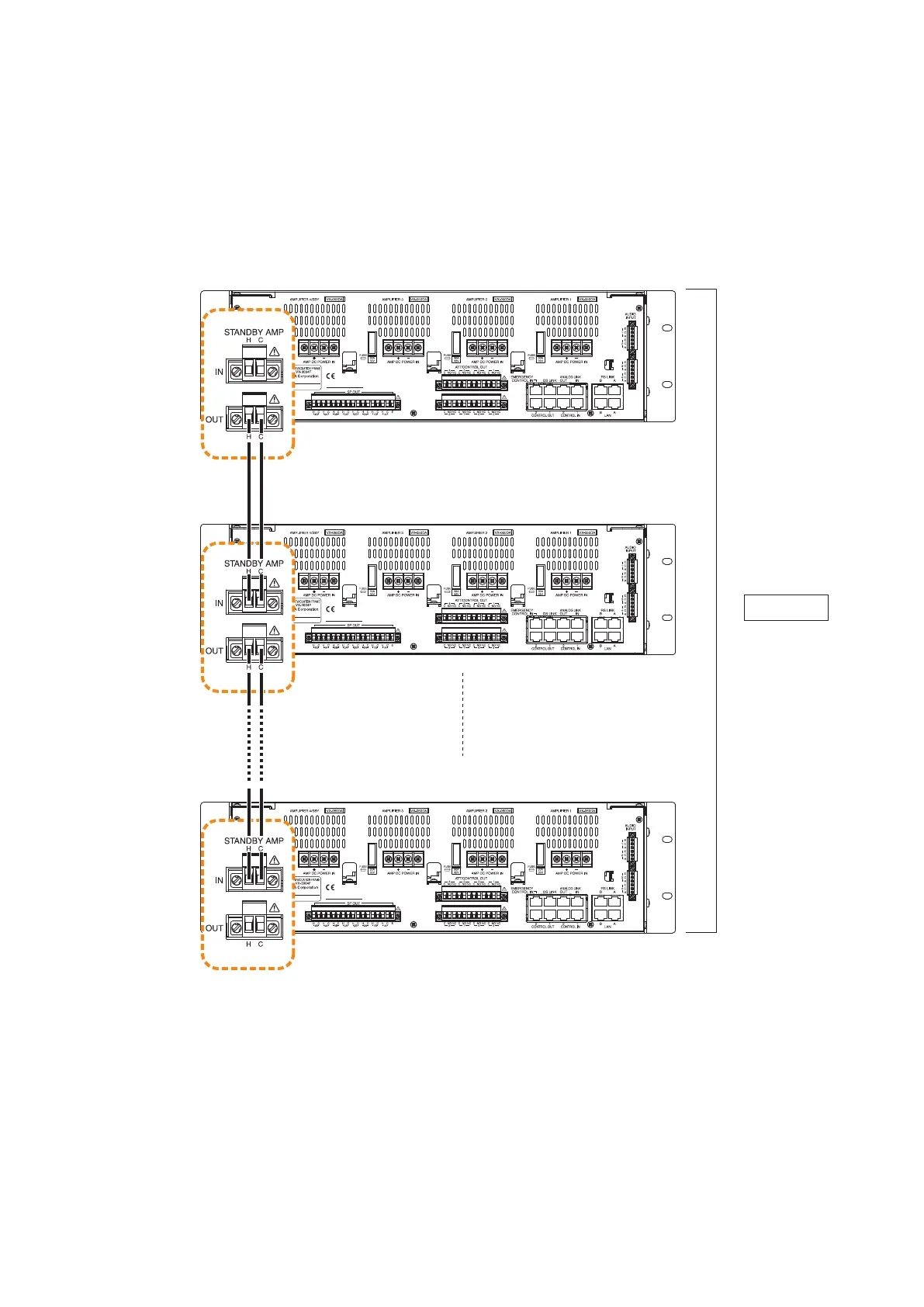

VX-3000F (With standby amplifier installed)
VX-3000F (With no standby amplifier installed)
VX-3000F (With no standby amplifier installed)
Max. 8 pcs
