Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
Step 3. Replace the RM-300X's upper case.
Note
Note the types of screws when replacing the upper case (See Step 1.)

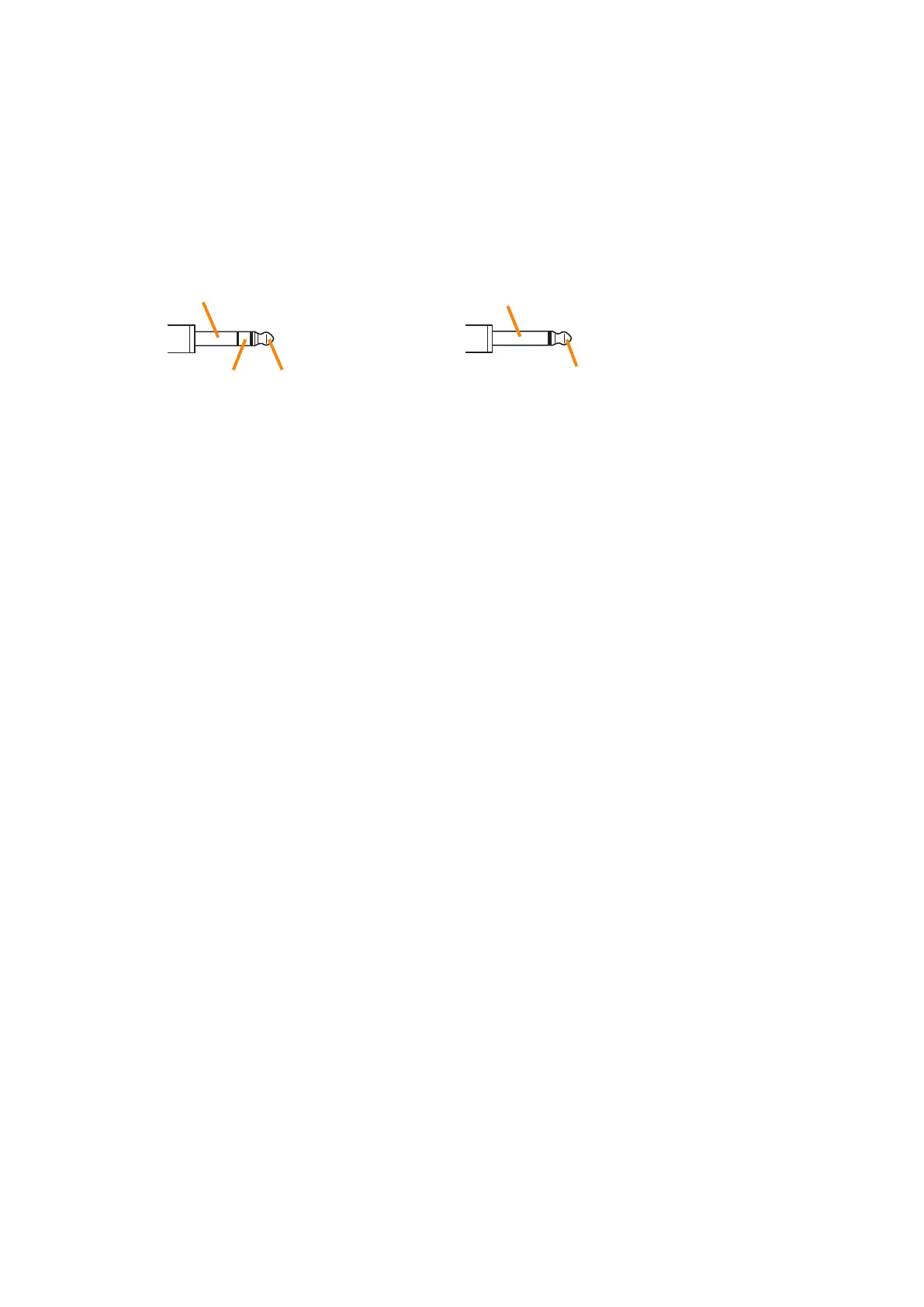

[Plug for connection to the RM-300X's external input terminal]
Connect the microphone's signal line to the tip and its shield line to the sleeve of the stereo mini plug or
monaural mini plug.
Sleeve: Ground
Tip: Signal lineRing
Sleeve: Ground
Tip: Signal line
[Monaural mini plug]
[Stereo mini plug]
Tip: The WH-4000A, YP-M101, or YP-M301 can be used for the external microphone.
