3-38
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)

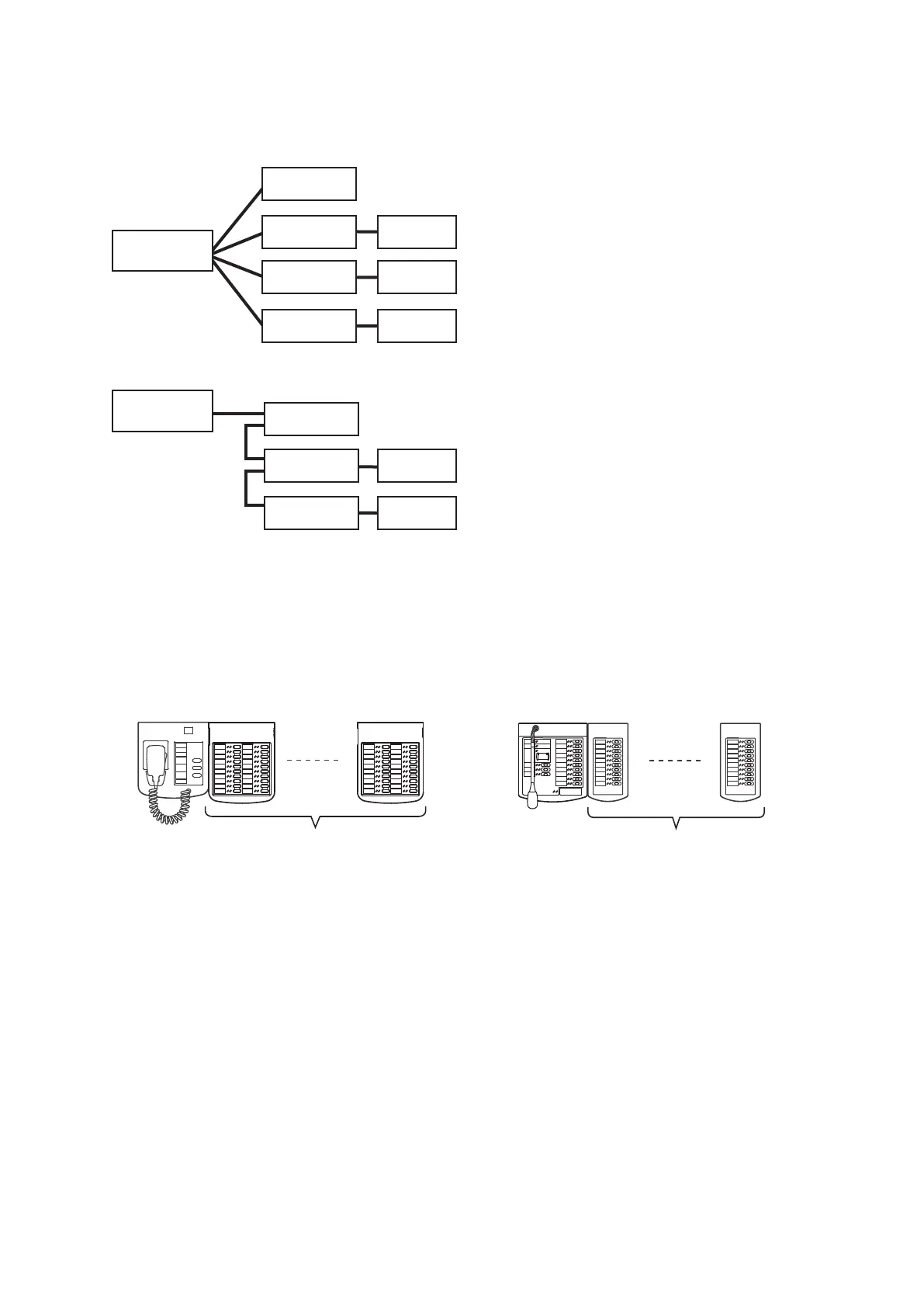

• Thenumberofzoneswitchescanbeincreasedbyconnectingtheextensionunittoeachremotemicrophone
as shown below.
(1) Up to 4 RM-320F units can be connected to the RM-200SF.
(2) Up to 7 RM-210F units can be connected to the RM-300X.
Notes
• ThenumberofremotemicrophonestowhichpowercanbesuppliedfromtheVX-3000Fislimiteddepending
onthecongurationoftheVX-3000Forremotemicrophone.(Seep. 3-39.)
• TheremotemicrophonetowhichpowercannotbesuppliedfromtheVX-3000Fneedsthepowersupplyfrom
the AD-246 AC adapter or VX-3000DS. If the remote microphone is required to be operated even during
power failure, power needs be supplied from the VX-3000DS. (See p. 3-39.)
RM-200SF
RM-320F
(1) Up to 4 units connectable
RM-300X RM-210F
(2) Up to 7 units connectable
• Whenconnecting2ormoreremotemicrophonestoaRSLINK,makebranchwiringusingtheRM-200RJ
Terminal Unit or the Wall mount bracket unit supplied with the RM-200SF.
(When connecting 2 or more remote microphones: Example 1)
(When connecting 2 or more remote microphones: Example 2)
VX-3000F
RM-300X
RM-300X
RM-300X
RM-200RJ
RM-200SF
RM-200RJ
RM-200RJ
VX-3000F
RM-300X
RM-300XRM-200RJ
RM-200SF
RM-200RJ
