Fuel System
4-18
4st 9.9/15/20 2008
6) Assembling Carburetor

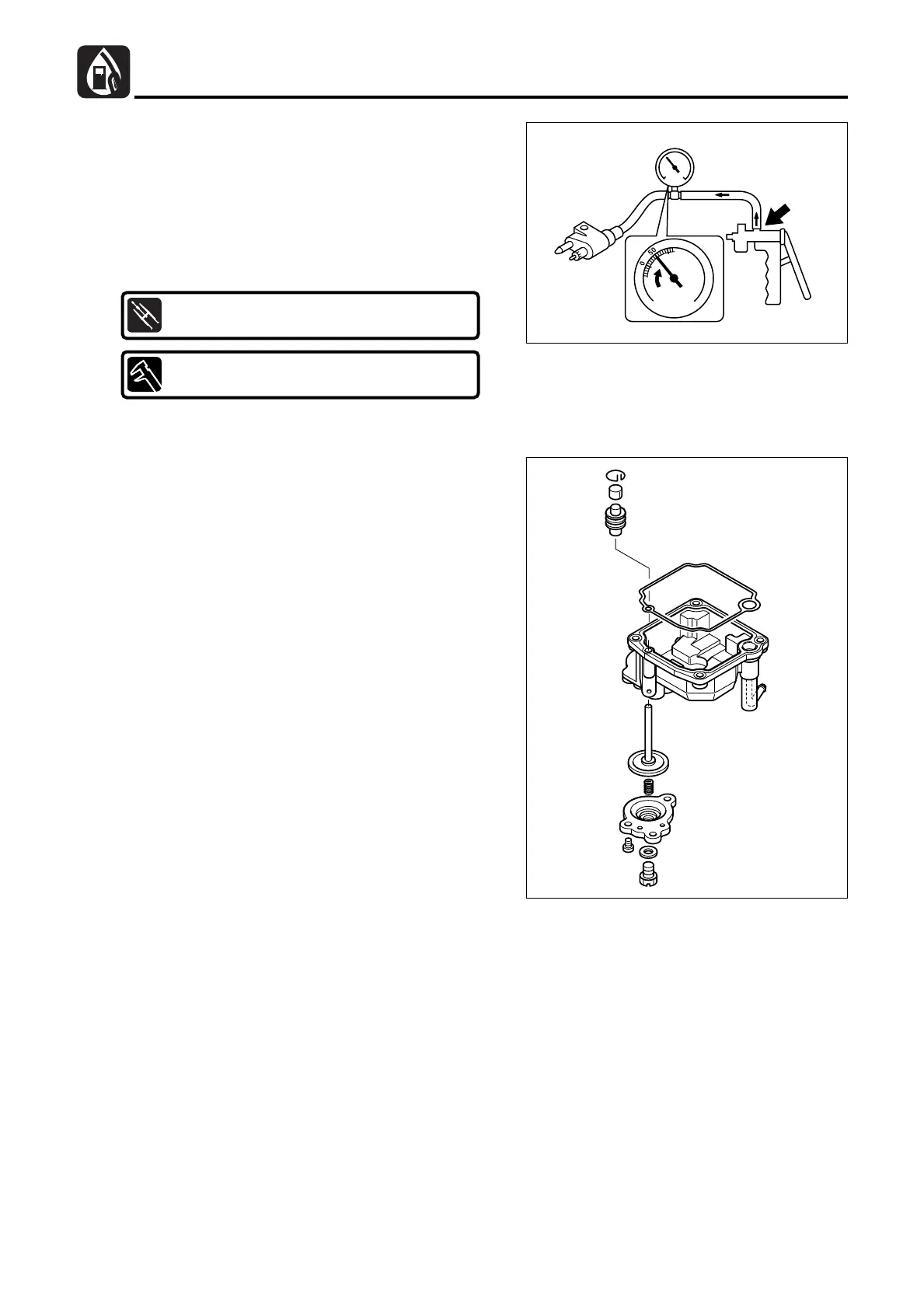

1. Attach diaphragm and diaphragm cover of accelerator pump,
and secure them.
5) Inspection of Fuel Connector
1. Check fuel connector for crack and damage.
2. Connect vacuum/pressure gauge to outlet of fuel connector.
3. Apply specified pressure, and check if the pressure is
maintained for 10 seconds. Replace if necessary.
Vacuum/Pressure Gauge :
P/N. 3AC-99020-0
Specified Pressure :
0.029 MPa (4 psi) [0.3 kgf/cm
2
]
