4
4-11
4st 9.9/15/20 2008
4. Inspection Items

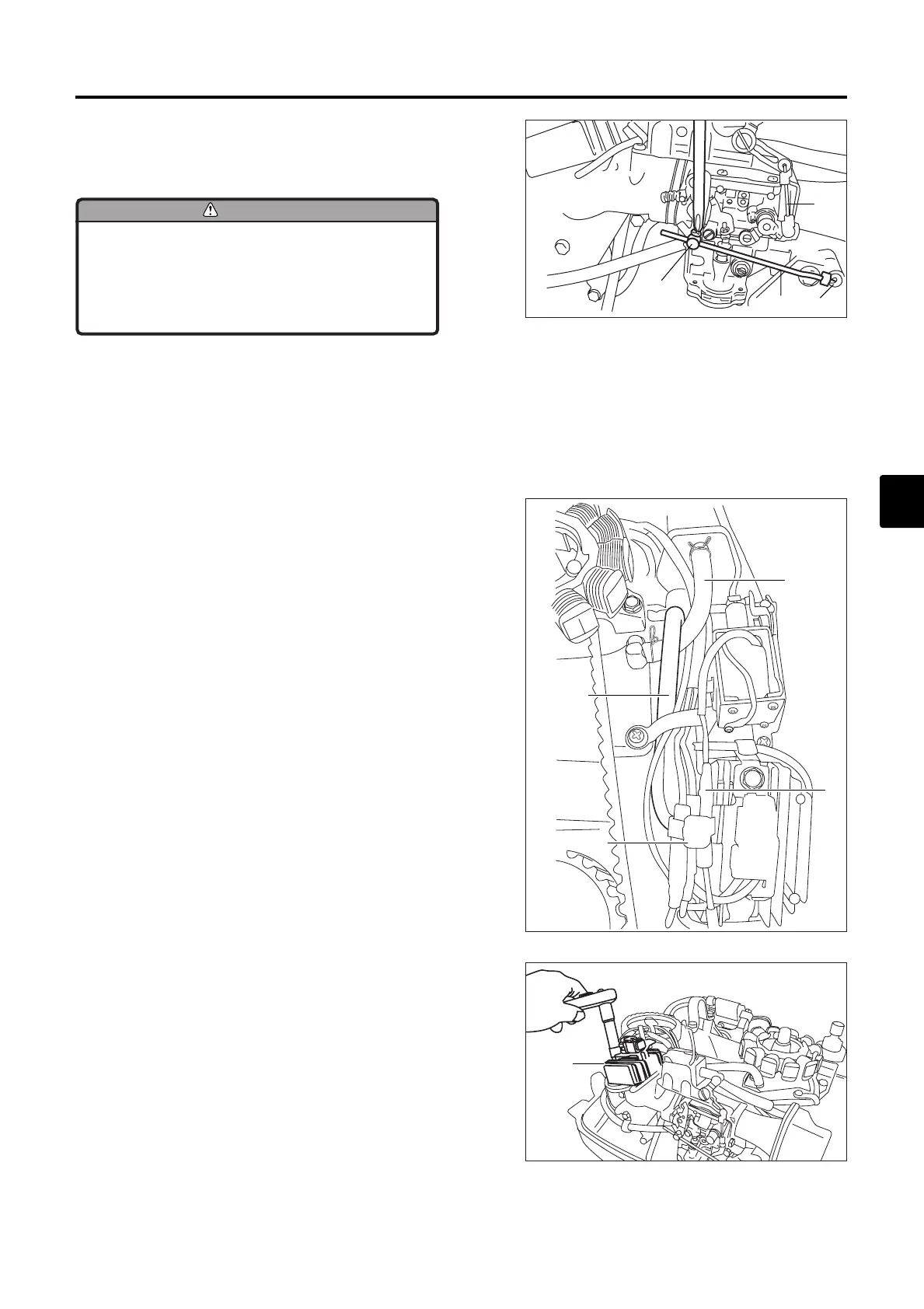

1) Removing Carburetor
7
6
8
5
9
8. Remove rectifier 9.
Before working on fuel system, make sure
to disconnect battery cables from the
battery, or electric sparks can occur,
possibly igniting fuel or making fuel to
explode.
Remote control model
1. Loosen throttle link rod set screw 1. Remove throttle link rod
2 from link drum 3.
2. Separate choke link rod 4 from carburetor.
3. Remove cable 5 for attaching solenoid wire of intake
silencer head hose.
4. Disconnect choke solenoid wire 6 from engine wireharness.
5. Remove intake silencer head hose 7 from intake manifold.
6. Remove carburetor vent hose 8 from carburetor.
7. Disconnect connector of wiring from rectifier.
E_MFS20C_ch04_090105.qxd 09.1.20 5:24 PM ページ 11
