2-2
Service Data
4st 9.9/15/20 2008
Item Type Unit
F9.9/15/20C
mm in
A mm 375 14.76
S mm 690 27.17
B L mm 840 33.07
UL mm 967 38.07
S mm 413 16.26
C L mm 562 22.13
UL mm 689 27.13
D mm 370 14.57
E mm 620 24.41
F mm 120 4.72
G mm 470 18.50
H mm 510 20.08
I
Mechanical
mm 320 12.60
J mm 40-60
1.57-2.36
K mm 425 16.73
S mm 740 29.13
L L mm 880 34.65
UL mm 915 36.02
M
MF/EF mm 365 14.37
EP mm 345 13.58
N mm 325 12.80
O mm 210 8.27
P mm 480 18.90
Q deg. 130
R deg. 9
S
Mechanical
deg. 35
T deg. 70
U mm/in 140 5.51
Y mm/in 15 0.59
Trim angle
deg.
5°-25
(Position)
(6)

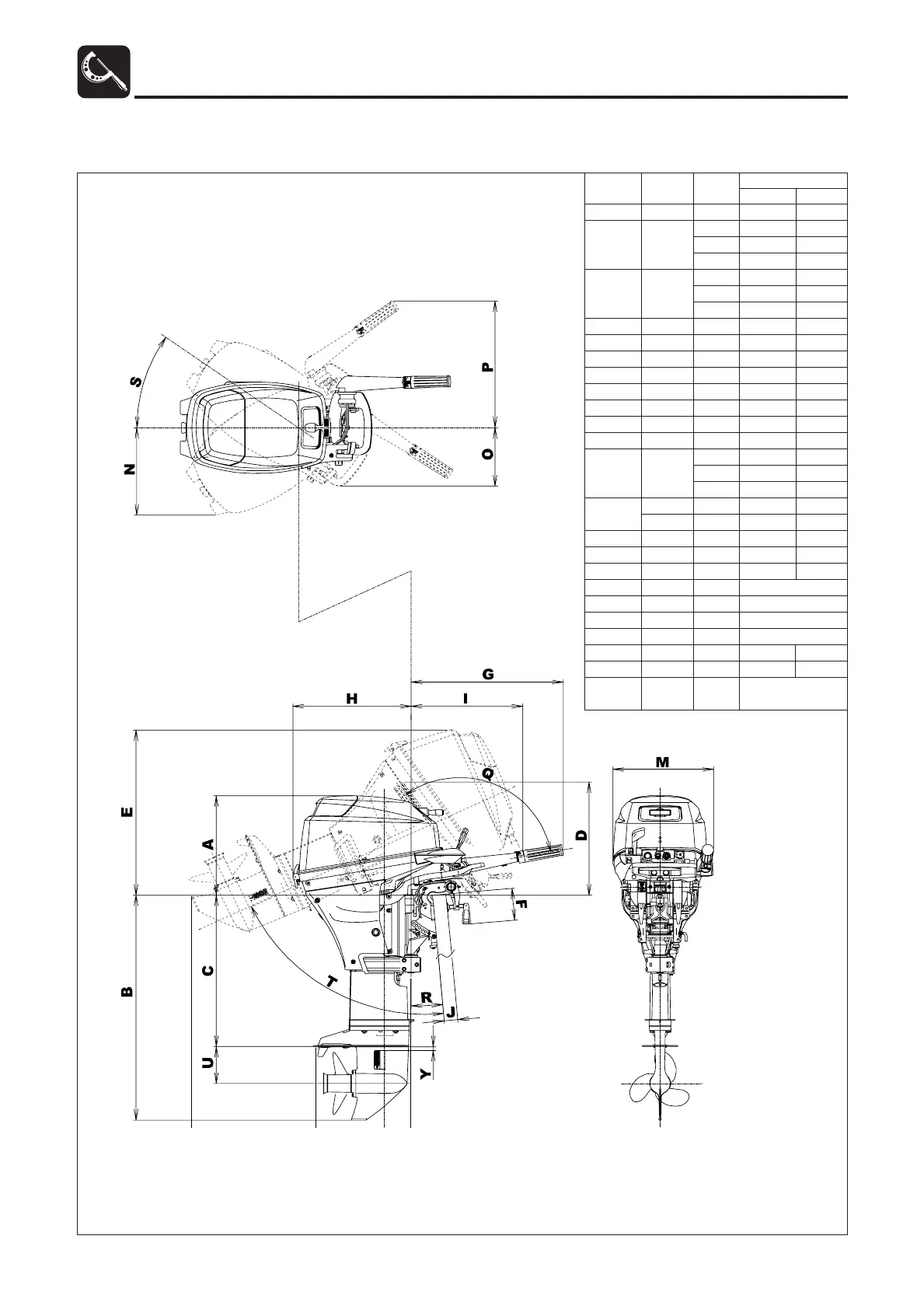

1. Outline Dimensions
1) Engine Outer Dimensions
