5-66
Power Unit
4st 9.9/15/20 2008

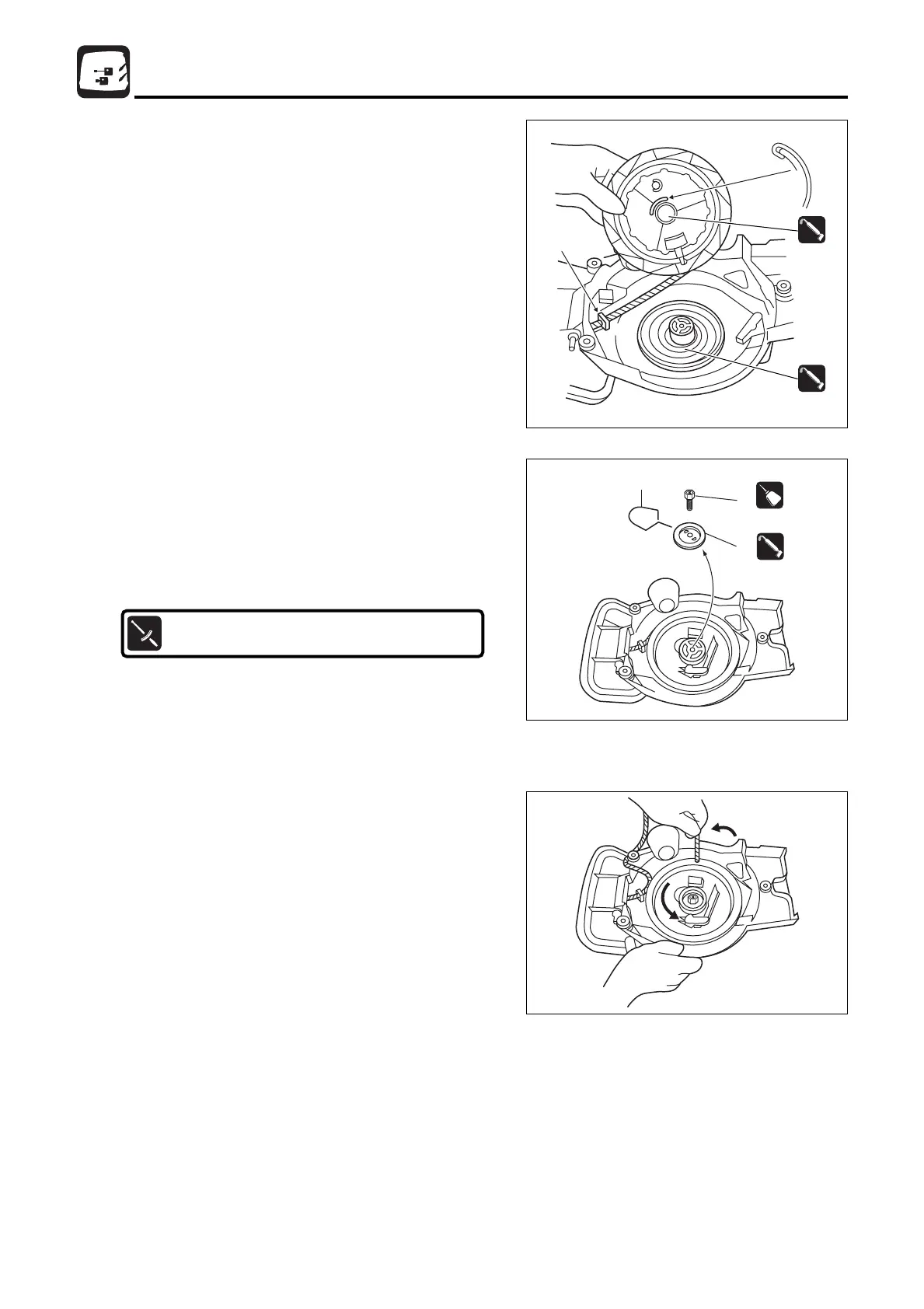

49) Installation of Recoil Starter
Reverse disassembly procedure to assemble by taking
care of the following matters.
When setting starter spring into starter case, face starter
spring outer edge hook to the right and set it into peripheral
cut of starter case.
Run starter rope through rope guide 1.
When installing reel into starter case, set projection of reel
in the internal hook of starter spring.
Apply cold resistance lithium grease to the following parts.
· Starter Spring
· Reel Center Hole
· Ratchet
· Starter Lock
· Friction Plate
Apply "Three Bond" 1342 to starter shaft bolt, and tighten
the bold to specified torque.
1
LIT
GREASE
LIT
LIT
GREASE
LIT
Starter Shaft Bolt :
6 N · m (4 lb · ft) (0.6 kgf · m)
When applying tension to starter spring, turn reel 4 to 5
times to direction to which the reel rotates when pulling out
starter rope (counterclockwise). When applying tension to
starter spring, turn reel 4 to 5 times to direction to which the
reel rotates when pulling out starter rope
(counterclockwise).
Perform shift operation to check that recoil starter is locked
at other than neutral (N) position.
1 Rope Guide
TB
13421342
1342
4
2
3
LIT
GREASE
LIT
2 Friction Spring
3 Friction Plate
4 Starter Shaft Bolt
