Bevel Gear B Nut Socket 2 :
P/N. 345-72228-0
· Before removing or installing propeller, be
sure to disconnect battery cables from
battery and remove stop switch lock plate.
· When removing or installing propeller, do
not handle propeller with bare hands.
· Put a piece of wooden block between anti-
cavitation plate and propeller to prevent
rotation of propeller.
TB
13421342
1342
TEF
GREASE
TEF
A
1

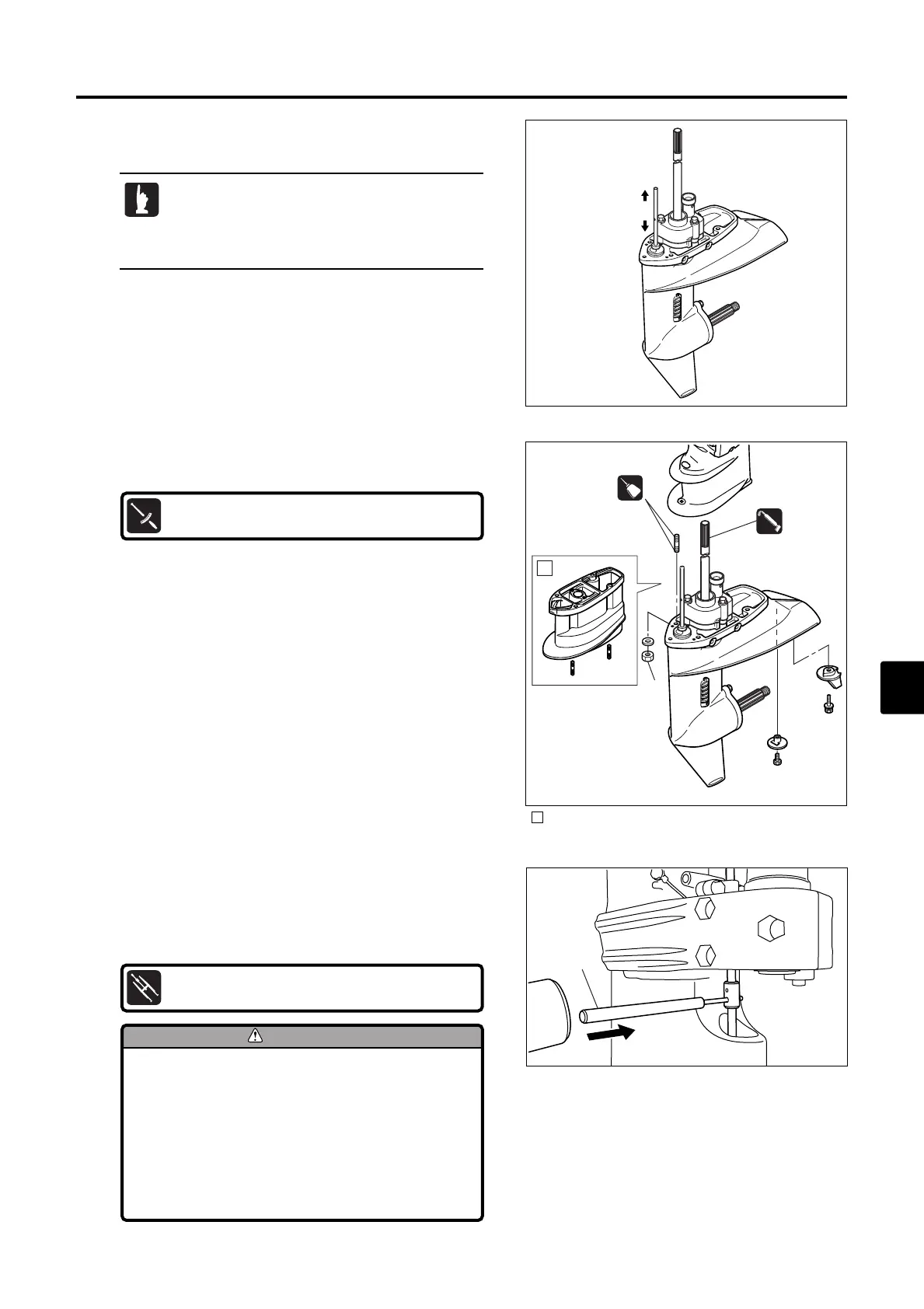

37) Installation of Lower Unit
1. Set cam rod to reverse (R) position.
2. Attach lower unit ass'y to drive shaft housing, and tighten
lower unit installation bolts (nuts) 1 to specified torque.
Gear Case Installation Bolt (Nut) 1 :
13 N · m (9 lb · ft) [1.3 kgf · m]
"UL" Transom Model
Connect water pipe securely. Move flywheel a
little or shift gear into reverse (R), install
propeller, and turn propeller shaft
counterclockwise to engage spline.
A
3. Set both engine side and gear case side gear shifts to
neutral (N).
4. Connect shift rod and cam rod with new spring pin.
