7-3
4st 9.9/15/20 2008
7

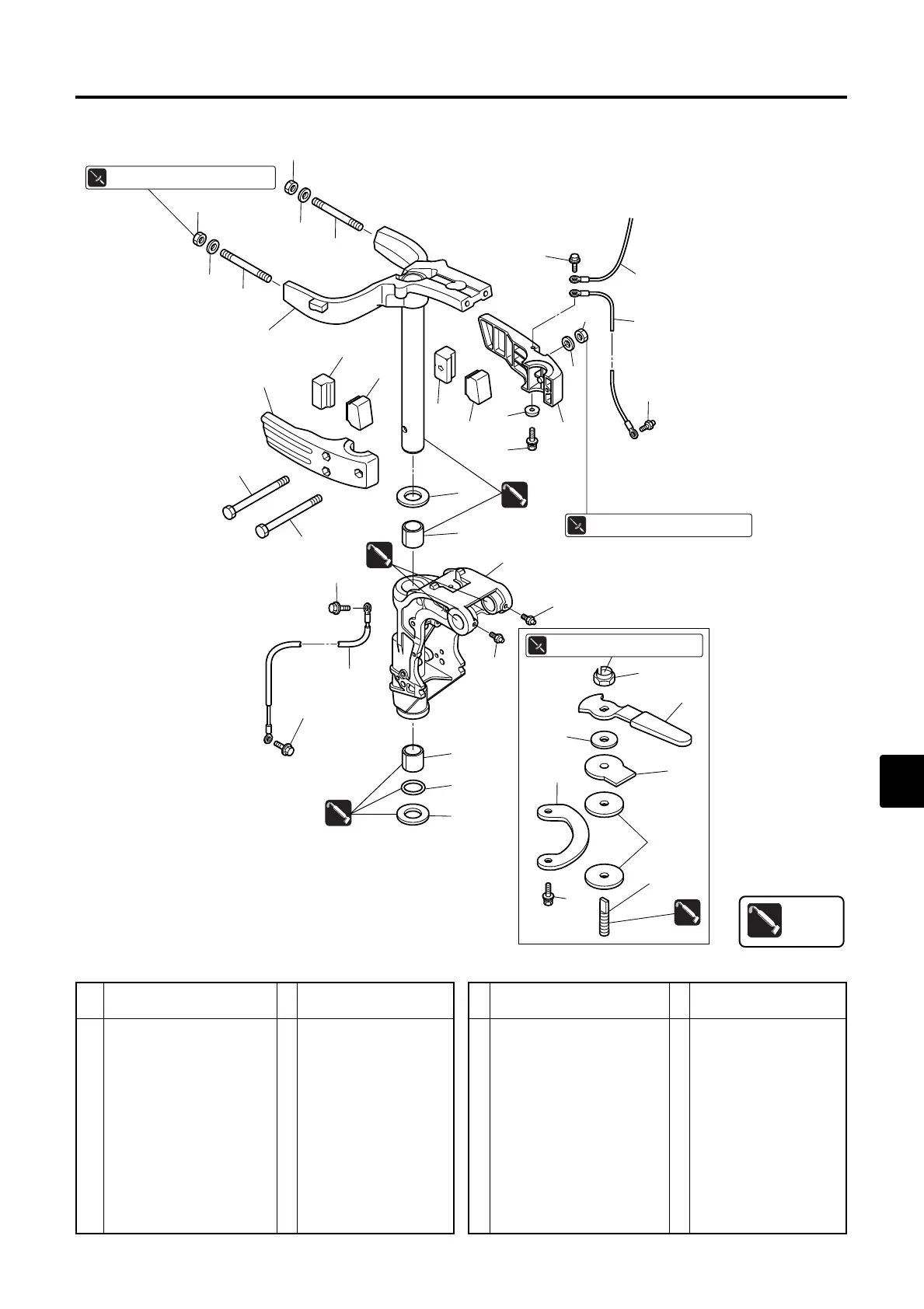

Swivel Bracket
1 Swivel Bracket 1
2 Steering Shaft Ass'y 1
3 Busing, 28-31-35 2
4 Thrust Plate, 28.5-48-1 2
5 O-Ring, 3.5-25.7 1
6 Grease Fitting 3
7 Damper (Lower) 2
8 Rubber Mount (Lower) 2
9 Mount Bracket (Right) 1 Starboard
10 Mount Bracket (Left) 1 Port
11 Bolt 1
12 Bolt 2
13 Nut 3
14 Washer, 8.1-16-1.5 3
15 Stud Bolt, 10-95 2
Ref.
No.
Description Remarks
Q'ty
16 Nylon Nut 2
17 Washer 2
18 Anode 1
19 Bolt 1
20 Ground Cable 3 L=130
21 Bolt 3
22 Bolt 1 Clamp Bracket "R"
23 Co-Pilot Handle 1 for MF & EF
24 Washer, 8.1-20-0.8 1
25 Co-Pilot Bolt 1
26 Nylon Nut (2T), M8-P1.25 1 for MF & EF
27 Co-Pilot Plate 1
28 Bolt 2
29 Co-Pilot Washer 1
30 Co-Pilot Disk 2 for MF & EF
Ref.
No.
Description Remarks
Q'ty
P/L Fig. 18
GREASE
OBMOBM
OBM
