4. Attach pump case liner 5 to pump case (upper) 6, and
apply grease to interior of pump case liner 5.
Bring pump case liner projection a to pump
case (upper) groove b.
OBM
1
2
GREASE
OBMOBM
OBM

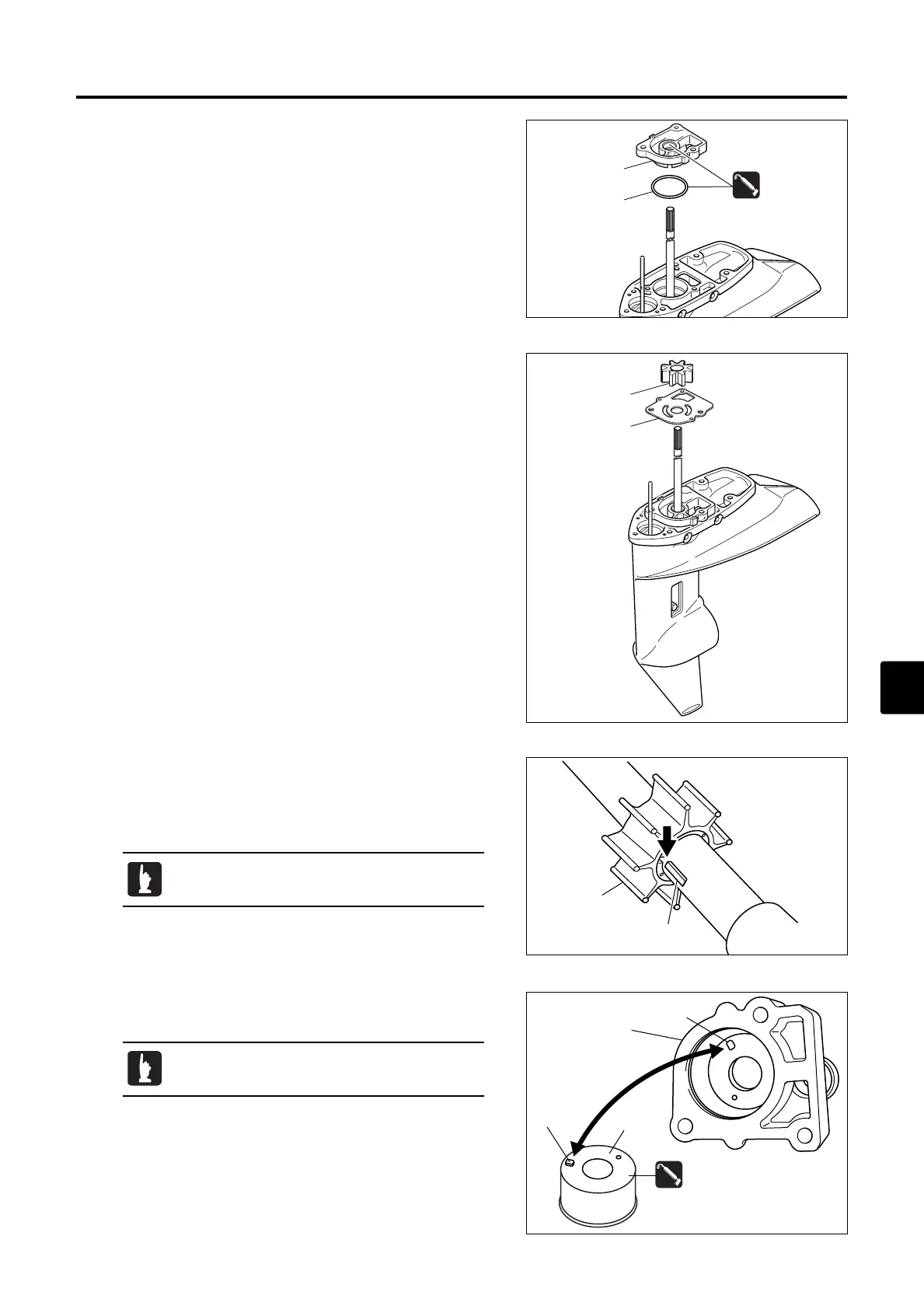

35) Reassembly of Pump Case (Lower)
1. Remove pump case (lower) and apply OBM grease to oil
seal.
2. Attach new O-ring 1 and pump case (lower) 2.
1
2
4
3
36) Assembly of Water Pump
1. Assemble water pump guide plate 1 and impeller 2.
2. Use plastic hammer to install key 3 to drive shaft.
3. Bring impeller 4 groove to key 3 and install impeller to
drive shaft.
When reusing impeller, install it so that it rotates
in original direction.
