TOHATSU MFS 20C - Electric Parts

8
8-9
4st 9.9/15/20 2008

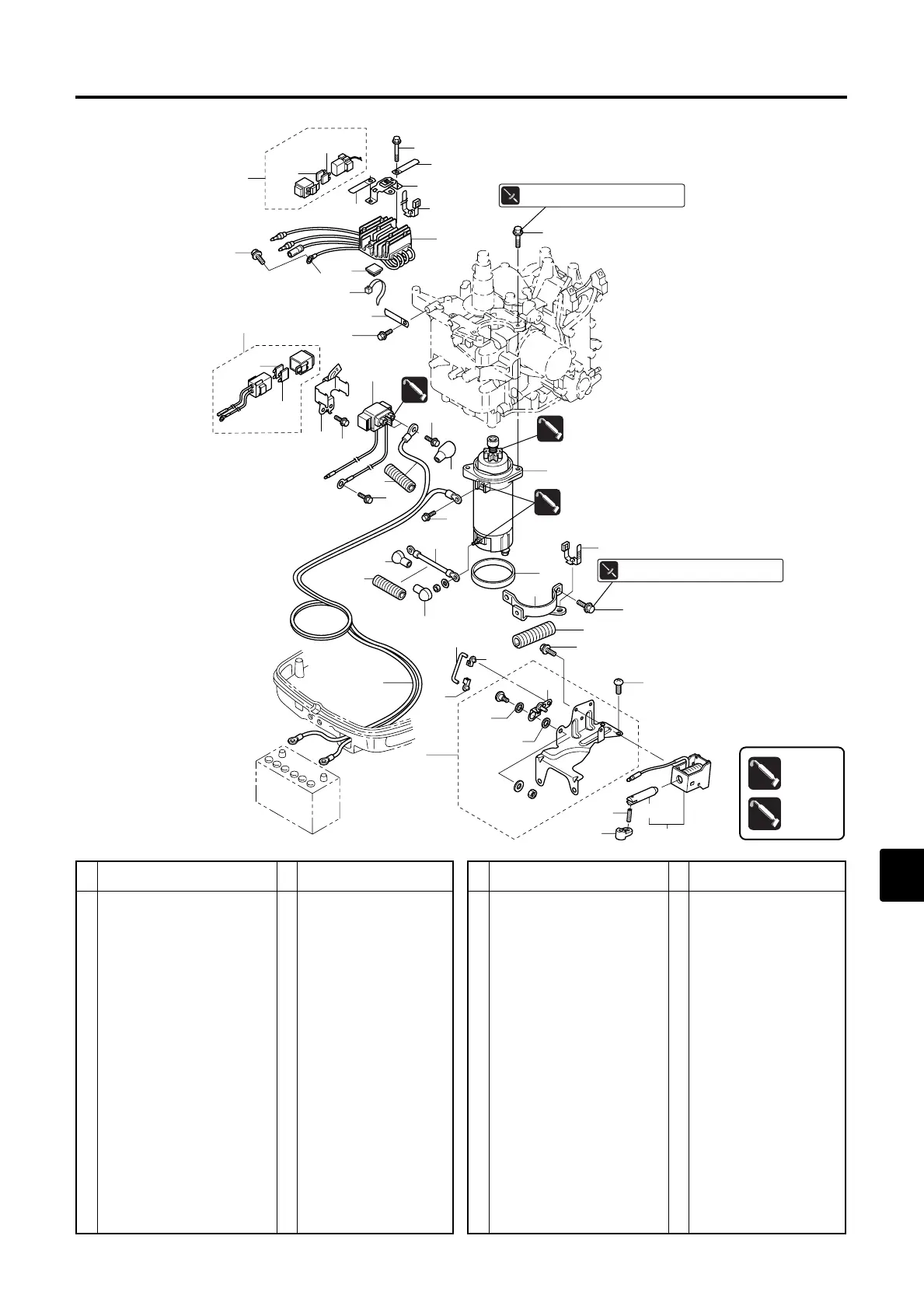

Electric Parts
P/L Fig. 9
13 N·m (9 lb·ft) [1.3 kgf·m]
13 N·m (9 lb·ft) [1.3 kgf·m]
GM
SOC
1342
INS
INS
GREASE
OBM
GREASE
OBMOBM
OBM
1741
INS
INS
GREASE
25
25-1
25-1
9
11
11
26
27
10
12
13
28
29
24
24-1
24-1
8
9
6
16
7
7
2
18
17
19
22
20
21
35
3
4
27
15
36
36
34
34-3
34-2
34-1
37
31
5
23
32
33
30-1
30
1
14
INS
GREASE
INS
GREASE
OBMOBM
OBM
1 Starter Motor 1 for EP & EF
2 Bolt 2
3 Starter Motor Band 1
4 Starter Motor Damper 1 for EP & EF
5 Bolt 2 or 910113-5818
6 Starter Solenoid 1
7 Bolt 3 M6 L=10mm
8 Starter Solenoid Bracket 1 for EP & EF
9 Bolt 2 M6 L=12mm
10 Rectifier 1
11 Clamp, 6.5-47.5P 2 for EP & EF
12 Band Mount 1
13 Lead Wire Band, 203 1
14 Bolt 2 for EP & EF M6 L=25mm
15 Battery Cable 1 L=2750
16 Protector 1 L=320
17 Bolt 1 M6 L=12mm
18 Terminal Cap 1
19 Starter Cable 1 L=270
20 Protector 1 L=180
21 Terminal Cap 1
22 Terminal Cap 1 for EP & EF
23 Protector 1
24 Fuse Cable 1 L=185
Ref.
No.
Description Remarks
Q'ty
24-1 Fuse (20A) 2
25 Fuse Cable 1 L=720
25-1 Fuse (20A) 2 for EP & EF
26 Fuse Holder Bracket 1
27 Lead Wire Band, 135 2
28 Clamp, 6.5-120P 1 for EP
29 Bolt 1 M6 L=12mm
30 Choke Solenoid 1
30-1 Plunger 1 for EP
31 Screw 4 M4 L=6mm
32 Spring Pin, 3-12 1
33 Choke Solenoid Hook 1 for EP
34 Choke Solenoid Bracket Ass'y 1
34-1 Choke Lever 1
34-2 Bushing, 8.1-15-2.9 1 for EP
34-3 Washer, 8.1-15-1.3 1
35 Link Rod 1
36 Rod Snap, 1.5-2 2 for EP
37 Screw 2 M5 L=10mm
Ref.
No.
Description Remarks
Q'ty
