TOHATSU MFS 20C User Manual

6-4
Lower Unit
4st 9.9/15/20 2008
18
20
19
17
1
1-1
5
3
5
4
8
7
6
10
9
2
2
11
12
13
14
21
22
16
15
5
3
14N·m (10 lb·ft) [1.4 kgf·m]
TB
13423421342
1342
GREASE
OBMOBM
OBM
OIL
GEARGEAR
GEAR
OIL
GEARGEAR
GEAR
OIL
GEARGEAR
GEAR
TB
13421342
1342
19 N·m (14 lb·ft) [1.9 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]

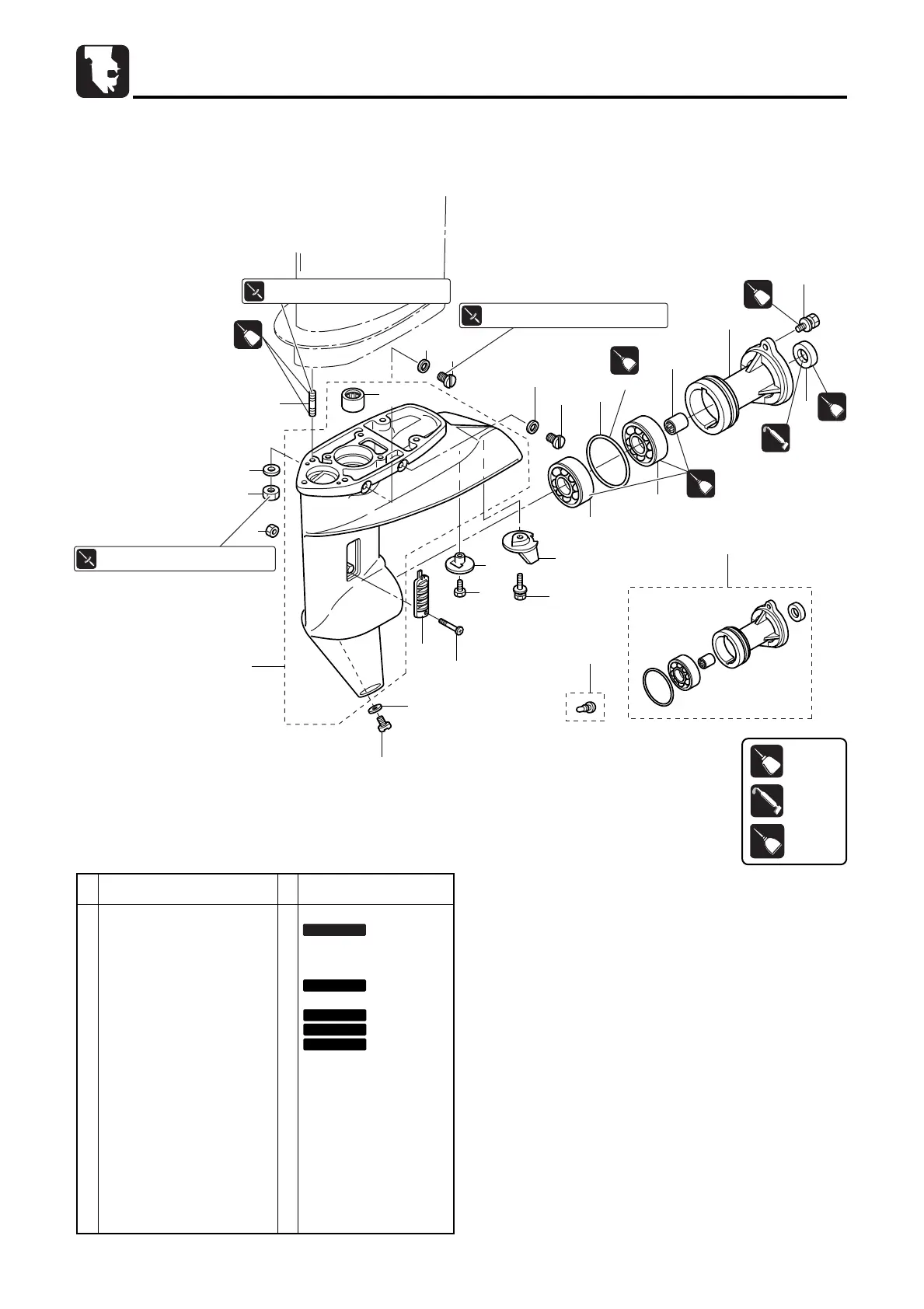

2.Parts Layout
Gear Case
1 Gear Case 1
1-1 Needle Bearing 1
2 Ball Bearing, 6205HS 2
3 Oil Plug 2
4 Water Plug 1
5 Gasket, 8.1-15-1 3
6 Propeller Shaft Housing 1
7 Needle Bearing, 17-24-20 1
8 O-Ring, 2.4-59.6 1
9 Oil Seal, 17-30-9 1
10 Bolt 2
11 Trim Tab 1
12 Bolt 1
13 Sub Water Strainer 1
14 Screw 1
15 Water Strainer 2
16 Screw 1
17 Nylon Nut, 4P-0.7 1
18 Stud Bolt 4
19 Nut 4
20 Washer, 8.1-16-1.5 4
21 Propeller Shaft Housing Ass'y 1
22 Sub Water Pipe Plug 1 Option
Ref.
No.
Description Remarks
Q'ty
OIL
GEARGEAR
GEAR
GREASE
OBMOBM
OBM
TB
13421342
1342
P/L Fig. 14
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
E_MFS20C_ch06_081216.qxd 09.1.20 5:27 PM ページ 4
